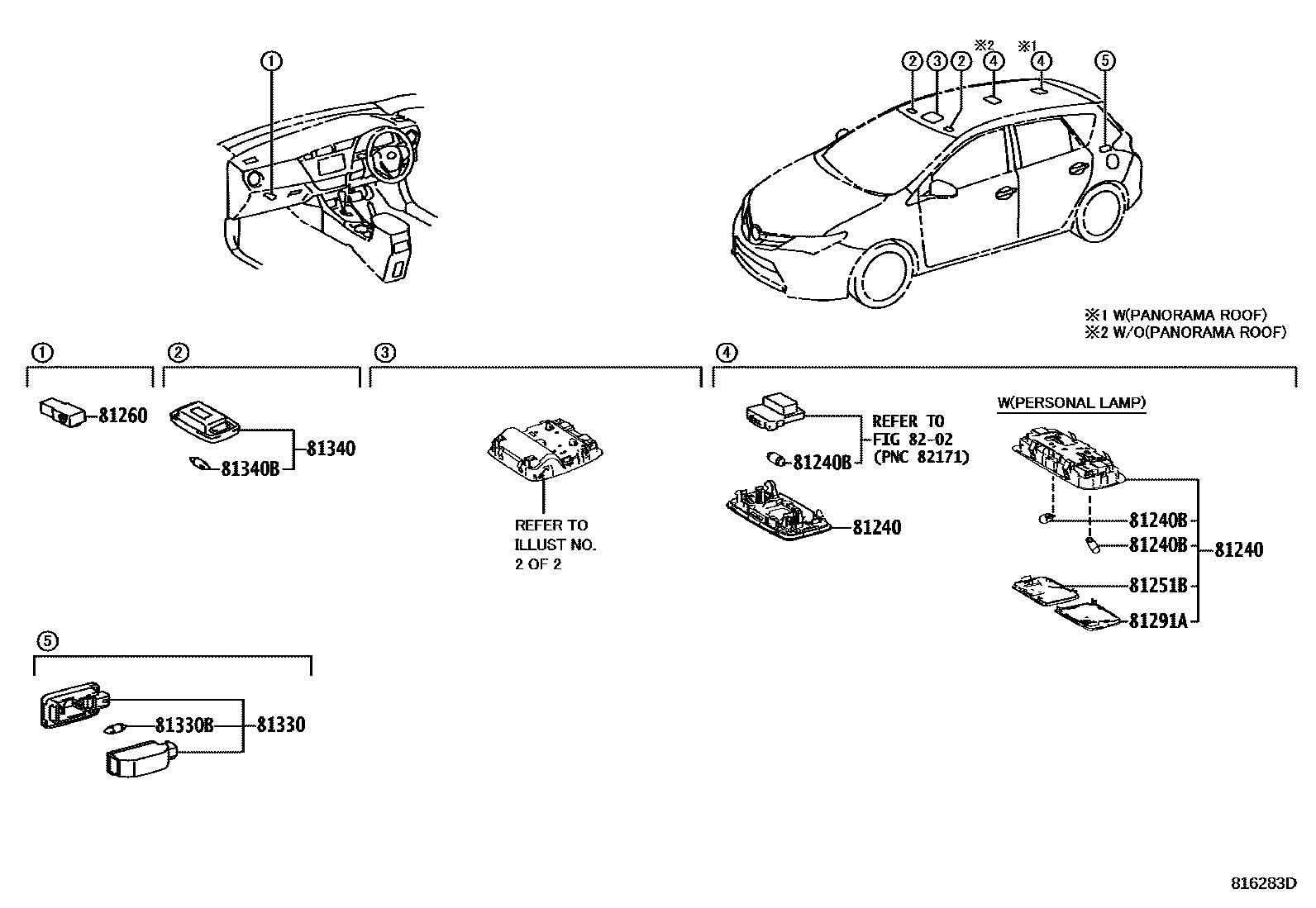

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iNRE180,ZRE18#..D201208-201805

MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2#

sub81240-35020

sub81240-42020

main81240-35020-B0iZRE182..N201208-201805

LT.GRAY,TRIM2#

sub81240-35020

sub81240-42020

main81250-05030-B0iZRE18#..N201208-201805

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-11062iZRE182;ZRE181,ZWE186..N201208-201503

12V 8W

main90981-14011iNRE180,ZRE18#..D201208-201503

12V 8W,MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)

main90981-14011iNRE180,ZRE18#..D201208-201503

12V 8W

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iZRE18#..N201208-201503

81260LAMP ASSY, GLOVE BOX

main81080-48010iNRE180,ZRE18#201208-201711

main81080-52050iNRE180,ZRE18#,ZWE186201712

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iZRE18#..N201208-201503

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-12060iNRE180,ZRE18#201208-201503

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13050iNRE180,ZRE18#201208-201503

12V 5W

81340LAMP ASSY, VANITY

main81340-33140-B0iZRE18#..N201208-201805

LT.GRAY,TRIM2#

sub81340-33140

81340BBULB (FOR VANITY LAMP)

main99132-13050iZRE18#..N201208-201503

12V 5W

8202

10 parts on this diagram · 2 diagrams in section
