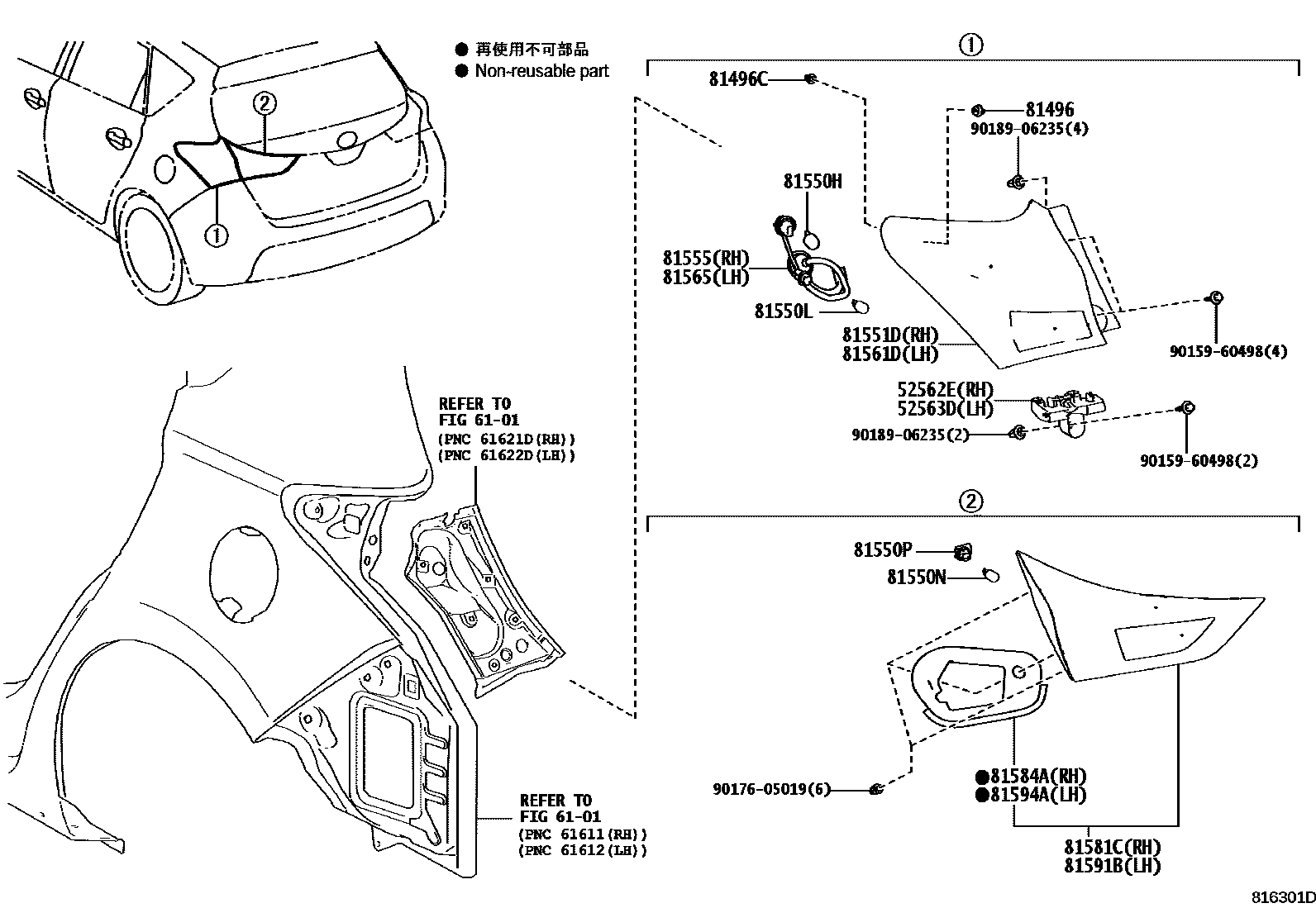

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-12140iNRE180,ZRE18#,ZWE186201503

main52562-12200iNRE180,ZRE18#201208-201503

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-12100iNRE180,ZRE18#,ZWE186201503

main52563-12120iNRE180,ZRE18#201208-201503

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iNRE180,ZRE18#201208-201503

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iNRE180,ZRE18#201208-201503

81550HBULB, TAIL & STOP LAMP

main90981-13044iNRE180,ZRE18#201208-201503

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059iNRE180,ZRE18#201208-201503

12V 16W

main90981-15028iNRE180,ZRE18#,ZWE186201503

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNRE180,ZRE18#201208-201503

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-60065iNRE180,ZRE18#201208-201503

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12C30iNRE180,ZRE18#201503-201508

sub81551-12C31

main81551-12C31iNRE180,ZRE18#,ZWE186201508

main81551-12C40iNRE180,ZRE18#201208-201503

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12C30iNRE180,ZRE18#,ZWE186201503

main81555-12C40iNRE180,ZRE18#201208-201503

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12C30iNRE180,ZRE18#201503-201508

sub81561-12C31

main81561-12C31iNRE180,ZRE18#,ZWE186201508

main81561-12C40iNRE180,ZRE18#201208-201503

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-12C30iNRE180,ZRE18#,ZWE186201503

main81565-12C40iNRE180,ZRE18#201208-201503

81581CLENS AND BODY, REAR LAMP, RH

main81581-12190iNRE180,ZRE18#,ZWE186201503

main81581-12210iNRE180,ZRE18#201208-201503

81584AGASKET, REAR LAMP RH

main81584-12190iNRE180,ZRE18#,ZWE186201503

main81584-12210iNRE180,ZRE18#201208-201503

81591BLENS AND BODY, REAR LAMP, LH

main81591-12160iNRE180,ZRE18#,ZWE186201503

main81591-12210iNRE180,ZRE18#201208-201503

81594AGASKET, REAR LAMP LH

main81594-12160iNRE180,ZRE18#,ZWE186201503

main81594-12210iNRE180,ZRE18#201208-201503

9015960498

main90159-60498

9017605019

main90176-05019

9018906235

main90189-06235

20 parts on this diagram · 2 diagrams in section
