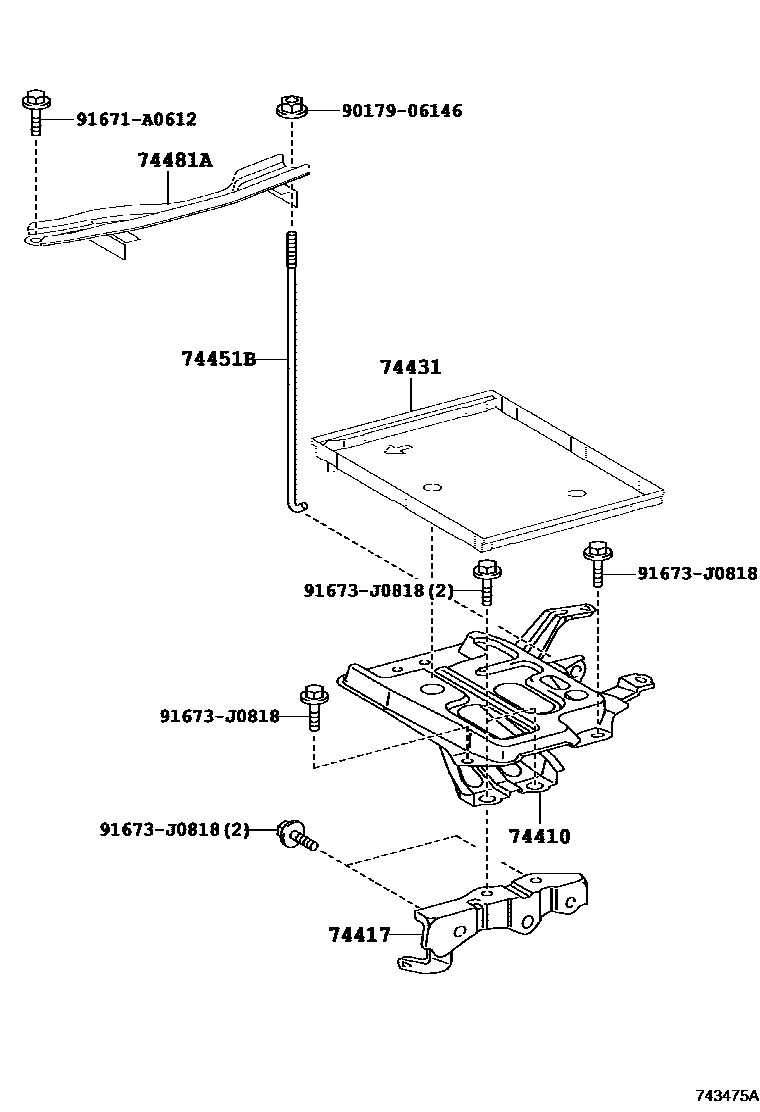

BATTERY CARRIER

0001 1 0002 1

74410CARRIER ASSY, BATTERY

main74410-02130iZWE186201604

main74410-12020iNRE180,ZRE18#201208-201503

74417BRACKET, BATTERY CARRIER

main74401-12010iNRE180,ZRE18#201208-201503

74431TRAY, BATTERY

main74431-12110iNRE180,ZRE18#201208-201503

74451BBOLT, BATTERY CLAMP

main74451-10061iNRE180,ZRE18#201505

sub74451-42030

main74451-52010iZWE186201604

main74451-58011iNRE180,ZRE18#201208-201504

74481ACLAMP, BATTERY

main74404-12520iNRE180,ZRE18#201208-201503

main74481-02250iZWE186201604

9017906146

main90179-06146

91671A0612

main91671-A0612

91673J0818

main91673-J0818

8 parts on this diagram · 2 diagrams in section
