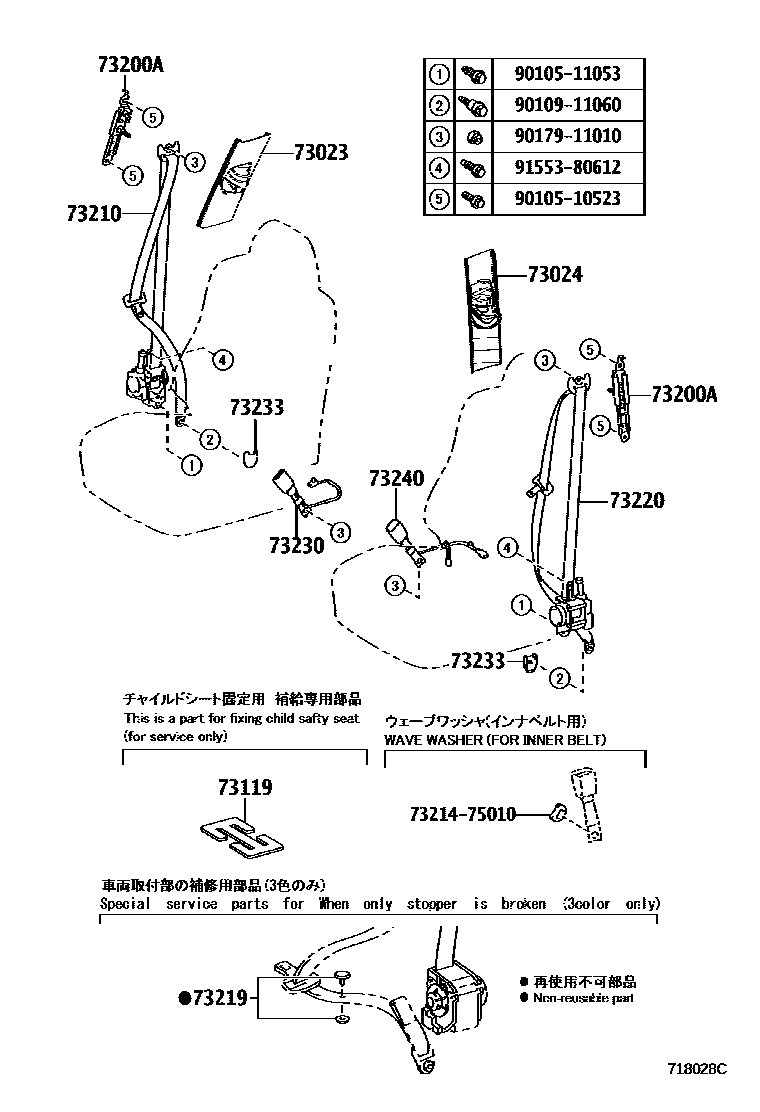

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-B1iNRE180,ZRE18#201208-201805

LT.GRAY,TRIM2#

sub73023-58010

sub73023-33030

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-B1iNRE180,ZRE18#201208-201805

LT.GRAY,TRIM2#

sub73024-58010

sub73024-33030

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNRE180,ZRE18#201208-201503

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iNRE180,ZRE18#,ZWE186201503

main73200-53010iNRE180,ZRE18#201208-201503

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12A40-C1iNRE180,ZRE18#201208-201603

BLACK,TRIM2#

main73210-12D60-C0iNRE180,ZRE18#,ZWE186201603-201805

BLACK/LT.GRAY,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iNRE180,ZRE18#201208-201503

BLACK

main73219-33020iNRE180,ZRE18#,ZWE186201208-201503

GRAY

main73219-33030iNRE180,ZRE18#201208-201503

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12B80-C1iNRE180,ZRE18#201208-201603

BLACK,TRIM2#

main73220-12D30-C0iNRE180,ZRE18#,ZWE186201603-201805

BLACK/LT.GRAY,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12C00-C0iNRE180,ZRE18#201208-201603

BLACK,TRIM2#

main73230-12C20-C0iNRE180,ZRE18#,ZWE186201603-201805

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-B2iNRE180,ZRE18#201208-201311

DK.GRAY,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-C0iNRE180,ZRE18#201311-201610

BLACK,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-C1iNRE180,ZRE18#,ZWE186201610-201805

BLACK,TRIM2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-47090-C0iNRE180,ZRE18#201208-201603

BLACK,TRIM2#

main73240-47140-C0iNRE180,ZRE18#,ZWE186201603-201805

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
