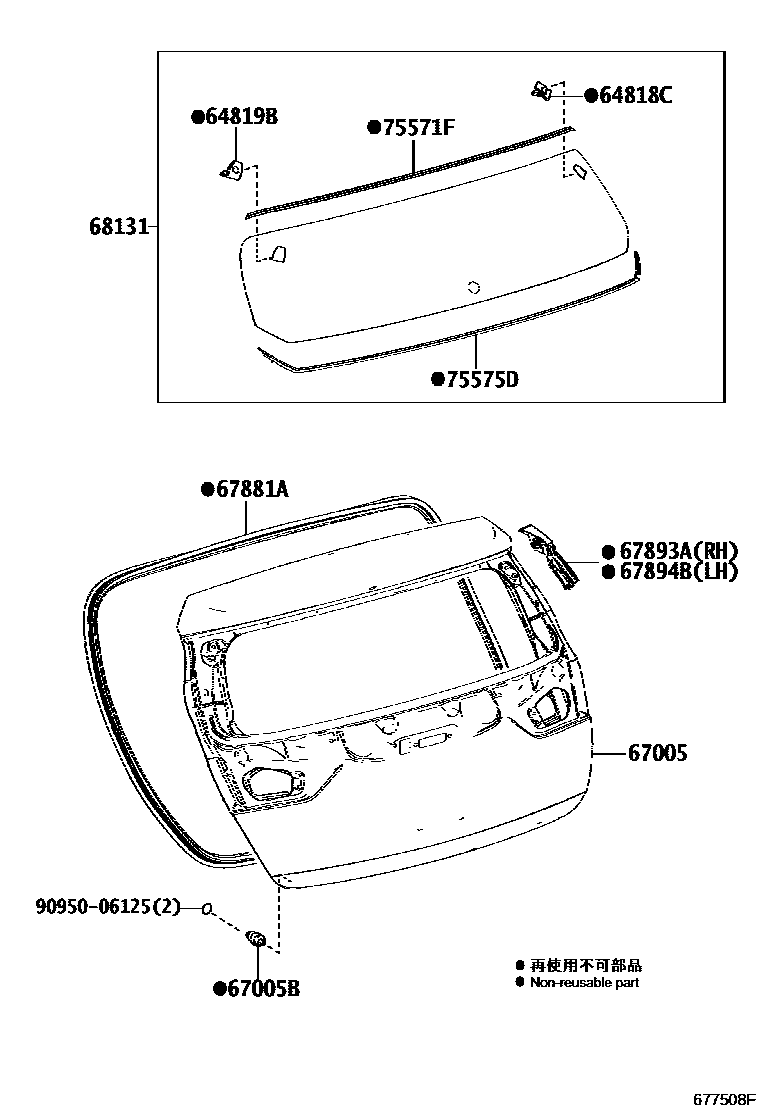

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-12070iNRE180,ZRE18#201208-201503

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-12050iNRE180,ZRE18#201208-201503

67005PANEL SUB-ASSY, BACK DOOR

main67005-12C30iZRE18#..N201208-201503

main67005-12C50iNRE180,ZRE18#..D201208-201503

AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))

main67005-12C50iNRE180,ZRE181..D201503-201805

main67005-12D00iZRE182;ZRE181,ZWE186..N201503-201805

AUDIO-*DA(7INCH DISPLAY) & 6SPEAKER

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNRE180,ZRE18#201208-201503

67881AWEATHERSTRIP, BACK DOOR

main67881-12310iNRE180,ZRE18#201208-201503

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-12030iNRE180,ZRE18#201208-201503

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-12030iNRE180,ZRE18#201208-201503

68131GLASS, BACK DOOR

main68105-12390iNRE180,ZRE18#..D201208-201503

main68105-12410iZRE18#..N201208-201503

main68105-12430iNRE180,ZRE18#..D201503

main68105-12430iZWE186201604

REAR SIDE GLASS-GREEN

main68105-12440iZRE18#,ZWE186..N201503

75571FMOULDIMG, BACK DOOR WINDOW

main75571-12A90iNRE180,ZRE18#201208-201503

75575DMOULDING, BACK WINDOW, LOWER

main75575-12470iNRE180,ZRE18#,ZWE186201208-201503

9095006125

main90950-06125

11 parts on this diagram · 2 diagrams in section
