EPC Data

FRONT DOOR LOCK & HANDLE

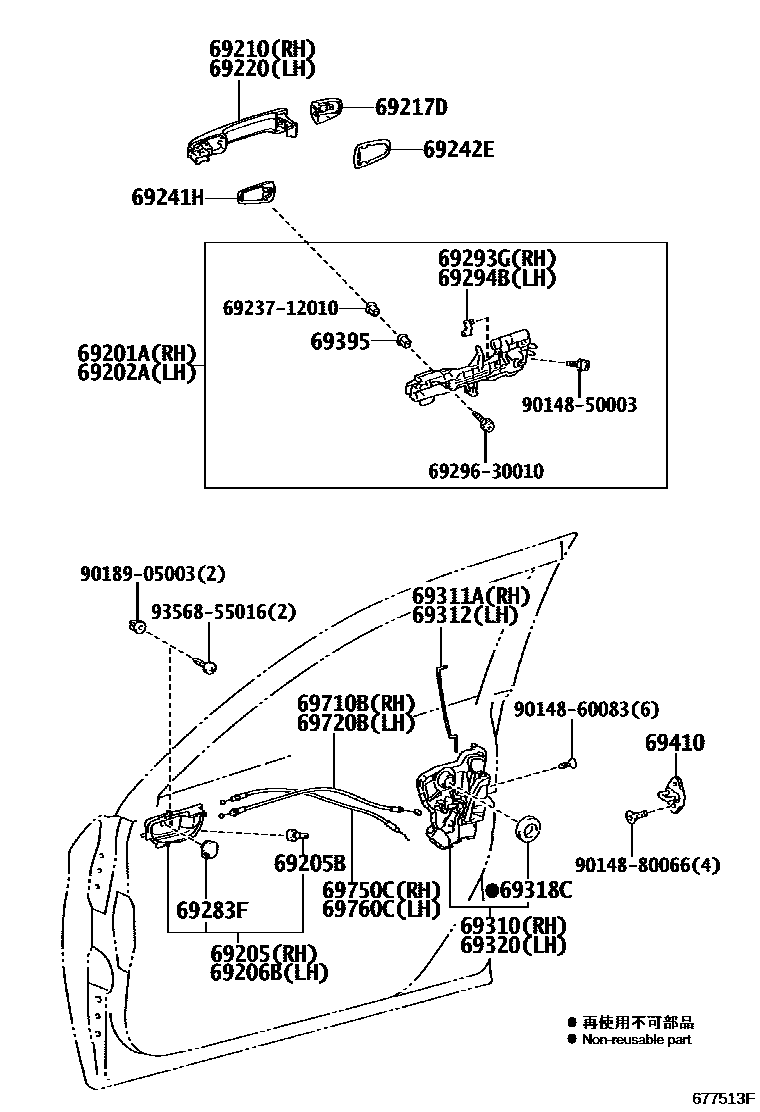

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-12110i201503
main69201-52130i201208-201503
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-12060i201503
main69202-52070i201208-201503
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12240-C0i201503-201805
BLACK,TRIM2#
main69205-52170-C0i201208-201503
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i201208-201503
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-12240-C0i201503-201805
BLACK,TRIM2#
main69206-52170-C0i201208-201503
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-52100-A0i201208-201805
SUPER WHITE 2,040
sub69210-52100
main69210-52100-A0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),SUPER WHITE 2,040
sub69210-52100
main69210-52100-A0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),SUPER WHITE 2,040
sub69210-52100
main69210-52100-A1i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),WHITE PEARL CS.,070
sub69210-52100
main69210-52100-A1i201208-201805
WHITE PEARL CS.,070
sub69210-52100
main69210-52100-A1i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),WHITE PEARL CS.,070
sub69210-52100
main69210-52100-B0i201208-201805
SILVER ME.,1F7
sub69210-52100
main69210-52100-B0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),SILVER ME.,1F7
sub69210-52100
main69210-52100-B0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),SILVER ME.,1F7
sub69210-52100
main69210-52100-C0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLACK MC.,209
sub69210-52100
main69210-52100-C0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),BLACK MC.,209
sub69210-52100
main69210-52100-C0i201208-201805
BLACK MC.,209
sub69210-52100
main69210-52100-D3i201208-201805
RED M.M.,3R3
sub69210-52100
main69210-52100-D3i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),RED M.M.,3R3
sub69210-52100
main69210-52100-D3i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),RED M.M.,3R3
sub69210-52100
main69210-52100-E6i201208-201503
AVANT-GARDE BRONZE ME.,4V8
sub69210-52100
main69210-52100-E6i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),AVANT-GARDE BRONZE ME.,4V8
sub69210-52100
main69210-52100-E6i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),AVANT-GARDE BRONZE ME.,4V8
sub69210-52100
main69210-52100-E7i201208-201805
ORANGE ME.,4R8
sub69210-52100
main69210-52100-E7i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),ORANGE ME.,4R8
sub69210-52100
main69210-52100-E7i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),ORANGE ME.,4R8
sub69210-52100
main69210-52100-G2i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),CITRUS M.M.,6W2
sub69210-52100
main69210-52100-G2i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),CITRUS M.M.,6W2
sub69210-52100
main69210-52100-G2i201503-201805
CITRUS M.M.,6W2
sub69210-52100
main69210-52100-J8i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),BLUE ME.,8T7
sub69210-52100
main69210-52100-J8i201208-201503
BLUE ME.,8T7
sub69210-52100
main69210-52100-J8i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLUE ME.,8T7
sub69210-52100
main69210-52100-R5i201503-201805
BLUE ME.,8X7
sub69210-52100
main69210-52100-R5i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),BLUE ME.,8X7
sub69210-52100
main69210-52100-R5i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLUE ME.,8X7
sub69210-52100
main69211-52100-A0i201208-201805
SUPER WHITE 2,040
sub69211-52100
main69211-52100-A1i201208-201805
WHITE PEARL CS.,070
sub69211-52100
main69211-52100-B0i201208-201805
SILVER ME.,1F7
sub69211-52100
main69211-52100-C0i201208-201805
BLACK MC.,209
sub69211-52100
main69211-52100-D4i201208-201805
RED M.M.,3R3
sub69211-52100
main69211-52100-E5i201208-201503
AVANT-GARDE BRONZE ME.,4V8
sub69211-52100
main69211-52100-E6i201208-201805
ORANGE ME.,4R8
sub69211-52100
main69211-52100-G3i201503-201805
CITRUS M.M.,6W2
sub69211-52100
main69211-52100-J5i201208-201503
BLUE ME.,8T7
sub69211-52100
main69211-52100-R3i201503-201805
BLUE ME.,8X7
sub69211-52100
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-52030-A0i201208-201805
SUPER WHITE 2,040,DRIVER SIDE
sub69217-52030
main69217-52030-A1i201208-201805
WHITE PEARL CS.,070,DRIVER SIDE
sub69217-52030
main69217-52030-B0i201208-201805
SILVER ME.,1F7,DRIVER SIDE
sub69217-52030
main69217-52030-C0i201208-201805
BLACK MC.,209,DRIVER SIDE
sub69217-52030
main69217-52030-D3i201208-201805
RED M.M.,3R3,DRIVER SIDE
sub69217-52030
main69217-52030-E6i201208-201503
AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE
sub69217-52030
main69217-52030-E7i201208-201805
ORANGE ME.,4R8,DRIVER SIDE
sub69217-52030
main69217-52030-G3i201503-201805
CITRUS M.M.,6W2,DRIVER SIDE
sub69217-52030
main69217-52030-J7i201208-201503
BLUE ME.,8T7,DRIVER SIDE
sub69217-52030
main69217-52030-R7i201503-201805
BLUE ME.,8X7,DRIVER SIDE
sub69217-52030
main69217-52040-A0i201208-201805
SUPER WHITE 2,040,PASSENGER SIDE
sub69217-52040
main69217-52040-A1i201208-201805
WHITE PEARL CS.,070,PASSENGER SIDE
sub69217-52040
main69217-52040-B0i201208-201805
SILVER ME.,1F7,PASSENGER SIDE
sub69217-52040
main69217-52040-C0i201208-201805
BLACK MC.,209,PASSENGER SIDE
sub69217-52040
main69217-52040-D3i201208-201805
RED M.M.,3R3,PASSENGER SIDE
sub69217-52040
main69217-52040-E6i201208-201503
AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE
sub69217-52040
main69217-52040-E7i201208-201805
ORANGE ME.,4R8,PASSENGER SIDE
sub69217-52040
main69217-52040-G3i201503-201805
CITRUS M.M.,6W2,PASSENGER SIDE
sub69217-52040
main69217-52040-J7i201208-201503
BLUE ME.,8T7,PASSENGER SIDE
sub69217-52040
main69217-52040-R7i201503-201805
BLUE ME.,8X7,PASSENGER SIDE
sub69217-52040
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-52100-A0i201208-201805
SUPER WHITE 2,040
sub69210-52100
main69210-52100-A0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),SUPER WHITE 2,040
sub69210-52100
main69210-52100-A0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),SUPER WHITE 2,040
sub69210-52100
main69210-52100-A1i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),WHITE PEARL CS.,070
sub69210-52100
main69210-52100-A1i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),WHITE PEARL CS.,070
sub69210-52100
main69210-52100-A1i201208-201805
WHITE PEARL CS.,070
sub69210-52100
main69210-52100-B0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),SILVER ME.,1F7
sub69210-52100
main69210-52100-B0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),SILVER ME.,1F7
sub69210-52100
main69210-52100-B0i201208-201805
SILVER ME.,1F7
sub69210-52100
main69210-52100-C0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLACK MC.,209
sub69210-52100
main69210-52100-C0i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),BLACK MC.,209
sub69210-52100
main69210-52100-C0i201208-201805
BLACK MC.,209
sub69210-52100
main69210-52100-D3i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),RED M.M.,3R3
sub69210-52100
main69210-52100-D3i201208-201805
RED M.M.,3R3
sub69210-52100
main69210-52100-D3i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),RED M.M.,3R3
sub69210-52100
main69210-52100-E6i201208-201503
AVANT-GARDE BRONZE ME.,4V8
sub69210-52100
main69210-52100-E6i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),AVANT-GARDE BRONZE ME.,4V8
sub69210-52100
main69210-52100-E6i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),AVANT-GARDE BRONZE ME.,4V8
sub69210-52100
main69210-52100-E7i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),ORANGE ME.,4R8
sub69210-52100
main69210-52100-E7i201208-201805
ORANGE ME.,4R8
sub69210-52100
main69210-52100-E7i201208-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),ORANGE ME.,4R8
sub69210-52100
main69210-52100-G2i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),CITRUS M.M.,6W2
sub69210-52100
main69210-52100-G2i201503-201805
CITRUS M.M.,6W2
sub69210-52100
main69210-52100-G2i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),CITRUS M.M.,6W2
sub69210-52100
main69210-52100-J8i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLUE ME.,8T7
sub69210-52100
main69210-52100-J8i201208-201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),BLUE ME.,8T7
sub69210-52100
main69210-52100-J8i201208-201503
BLUE ME.,8T7
sub69210-52100
main69210-52100-R5i201503-201805
BLUE ME.,8X7
sub69210-52100
main69210-52100-R5i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),BLUE ME.,8X7
sub69210-52100
main69210-52100-R5i201503-201805
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLUE ME.,8X7
sub69210-52100
main69211-52100-A0i201208-201805
SUPER WHITE 2,040
sub69211-52100
main69211-52100-A1i201208-201805
WHITE PEARL CS.,070
sub69211-52100
main69211-52100-B0i201208-201805
SILVER ME.,1F7
sub69211-52100
main69211-52100-C0i201208-201805
BLACK MC.,209
sub69211-52100
main69211-52100-D4i201208-201805
RED M.M.,3R3
sub69211-52100
main69211-52100-E5i201208-201503
AVANT-GARDE BRONZE ME.,4V8
sub69211-52100
main69211-52100-E6i201208-201805
ORANGE ME.,4R8
sub69211-52100
main69211-52100-G3i201503-201805
CITRUS M.M.,6W2
sub69211-52100
main69211-52100-J5i201208-201503
BLUE ME.,8T7
sub69211-52100
main69211-52100-R3i201503-201805
BLUE ME.,8X7
sub69211-52100
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-12150i201603-201604
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)
sub69241-12160
main69241-12150i201603-201604
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)
sub69241-12160
main69241-12150i201503-201604
sub69241-12160
main69241-12160i201604
main69241-52020i201208-201503
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-33040i201604
main69242-52030i201603-201604
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)
main69242-52030i201208-201604
main69242-52030i201603-201604
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
main69283-52010-C0i201208-201805
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201208-201503
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201208-201503
69310LOCK ASSY, FRONT DOOR, RH
main69030-42210i201208-201503
main69030-53080i201208-201503
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-12190i201208-201503
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-12190i201208-201503
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201208-201503
69320LOCK ASSY, FRONT DOOR, LH
main69040-12490i201208-201503
main69040-42230i201208-201503
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main69040-42230i201208-201503
"S PACKAGE"
main69040-42230i201208-201503
"S PACKAGE"&ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main69040-42230i201604
main69040-42230i201503
WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)&AIR CONDITIONER-AUTO AIRCONDITIONER (DUAL MODE CONTROL)
main69040-53090i201208-201503
69395BUSH(FOR DOOR OUTSIDE HANDLE)
main69239-30010i201208-201503
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110i201208-201503
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-12150i201208-201503
main69710-12180i201503
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-12150i201208-201503
main69710-12180i201503
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-12180i201208-201503
main69750-12210i201503
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-12180i201208-201503
main69750-12210i201503
6923712010RETAINER, DOOR OUTSIDE HANDLE
main69237-12010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016

31 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
