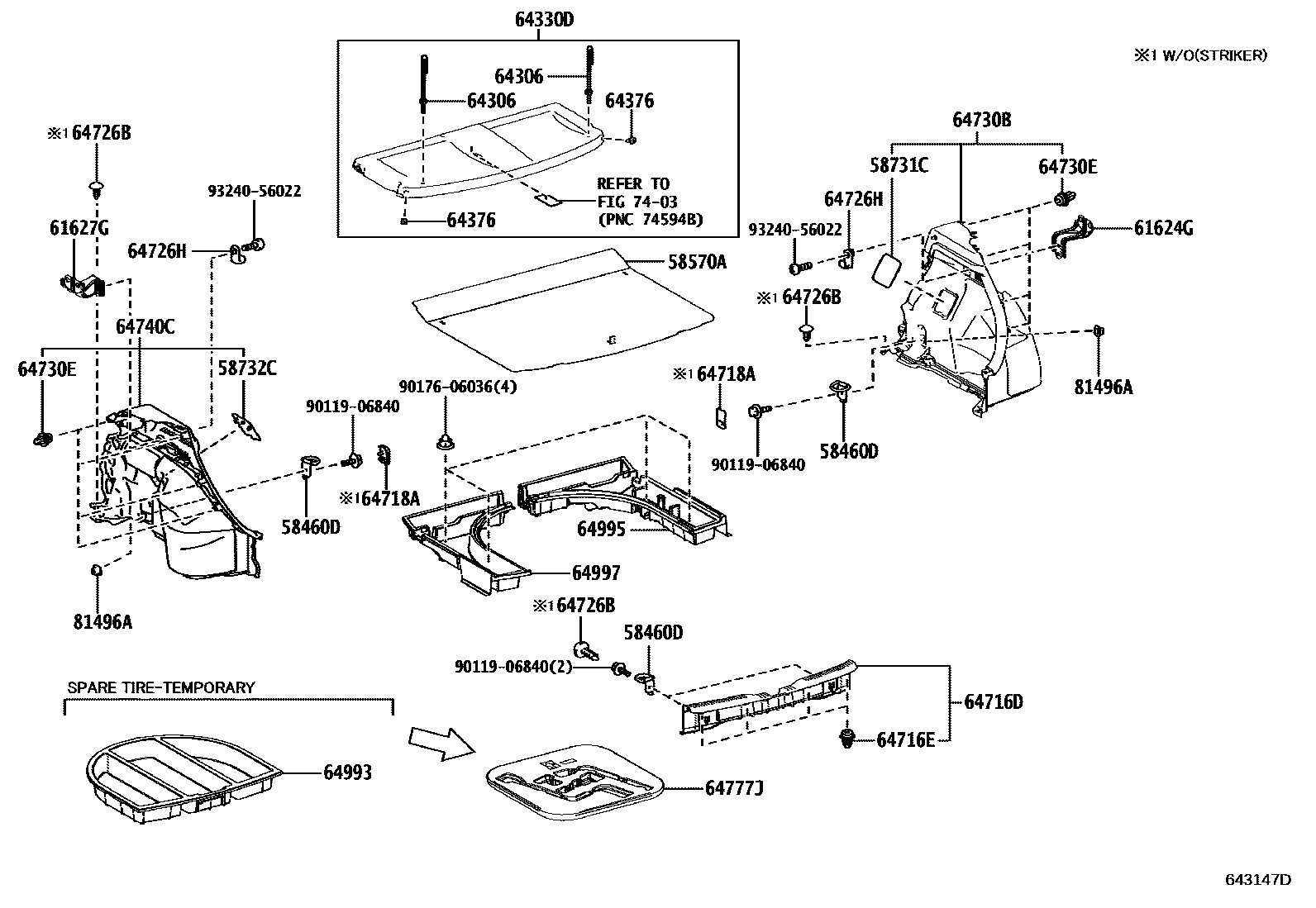

DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
"S PACKAGE"
WITH(TFT COLOR MULTI INFORMATION DISPLAY
58570AMAT ASSY, REAR FLOOR
BLACK,TRIM2#
58731CCAP, REAR ABSORBER
DK.GRAY,TRIM2#
58732CCAP, REAR ABSORBER
DK.GRAY,TRIM2#
61624GBRACKET, DECK SIDE TRIM UPPER, RH
61627GBRACKET, DECK SIDE TRIM UPPER, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM2#
64726BCLIP, DECK REAR TRIM
64726HHOOK, DECK SIDE TRIM, NO.2
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK/DK.GRAY,TRIM2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
64777JCUSHION, SPARE WHEEL
SPARE TIRE-GROUND TIRE(STEEL)
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
BLACK,TRIM2#
BLACK,TRIM2#
64997BOX, DECK FLOOR, LH
BLACK,TRIM2#
7403
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
9017606036
main90176-06036
9324056022
main93240-56022
26 parts on this diagram · 2 diagrams in section
