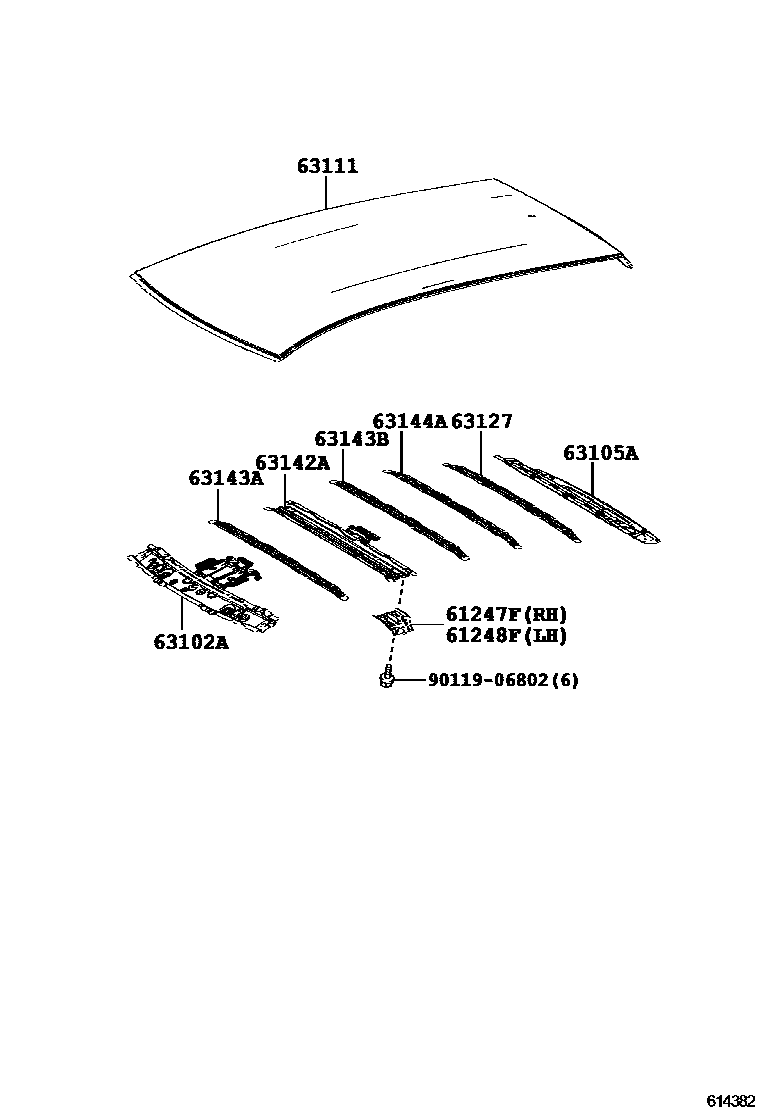

ROOF PANEL & BACK WINDOW GLASS

0001 1STANDARD ROOF 0002 1PANORAMA ROOF

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12070iNRE180,ZRE18#201208-201503

61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH

main61247-12070iNRE180,ZRE18#201208-201503

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12250iNRE180,ZRE18#201208-201503

main63102-12310iNRE180,ZRE18#,ZWE186201503

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12300iNRE180,ZRE18#201208-201503

63111PANEL, ROOF

main63111-12A00iNRE180,ZRE18#201208-201408

sub63111-12A70

main63111-12A70iNRE180,ZRE18#201409-201503

63127REINFORCEMENT, ROOF PANEL, NO.5

main63126-12040iNRE180,ZRE18#201208-201503

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-12120iNRE180,ZRE18#201208-201503

63143AREINFORCEMENT, ROOF PANEL

main63143-12150iNRE180,ZRE18#201208-201503

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63148-12070iNRE180,ZRE18#201208-201503

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12150iNRE180,ZRE18#201208-201503

9011906802

main90119-06802

11 parts on this diagram · 2 diagrams in section
