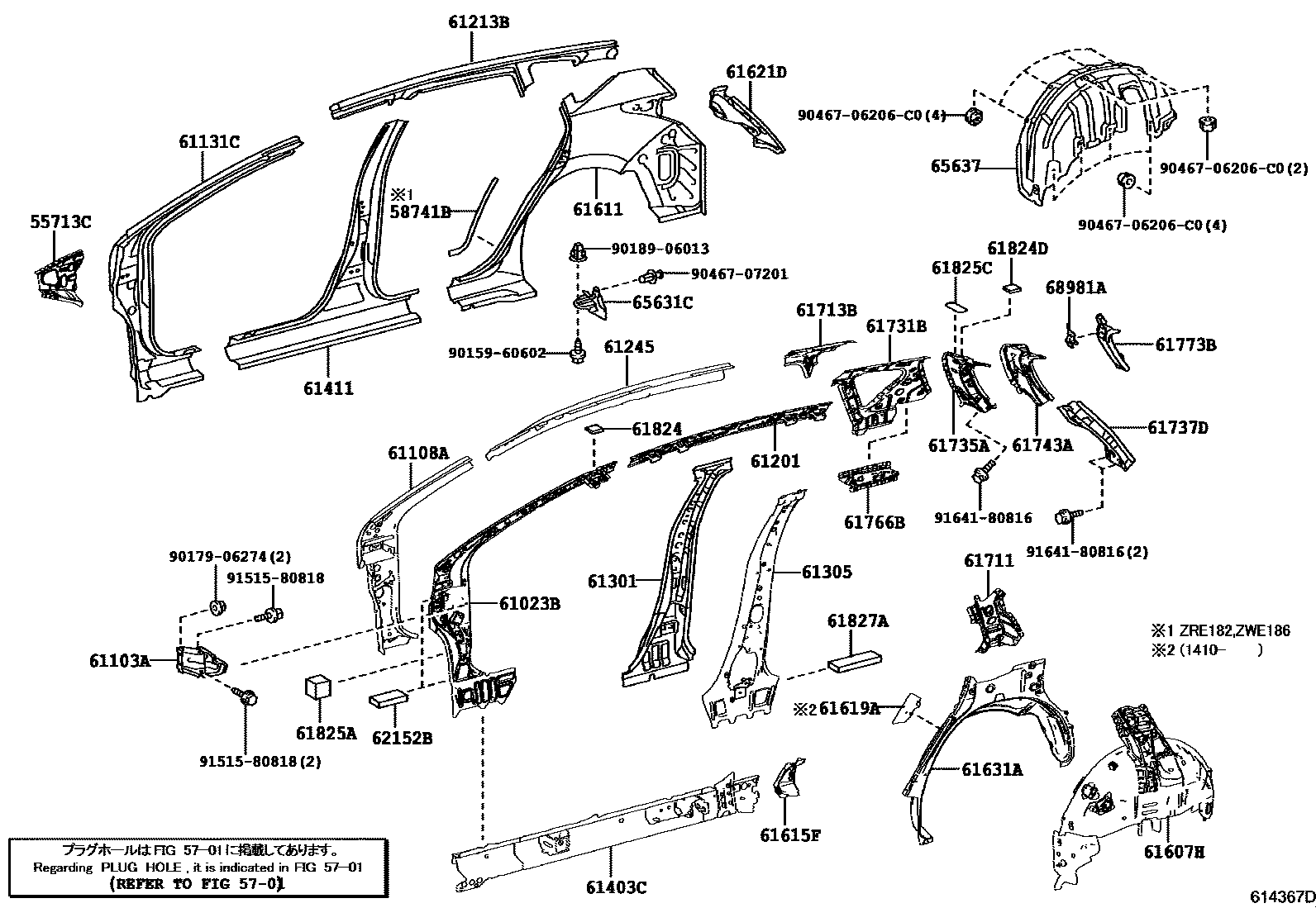

SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
58741BPROTECTOR, QUARTER PANEL, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
SPORT PACKAGE
61201RAIL SUB-ASSY, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
SPORT PACKAGE
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
SPORT PACKAGE
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
61619AREINFORCEMENT, QUARTER PANEL
61621DTROUGH, BACK DOOR OPENING, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH
61824PLATE, NOISE CONTROL, NO.1
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
61827APLATE, NOISE CONTROL, NO.4
62152BPAD, COWL SIDE SILENCER, NO.2
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65637LINER, REAR WHEEL HOUSE, RH
68981ARETAINER, BACK DOOR STAY, RH
9015960602
main90159-60602
9017906274
main90179-06274
9018906013
main90189-06013
9046706206C0
main90467-06206C0
9046707201
main90467-07201
9151580818
main91515-80818
9164180816
main91641-80816
44 parts on this diagram · 2 diagrams in section
