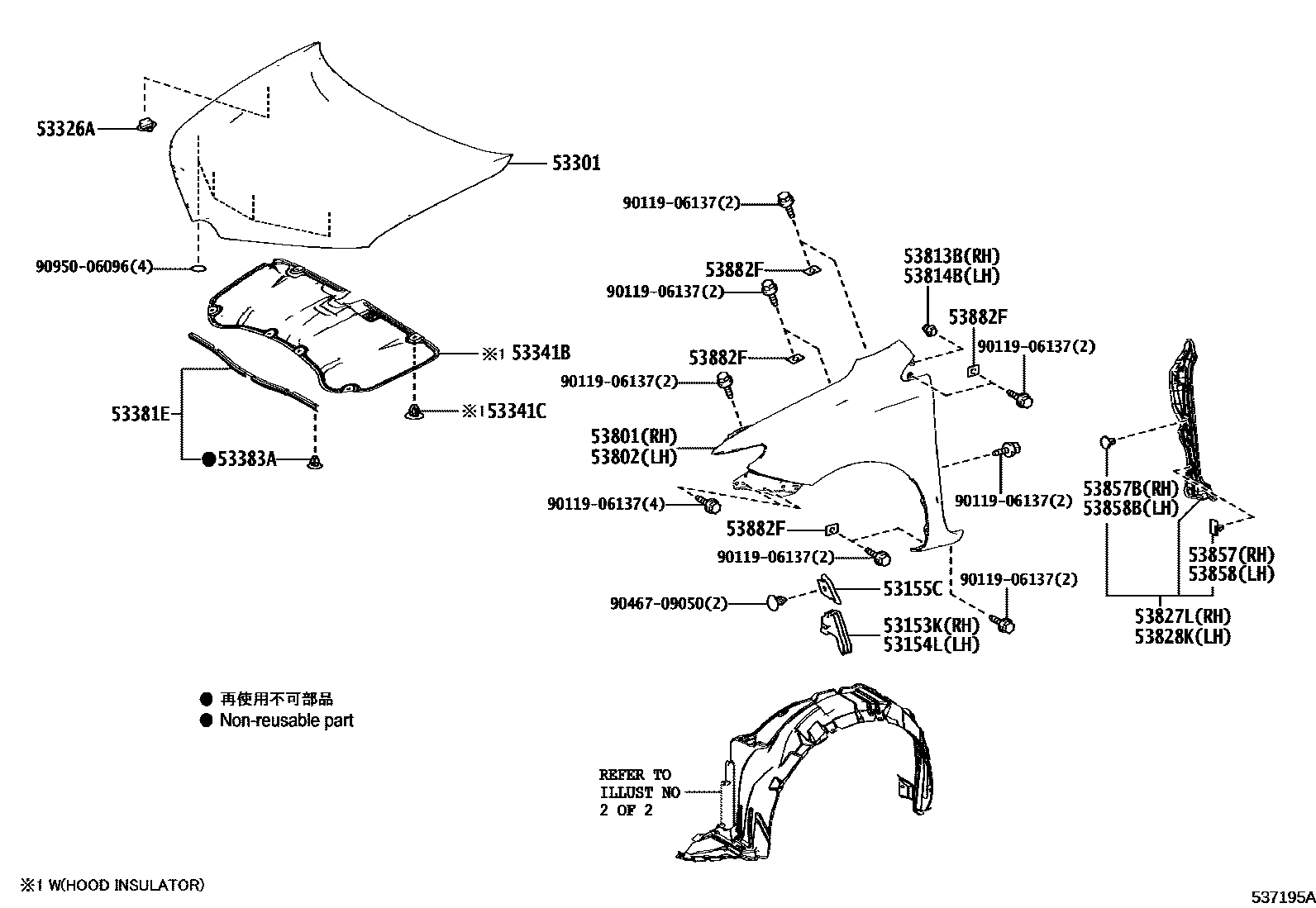

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02010iNRE180,ZRE18#¥2,750201208-201503

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02010iNRE180,ZRE18#,ZWE186¥2,520201208-201503

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-12070iNRE180,ZRE18#¥610201208-201503

main53155-12080iNRE180,ZRE18#,ZWE186¥500201503

53301HOOD SUB-ASSY

main53301-12B10iNRE180,ZRE18#¥40,300201208-201805

53326ACLIP, HOOD MOULDING

main53326-52010iNRE180,ZRE18#¥160201208-201503

53341BINSULATOR, HOOD

main53341-12250iZRE18#..N¥6,100201208-201503

sub53341-12360¥6,100

main53341-12360iZWE186¥6,100201604

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZRE18#..N¥120201208-201503

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-12270iNRE180,ZRE18#¥1,820201208-201503

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011iNRE180,ZRE18#¥100201208-201503

53801FENDER SUB-ASSY, FRONT RH

main53811-12B70iNRE180,ZRE18#¥32,700201208-201805

53802FENDER SUB-ASSY, FRONT LH

main53812-12B70iNRE180,ZRE18#¥32,700201208-201805

53813BEXTENSION, FRONT FENDER, RH

main53813-48011iNRE180,ZRE18#¥80201208-201503

53814BEXTENSION, FRONT FENDER, LH

main53813-48011iNRE180,ZRE18#¥80201208-201503

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12130iNRE180,ZRE18#¥2,900201208-201503

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12130iNRE180,ZRE18#¥2,900201208-201503

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iNRE180,ZRE18#¥100201208-201503

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNRE180,ZRE18#¥60201208-201503

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iNRE180,ZRE18#¥100201208-201503

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNRE180,ZRE18#¥60201208-201503

53882FSEAL, FRONT FENDER

main53882-16030iNRE180,ZRE18#¥60201208-201503

9011906137

main90119-06137¥70

9046709050

main90467-09050¥120

9095006096

main90950-06096¥100

23 parts on this diagram · 2 diagrams in section
