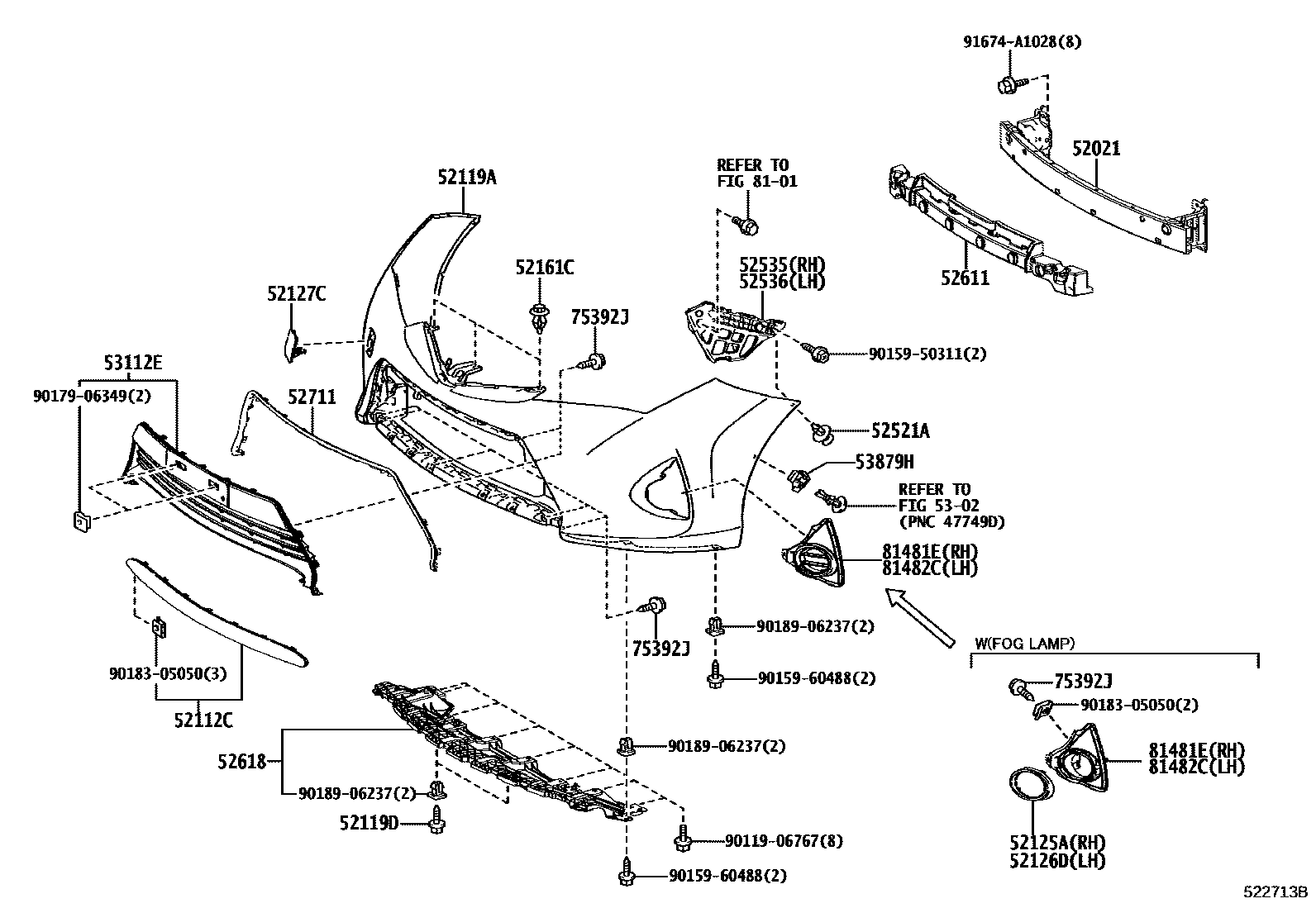

FRONT BUMPER & BUMPER STAY
52112CEXTENSION, FRONT BUMPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
"S PACKAGE"
SPORT PACKAGE
WITH(TFT COLOR MULTI INFORMATION DISPLAY
52126DBRACKET, FOG LAMP MOUNTING, LH
"S PACKAGE"
SPORT PACKAGE
WITH(TFT COLOR MULTI INFORMATION DISPLAY
52127CCOVER, FRONT BUMPER HOLE
52161CPIECE, FRONT BUMPER
sub52161-0K040
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
52711MOULDING, FRONT BUMPER
PLATED
NO PAINT REQ.
NO PAINT REQ.
PLATED
5302
53112EGRILLE, RADIATOR, LOWER NO.1
PLATED,"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
PLATED
PLATED,"S PACKAGE"
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53879HRETAINER, FRONT FENDER LINER
75392JRETAINER, OUTSIDE MOULDING
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9011906767
main90119-06767
9015950311
main90159-50311
9015960488
main90159-60488
9017906349
main90179-06349
9018305050
main90183-05050
9018906237
main90189-06237
91674A1028
main91674-A1028
28 parts on this diagram · 3 diagrams in section
