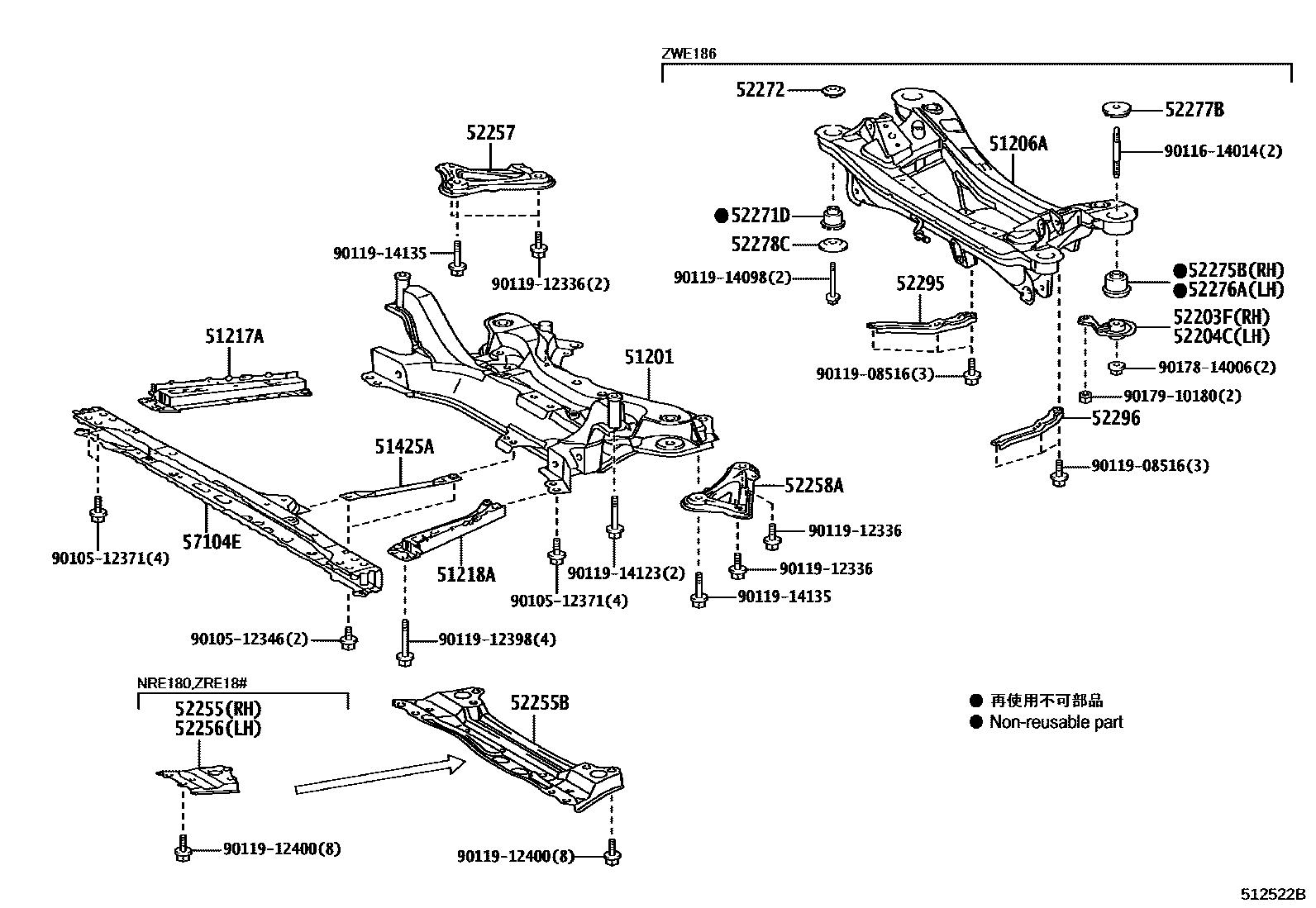

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iNRE180,ZRE18#¥84,500201208-201210

sub51201-12442¥58,900

main51201-12442iNRE180,ZRE18#¥58,900201211-201503

sub51201-78010¥58,700

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-75022iZWE186¥57,700201604

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iNRE180,ZRE18#,ZWE186¥4,540201208-201503

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iNRE180,ZRE18#¥4,510201208-201503

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iNRE180,ZRE18#¥1,720201208-201503

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-12010iZWE186¥3,030201604

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52203-12010iZWE186¥3,030201604

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iNRE180,ZRE18#¥2,710201208-201503

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iZWE186¥7,400201604

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iNRE180,ZRE18#¥2,710201208-201503

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-21040iNRE180,ZRE18#¥2,590201208-201503

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-21040iNRE180,ZRE18#¥2,590201208-201503

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-75010iZWE186¥2,570201604

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-75010iZWE186¥700201604

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-75010iZWE186¥3,210201604

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-75010iZWE186¥3,210201604

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-75010iZWE186¥1,120201604

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-75010iZWE186¥810201604

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12051iZWE186¥1,400201604

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-12051iZWE186¥1,400201604

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iNRE180,ZRE18#¥28,900201208-201503

9010512346

main90105-12346¥120

9010512371

main90105-12371¥190

9011614014

main90116-14014¥470

9011908516

main90119-08516¥120

9011912336

main90119-12336¥210

9011912398

main90119-12398¥350

9011912400

main90119-12400¥180

9011914098

main90119-14098¥400

9011914123

main90119-14123¥470

9011914135

main90119-14135¥490

9017814006

main90178-14006¥160

9017910180

main90179-10180¥120

33 parts on this diagram · 2 diagrams in section
