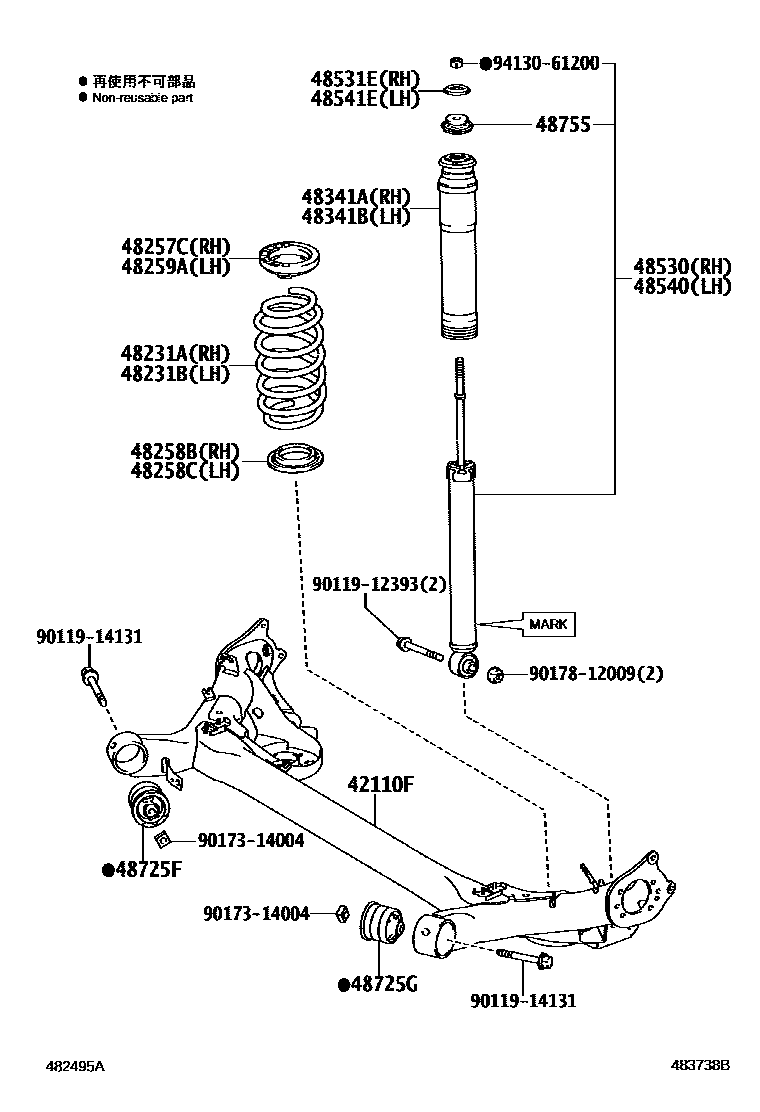

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-12F70
MARK 48530-12J50
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-12F70
MARK 48530-12J50
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48755SUPPORT, REAR SUSPENSION
9011912393
main90119-12393
9011914131
main90119-14131
9017314004
main90173-14004
9017812009
main90178-12009
9413061200
main94130-61200
21 parts on this diagram · 2 diagrams in section
