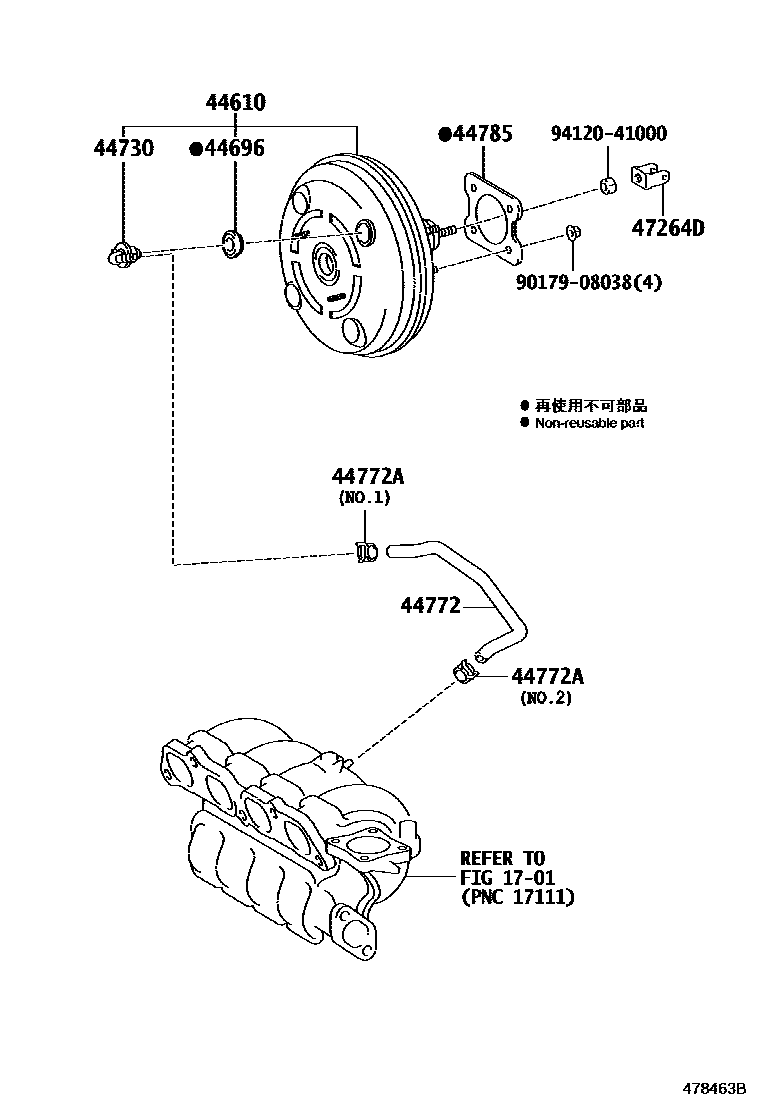

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-12J20iNRE180201208-201503

main44610-12J30iZRE182201208-201503

main44610-12J50iZRE181201208-201503

main44610-12M00iZRE182201503

main44610-12M30iNRE180201503

main44610-12M40iZRE181201503

44696GROMMET, CHECK VALVE

main90480-24439iNRE180,ZRE18#201208-201805

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iNRE180,ZRE18#201208-201503

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12600iZRE18#201208-201805

main44772-12681iNRE180201208-201805

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iZRE18#201403-201503

NO.1 & NO.2

main90467-16014iNRE180201208-201403

NO.2

main96133-41500iZRE18#201208-201403

NO.1

44785GASKET, BRAKE BOOSTER

main44785-12040iNRE180,ZRE18#201208-201503

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-68010iNRE180,ZRE18#201208-201503

9017908038

main90179-08038

9412041000

main94120-41000

10 parts on this diagram · 3 diagrams in section
