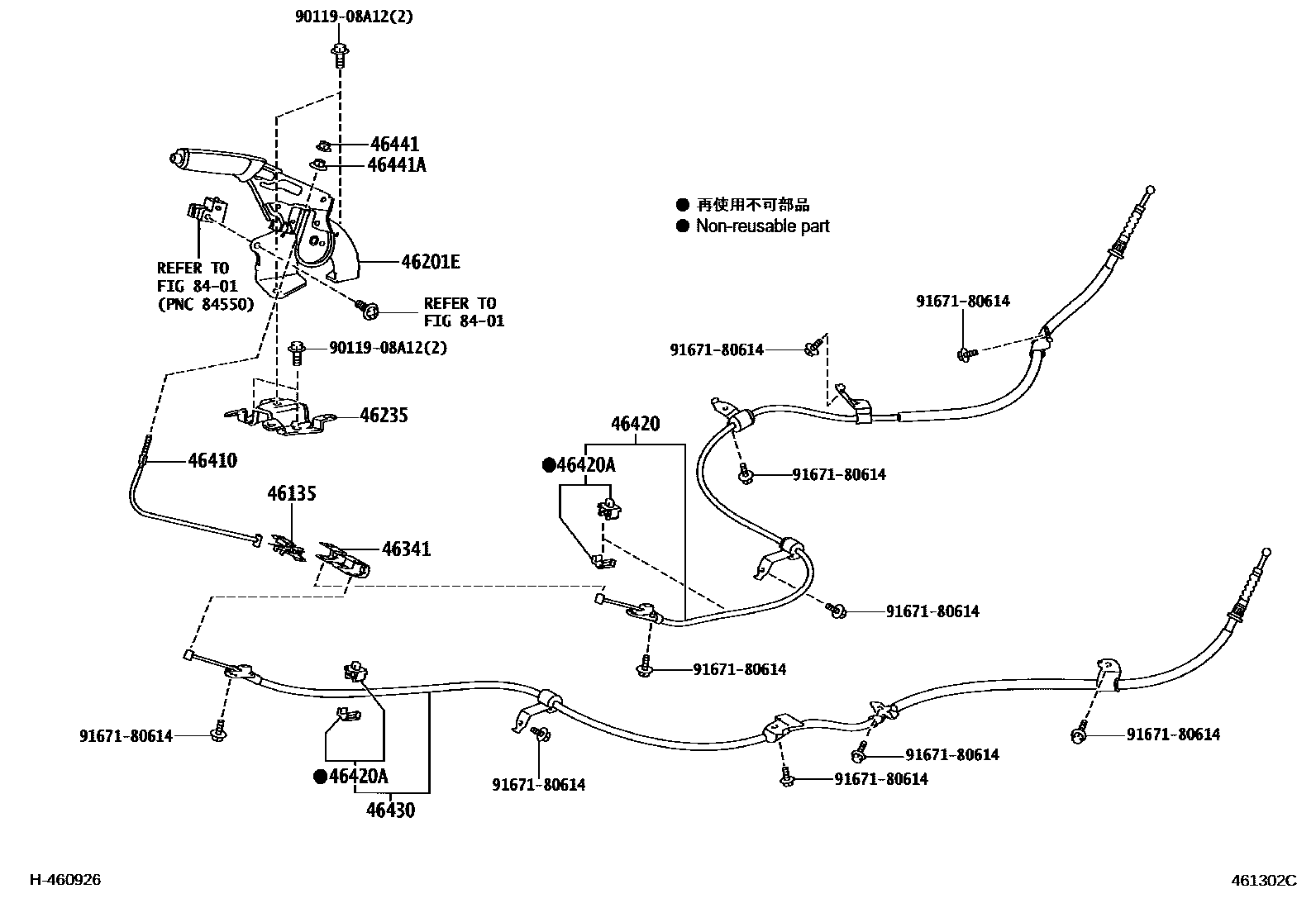

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iNRE180,ZRE18#201208-201503

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12380-B2iNRE180,ZRE18#,ZWE186201503-201805

SATIN CHROME

sub46201-12380

main46201-12380-C0iNRE180,ZRE18#201208-201503

BLACK,TRIM2#

sub46201-12380

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-12010iNRE180,ZRE18#201208-201503

46341EQUALIZER, PARKING BRAKE

main46341-12040iNRE180,ZRE18#201208-201503

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12320iNRE180,ZRE18#201208-201503

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0W110iZWE186201604

main46420-12810iNRE180,ZRE18#201208-201503

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iNRE180,ZRE18#201208-201503

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0W110iZWE186201604

main46430-12700iNRE180,ZRE18#201208-201503

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNRE180,ZRE18#201208-201503

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNRE180,ZRE18#201208-201503

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

13 parts on this diagram · 2 diagrams in section
