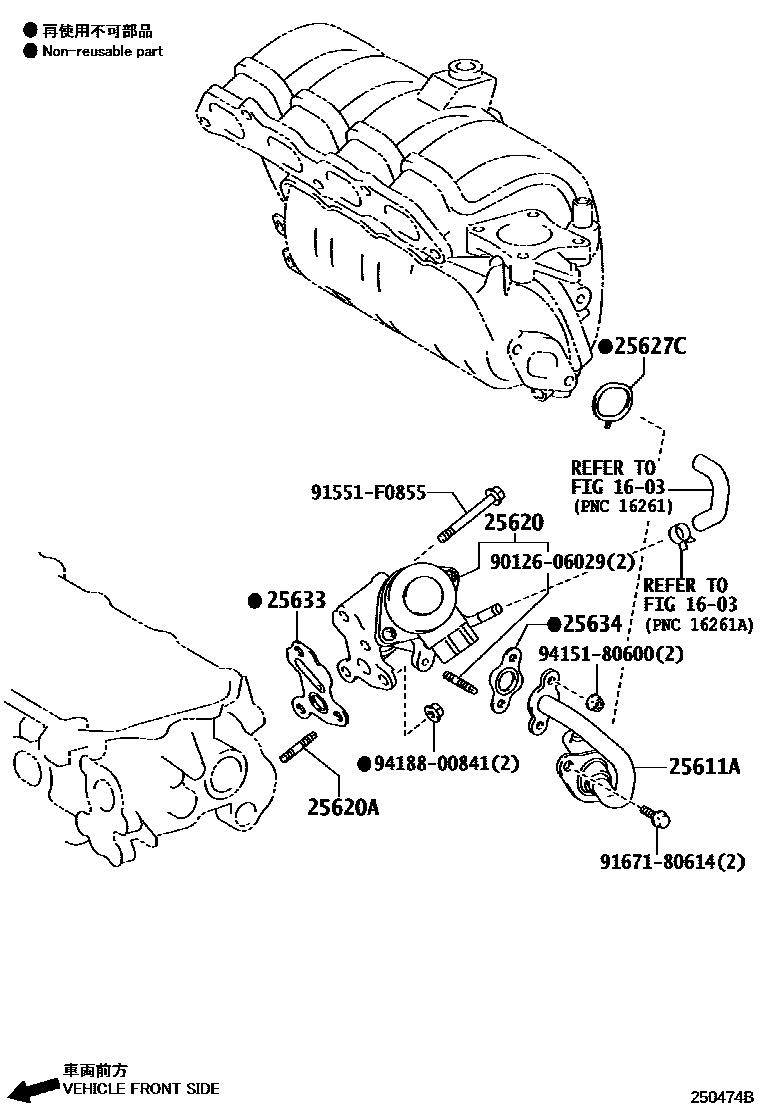

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

25611APIPE, EGR, NO.1

main25611-47011i1NRFE..NRE180201208-201503

25620VALVE ASSY, EGR

main25620-37120i2ZRFXE..ZWE186201604

main25620-47020i1NRFE..NRE180201208-201503

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08063i1NRFE..NRE180201208-201503

25627GASKET, EGR VALVE

main25627-37010i2ZRFXE..ZWE186201604

25627CGASKET(FOR EGR PIPE NO.2)

main25629-47010i1NRFE..NRE180201208-201503

25633GASKET, EGR VALVE

main25633-47010i1NRFE..NRE180201208-201503

25634GASKET, EGR PIPE

main25634-37030i2ZRFXE..ZWE186201604

main25634-47010i1NRFE..NRE180201208-201503

9012606029

main90126-06029

91551F0855

main91551-F0855

9167180614

main91671-80614

9415180600

main94151-80600

9418800841

main94188-00841

13 parts on this diagram · 2 diagrams in section
