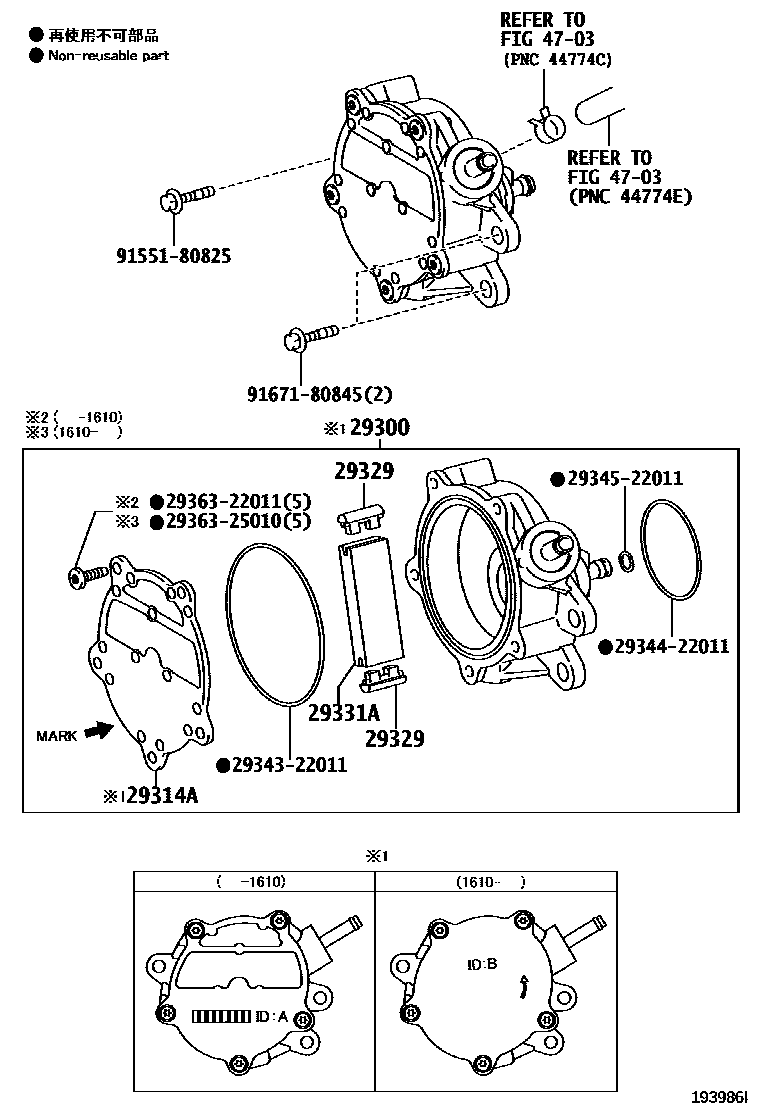

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-37010i1ZRFAE..ZRE181201208-201503

main29300-37011i1ZRFAE..ZRE181201610

MARK ID:B

29314ACOVER, END

main29314-37010i1ZRFAE..ZRE181201208-201503

main29314-37011i1ZRFAE..ZRE181201610

MARK ID:B

29329CAP, VACUUM PUMP VANE

main29329-37010×2i1ZRFAE..ZRE181201208-201503

29331AVANE, VACUUM PUMP

main29331-37010i1ZRFAE..ZRE181201208-201503

4703

2934322011RING, O VACUUM PUMP, NO.1

main29343-22011

2934422011RING, O VACUUM PUMP, NO.2

main29344-22011

2934522011RING, O VACUUM PUMP, NO.3

main29345-22011

2936322011SCREW, HOLLOW VACUUM PUMP

main29363-22011

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

9167180845

main91671-80845

12 parts on this diagram · 1 diagram in section
