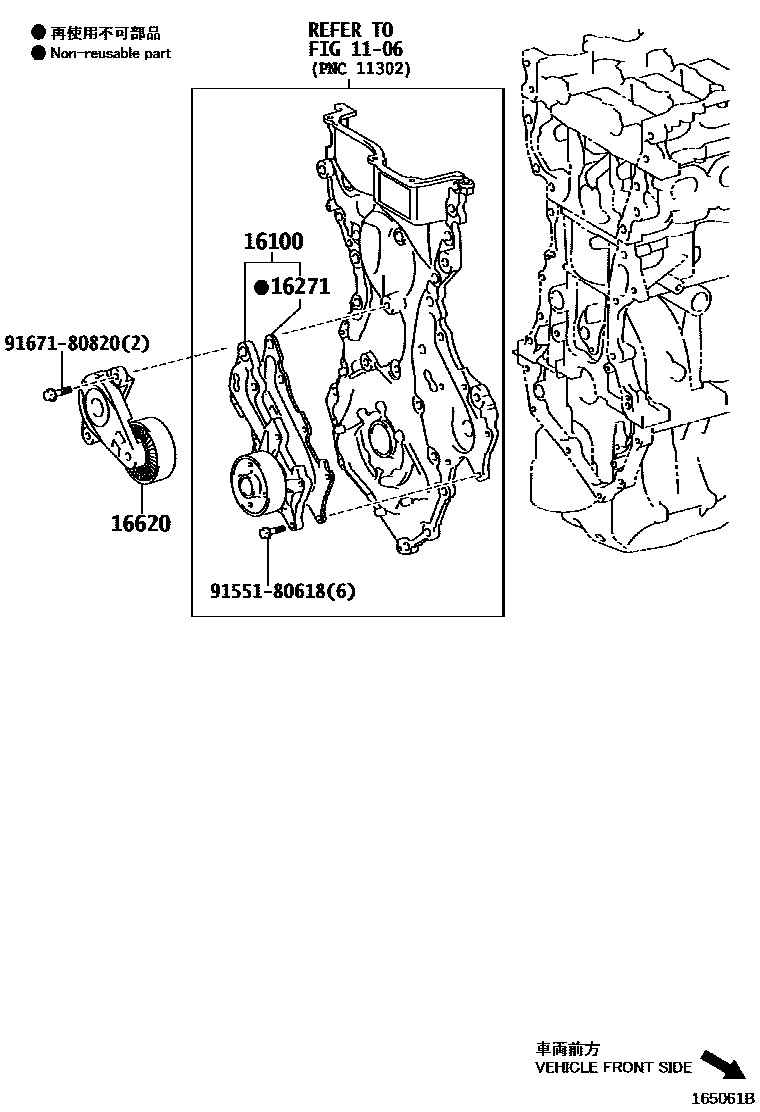

WATER PUMP

0001 1 0002 1 0004 1 0005 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39466i1ZRFAE..ZRE181201208-201503

main16100-39565i2ZRFE..ZRE182201503

main16100-80004i1NRFE..NRE180201208-201308

sub16100-80010

sub91552-81050

main16100-80010i1NRFE..NRE180201308-201805

sub16100-80019

main161A0-29015i2ZRFXE..ZWE186201604

16271GASKET, WATER PUMP

main16271-37010i1ZRFAE,2ZRFE..ZRE18#201208-201503

main16271-37020i2ZRFXE..ZWE186201604

main16271-37030i2ZRFE..ZRE182201503

main16271-47031i1NRFE..NRE180201208-201503

16620TENSIONER ASSY, V-RIBBED BELT

main16620-37011i2ZRFE..ZRE182201503-201506

sub16620-37030

main16620-37030i2ZRFE..ZRE182201507

main16620-47030i1NRFE..NRE180201208-201503

sub16620-47031

9155180618

main91551-80618

9167180820

main91671-80820

6 parts on this diagram · 4 diagrams in section
