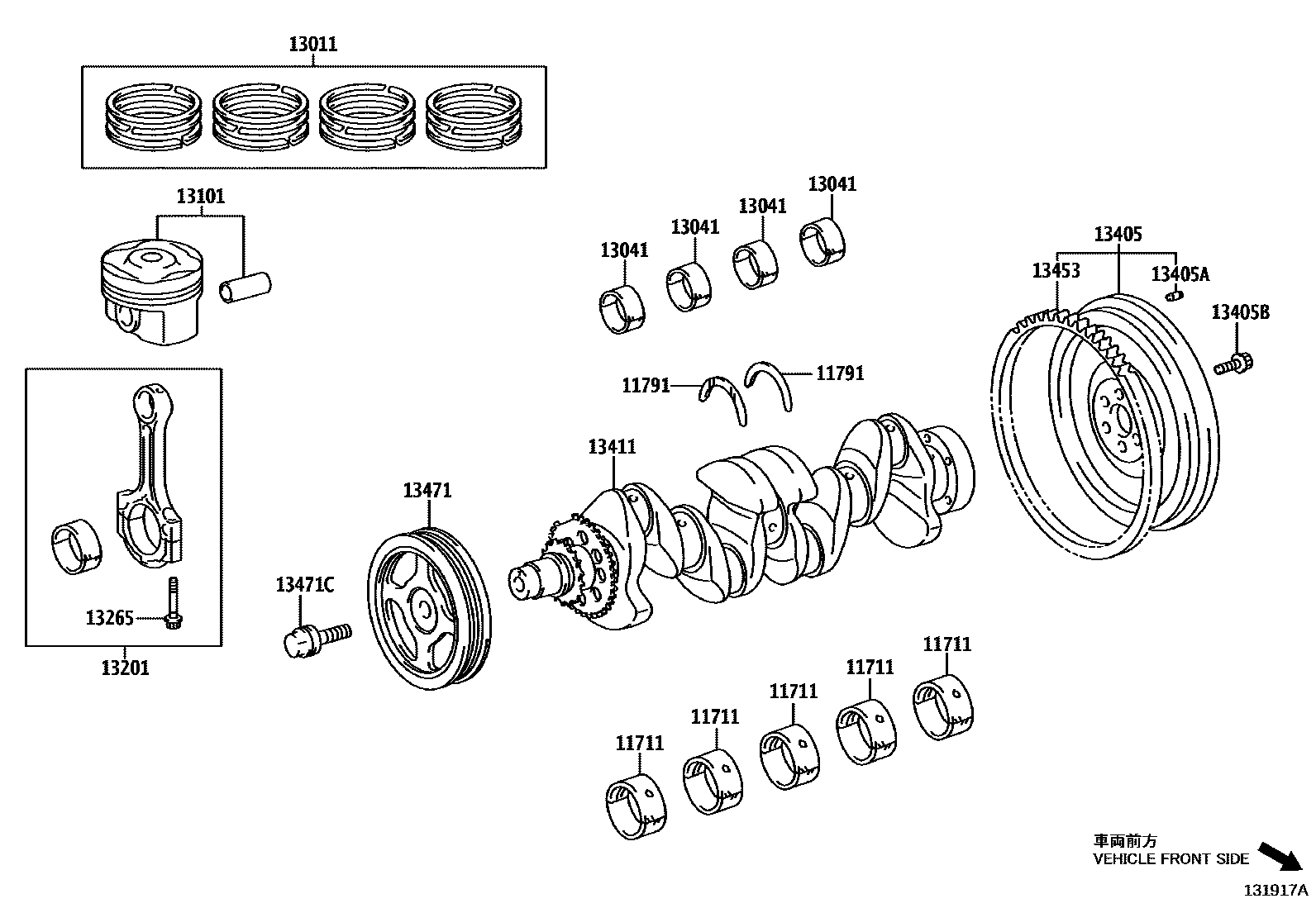

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11711BEARING, CRANKSHAFT

main11701-37020-01i1ZRFAE,2ZRFE..ZRE18#201208-201304

MARK1,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-02i1ZRFAE,2ZRFE..ZRE18#201208-201304

MARK2,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-03i1ZRFAE,2ZRFE..ZRE18#201208-201304

MARK3,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-04i1ZRFAE,2ZRFE..ZRE18#201208-201304

MARK4,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37021-01i1ZRFAE,2ZRFE..ZRE18#201304-201503

MARK1,REFER REPAIR MANUAL

main11701-37021-02i1ZRFAE,2ZR#..ZRE18#,ZWE186201304-201503

MARK2,REFER REPAIR MANUAL

main11701-37021-03i1ZRFAE,2ZRFE..ZRE18#201304-201503

MARK3,REFER REPAIR MANUAL

main11701-37021-04i1ZRFAE,2ZR#..ZRE18#,ZWE186201304-201503

MARK4,REFER REPAIR MANUAL

main11701-47012-02i1NRFE..NRE180201208-201612

MARK2,REFER REPAIR MANUAL

sub11701-47013¥2,600

main11701-47012-03i1NRFE..NRE180201208-201612

MARK3,REFER REPAIR MANUAL

sub11701-47013¥2,600

main11701-47012-04i1NRFE..NRE180201208-201612

MARK4,REFER REPAIR MANUAL

sub11701-47013¥2,600

main11701-47012-05i1NRFE..NRE180201208-201612

MARK5,REFER REPAIR MANUAL

sub11701-47013¥2,600

main11701-47013-02i1NRFE..NRE180201701

MARK2,REFER REPAIR MANUAL

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-03i1NRFE..NRE180201701

MARK3,REFER REPAIR MANUAL

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-04i1NRFE..NRE180201701

MARK4,REFER REPAIR MANUAL

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-05i1NRFE..NRE180201701

MARK5,REFER REPAIR MANUAL

sub11701-47032¥2,160

sub11701-47013¥2,600

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020i1ZRFAE,2ZRFE..ZRE18#¥1,740201412-201503

STD,NO.1

main11791-22020i1ZRFAE,2ZRFE..ZRE18#¥1,740201208-201310

STD

main11791-37010i1ZRFAE,2ZRFE..ZRE18#¥1,740201412-201503

STD,NO.2

main11791-37010i1ZRFAE,2ZRFE..ZRE18#¥1,740201310-201412

STD

main11791-47010i1NRFE..NRE180¥2,790201208-201612

STD

main11791-47011i1NRFE..NRE180¥1,740201701

STD

13011RING SET, PISTON

main13011-37090i1ZRFAE,2ZRFE..ZRE18#¥16,800201208-201408

STD

main13011-37260i2ZRFXE..ZWE186¥14,000201604-201805

STD

main13011-37290i1ZRFAE..ZRE181¥10,500201503

STD

main13011-37300i1ZRFAE,2ZRFE..ZRE18#¥10,500201408-201805

STD

main13011-47031i1NRFE..NRE180¥15,500201208-201301

STD

main13011-47032i1NRFE..NRE180¥15,500201301-201309

STD

sub13011-47033¥9,800

main13011-47033i1NRFE..NRE180¥9,800201309-201503

STD

13041BEARING, CONNECTING ROD

main13041-37010-01i1ZRFAE,2ZRFE..ZRE18#201208-201503

MARK1,REFER REPAIR MANUAL

main13041-37010-02i1ZRFAE,2ZRFE..ZRE18#201208-201503

MARK2,REFER REPAIR MANUAL

main13041-37010-03i1ZRFAE,2ZRFE..ZRE18#201208-201503

MARK3,REFER REPAIR MANUAL

main13041-47011-01i1NRFE..NRE180201208-201612

MARK1,REFER REPAIR MANUAL

sub13041-47012¥1,260

main13041-47011-02i1NRFE..NRE180201208-201612

MARK2,REFER REPAIR MANUAL

sub13041-47012¥1,260

main13041-47011-03i1NRFE..NRE180201208-201612

MARK3,REFER REPAIR MANUAL

sub13041-47012¥1,260

main13041-47012-01i1NRFE..NRE180201701

MARK1,REFER REPAIR MANUAL

sub13041-47012¥1,260

main13041-47012-02i1NRFE..NRE180201701

MARK2,REFER REPAIR MANUAL

sub13041-47012¥1,260

main13041-47012-03i1NRFE..NRE180201701

MARK3,REFER REPAIR MANUAL

sub13041-47012¥1,260

13101PISTON SUB-ASSY, W/PIN

main13101-0T080i1ZRFAE..ZRE181201208-201408

STD

main13101-0T280i1ZRFAE..ZRE181201408-201503

STD

main13101-0T290i1ZRFAE..ZRE181201503

STD

main13101-37071i2ZRFE..ZRE182¥6,300201208-201409

STD

main13101-37240i2ZRFXE..ZWE186¥4,310201604

STD

main13101-37290i2ZRFE..ZRE182¥5,200201409-201805

STD

main13101-47021i1NRFE..NRE180¥6,000201208-201301

STD

main13101-47022i1NRFE..NRE180¥6,000201301-201309

STD

main13101-47110i1NRFE..NRE180¥3,710201309-201503

STD

13201ROD SUB-ASSY, CONNECTING

main13201-09A30i1ZRFAE,2ZRFE..ZRE18#¥12,800201208-201503

MADE IN EUROPE

main13201-09A30i1ZRFAE,2ZR#..ZRE18#,ZWE186¥12,800201503

(L)

main13201-39185i1ZRFAE,2ZRFE..ZRE18#¥8,000201208-201503

MADE IN JAPAN

main13201-39185i1ZRFAE,2ZR#..ZRE18#,ZWE186¥8,000201503

(J)

main13201-49086i1NRFE..NRE180¥10,100201208-201608

sub13201-49087¥6,300

main13201-49087i1NRFE..NRE180¥6,300201608

13265BOLT, CONNECTING ROD

main13265-21020i1NRFE..NRE180¥300201208-201503

main13265-22020i1ZRFAE,2ZRFE..ZRE18#¥390201208-201503

sub13265-22040¥300

13405FLYWHEEL SUB-ASSY

main13405-37050i1ZRFAE,2ZRFE..ZRE18#..6F¥23,800201208-201402

sub13405-37051¥13,800

main13405-37051i1ZRFAE,2ZRFE..ZRE18#..6F¥13,800201403-201503

main13405-47030i1NRFE..NRE180¥18,200201208-201503

main13451-37080i2ZRFXE..ZWE186¥16,500201604

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i1NRFE..NRE180¥140201208-201503

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01027i2ZRFXE..ZWE186;1ZRFAE,2ZRFE..ZRE18#..6F¥100201208-201503

main90913-01029i1NRFE..NRE180¥110201208-201503

13411CRANKSHAFT

main13401-0T061i2ZR#..ZRE182,ZWE186201312-201503

(L)

main13401-37010i1ZRFAE..ZRE181¥86,100201208-201309

sub13401-37011

main13401-37011i1ZRFAE..ZRE181201309-201503

main13401-37020i2ZRFE..ZRE182¥93,100201208-201309

(J)

sub13401-37021¥58,700

main13401-37021i2ZR#..ZRE182,ZWE186¥58,700201309-201503

(J)

main13401-47011i1NRFE..NRE180¥47,800201208-201503

13453GEAR, FLYWHEEL RING

main13453-0T010i1ZRFAE,2ZRFE..ZRE18#..6F¥5,500201208-201503

(L)

main13453-10010i1NRFE..NRE180¥4,560201208-201503

(J)

main13453-10010i1NRFE..NRE180¥4,560201503

13471PULLEY, CRANKSHAFT

main13470-37041i1ZRFAE,2ZRFE..ZRE18#¥13,900201310-201708

sub13470-37042¥10,400

main13470-37042i1ZRFAE,2ZRFE..ZRE18#¥10,400201709

main13470-37050i1ZRFAE,2ZRFE..ZRE18#¥16,700201208-201310

sub13470-37041¥13,900

main13470-37060i2ZRFXE..ZWE186¥10,400201604

main13470-47070i1NRFE..NRE180¥8,100201208-201503

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NRFE..NRE180¥240201208-201503

main90119-14106i1ZRFAE,2ZRFE..ZRE18#¥360201208-201504

main90119-14175i1ZRFAE,2ZR#..ZRE18#,ZWE186¥490201505-201805
