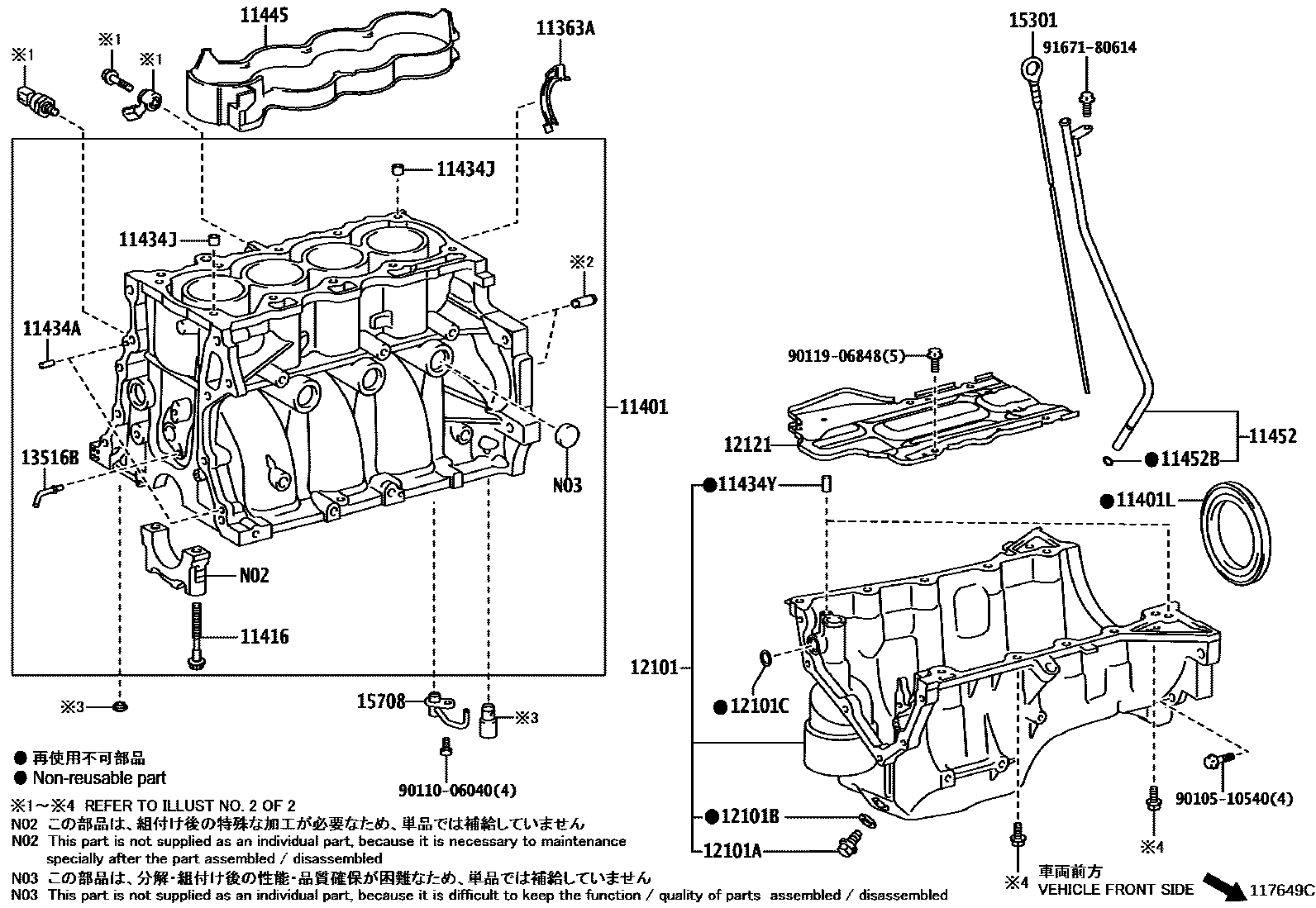

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1ZRFAE,2ZR#..ZRE18#,ZWE186201208-201503

TYPE A:REFER ILLUST.

main11363-33010i1ZRFAE,2ZR#..ZRE18#,ZWE186201208-201503

TYPE B:REFER ILLUST.

main11363-40010i1NRFE..NRE180201208-201503

11401BLOCK SUB-ASSY, CYLINDER

main11410-09455i2ZRFE..ZRE182201208-201503

(L)

sub11410-09456

main11410-39047i1ZRFAE..ZRE181201208-201612

sub11410-39235

main11410-39057i2ZR#..ZRE182,ZWE186201503-201612

sub11410-39245

main11410-39057i2ZRFE..ZRE182201208-201503

(J)

sub11410-39245

main11410-39235i1ZRFAE..ZRE181201612

sub11410-39236

main11410-39245i2ZR#..ZRE182,ZWE186201612

sub11410-39246

main11410-49017i1NRFE..NRE180201208-201307

sub11410-49018

main11410-49018i1NRFE..NRE180201307-201309

sub11410-49045

main11410-49045i1NRFE..NRE180201309-201503

11401LSEAL, ENGINE REAR OIL

main90311-76002i1ZRFAE,2ZRFE..ZRE18#201208-201303

main90311-78002i1ZRFAE,2ZRFE..ZRE18#201303-201407

main90311-78003i1NRFE..NRE180201208-201305

sub90311-78005

main90311-78005i1NRFE..NRE180201305-201503

main90311-78008i1ZRFAE,2ZR#..ZRE18#,ZWE186201408-201503

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163i1ZRFAE,2ZRFE..ZRE18#201208-201503

main90910-02175i1NRFE..NRE180201208-201503

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i1ZRFAE,2ZR#..ZRE18#,ZWE186201208-201503

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i1ZRFAE,2ZRFE..ZRE18#201208-201503

main90253-13017i1NRFE..NRE180201208-201503

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074i1NRFE..NRE180201208-201503

main90250-08120i2ZRFXE..ZWE186201604

main90250-08120i1ZRFAE,2ZRFE..ZRE18#201208-201503

L=18

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-47010i1NRFE..NRE180201208-201503

11452GUIDE, OIL LEVEL GAGE

main11409-47012i1NRFE..NRE180201208-201503

main11452-37011i1ZRFAE,2ZRFE..ZRE18#201208-201503

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1ZRFAE,2ZR#..ZRE18#,ZWE186201208-201503

main96741-19010i1NRFE..NRE180201208-201503

12101PAN SUB-ASSY, OIL

main12101-47131i1NRFE..NRE180201208-201503

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZRFAE,2ZRFE..ZRE18#201208-201503

main90341-12032i1NRFE..NRE180201208-201503

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ZRFAE,2ZRFE..ZRE18#201208-201503

12101CRING, O(FOR OIL PAN)

main90301-19023i1NRFE..NRE180201208-201503

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-B1060i1NRFE..NRE180201208-201503

13516BJET, OIL

main13516-40010i1NRFE..NRE180201208-201503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-37010i1ZRFAE,2ZRFE..ZRE18#201308-201503

main15301-37030i1ZRFAE,2ZRFE..ZRE18#201208-201308

sub15301-37010

main15301-47050i1NRFE..NRE180201208-201503

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-37011i1ZRFAE,2ZRFE..ZRE18#201208-201211

sub15708-37012

main15708-37012i1ZRFAE,2ZRFE..ZRE18#201211-201503

main15708-47030i1NRFE..NRE180201208-201307

sub15708-47031

main15708-47031i1NRFE..NRE180201307-201502

sub15708-47080

main15708-47080i1NRFE..NRE180201502-201805

sub15708-47081

9010510540

main90105-10540

9011006040

main90110-06040

9011906848

main90119-06848

9167180614

main91671-80614

22 parts on this diagram · 6 diagrams in section
