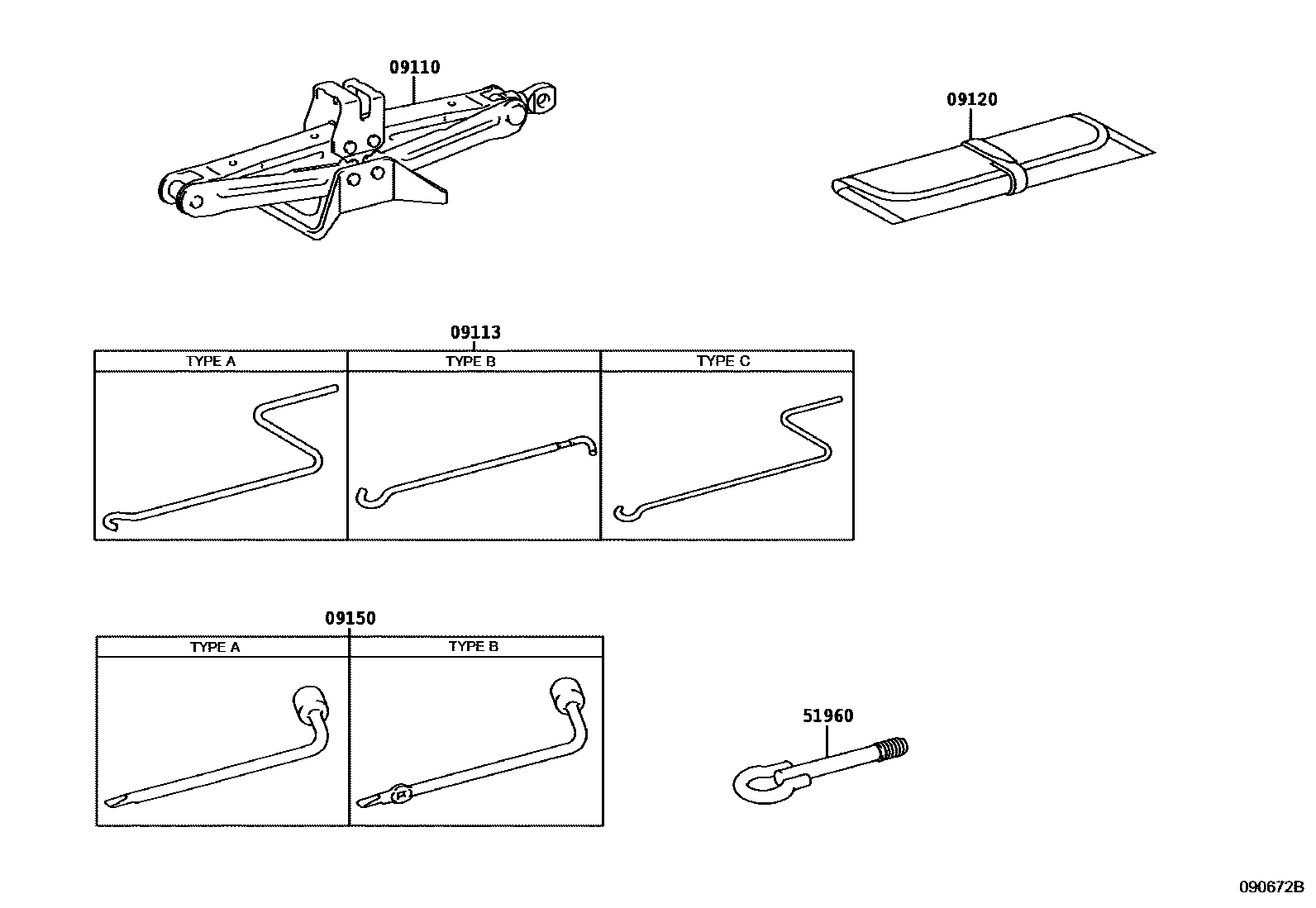

STANDARD TOOL

09110JACK ASSY

main09110-12100iZRE182,ZWE186201208-201805

main09111-30190iNRE180,ZRE181201208-201805

09113HANDLE, JACK

main09113-20050iZRE182201208-201412

SPARE TIRE-GROUND TIRE(STEEL),TYPE A:REFER ILLUST.

main09113-20050iNRE180,ZRE181201208-201412

TYPE A:REFER ILLUST.

main09113-30050iNRE180,ZRE181201412-201503

TYPE C:REFER ILLUST.

main09113-30050iZRE182201412-201503

SPARE TIRE-GROUND TIRE(STEEL),TYPE C:REFER ILLUST.

main09113-42030iZRE182201208-201503

TYPE B:REFER ILLUST.

09120BAG, TOOL

main09120-10040iZRE182201208-201503

09150WRENCH, HUB NUT BOX

main09150-35070iNRE180,ZRE181201208-201303

TYPE A:REFER ILLUST.

main09150-35070iNRE180,ZRE181201208-201303

SPARE TIRE-GROUND TIRE(STEEL),TYPE A:REFER ILLUST.

main09150-40010iZRE182201304-201805

SPARE TIRE-GROUND TIRE(STEEL),TYPE A:REFER ILLUST.

main09150-40010iNRE180,ZRE181201304-201805

TYPE A:REFER ILLUST.

main09150-42010iZRE182201208-201805

TYPE B:REFER ILLUST.

51960HOOK ASSY, FRONT

main51960-12090iNRE180,ZRE18#201208-201507

sub51960-12100

main51960-12100iNRE180,ZRE18#,ZWE186201507

5 parts on this diagram · 1 diagram in section
