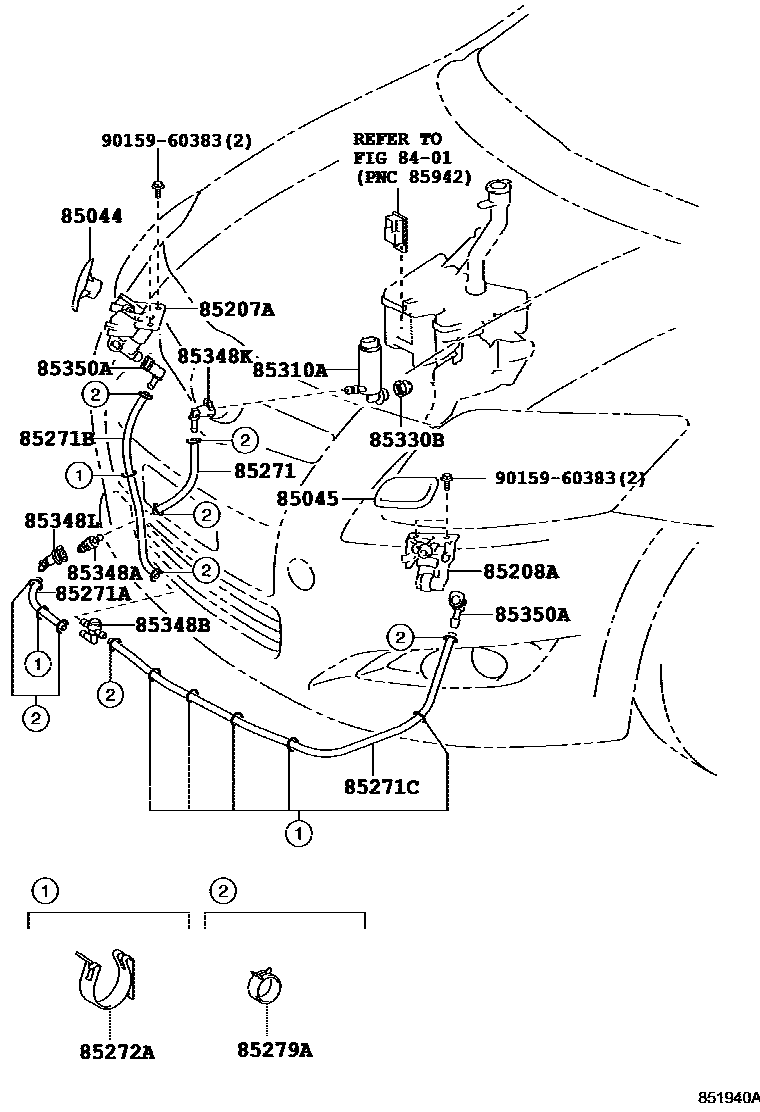

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
HEADLAMP-DISCHARGE,SUPER WHITE 2,040
HEADLAMP-DISCHARGE,SILVER ME.,1C0
HEADLAMP-DISCHARGE,GRAY ME.,1G3
HEADLAMP-DISCHARGE,BLACK MC.,209
HEADLAMP-DISCHARGE,RED M.M.,3R3
HEADLAMP-DISCHARGE,LT.BLUE M.M.,8S1
HEADLAMP-DISCHARGE,DK.BLUE MC.,8S6
HEADLAMP-DISCHARGE,DK.BLUE ME.,8T8
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
HEADLAMP-DISCHARGE,SUPER WHITE 2,040
HEADLAMP-DISCHARGE,SILVER ME.,1C0
HEADLAMP-DISCHARGE,GRAY ME.,1G3
HEADLAMP-DISCHARGE,BLACK MC.,209
HEADLAMP-DISCHARGE,RED M.M.,3R3
HEADLAMP-DISCHARGE,LT.BLUE M.M.,8S1
HEADLAMP-DISCHARGE,DK.BLUE MC.,8S6
HEADLAMP-DISCHARGE,DK.BLUE ME.,8T8
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-DISCHARGE
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP-DISCHARGE
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
*H,L=1290,HEADLAMP-DISCHARGE
sub85271-0W040
L=300,HEADLAMP-DISCHARGE
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85272ACLAMP, HEADLAMP CLEANER, NO.1
85279AJOINT, HEADLAMP CLEANER HOSE
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-DISCHARGE
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP-DISCHARGE
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
9015960383
main90159-60383
19 parts on this diagram · 1 diagram in section
