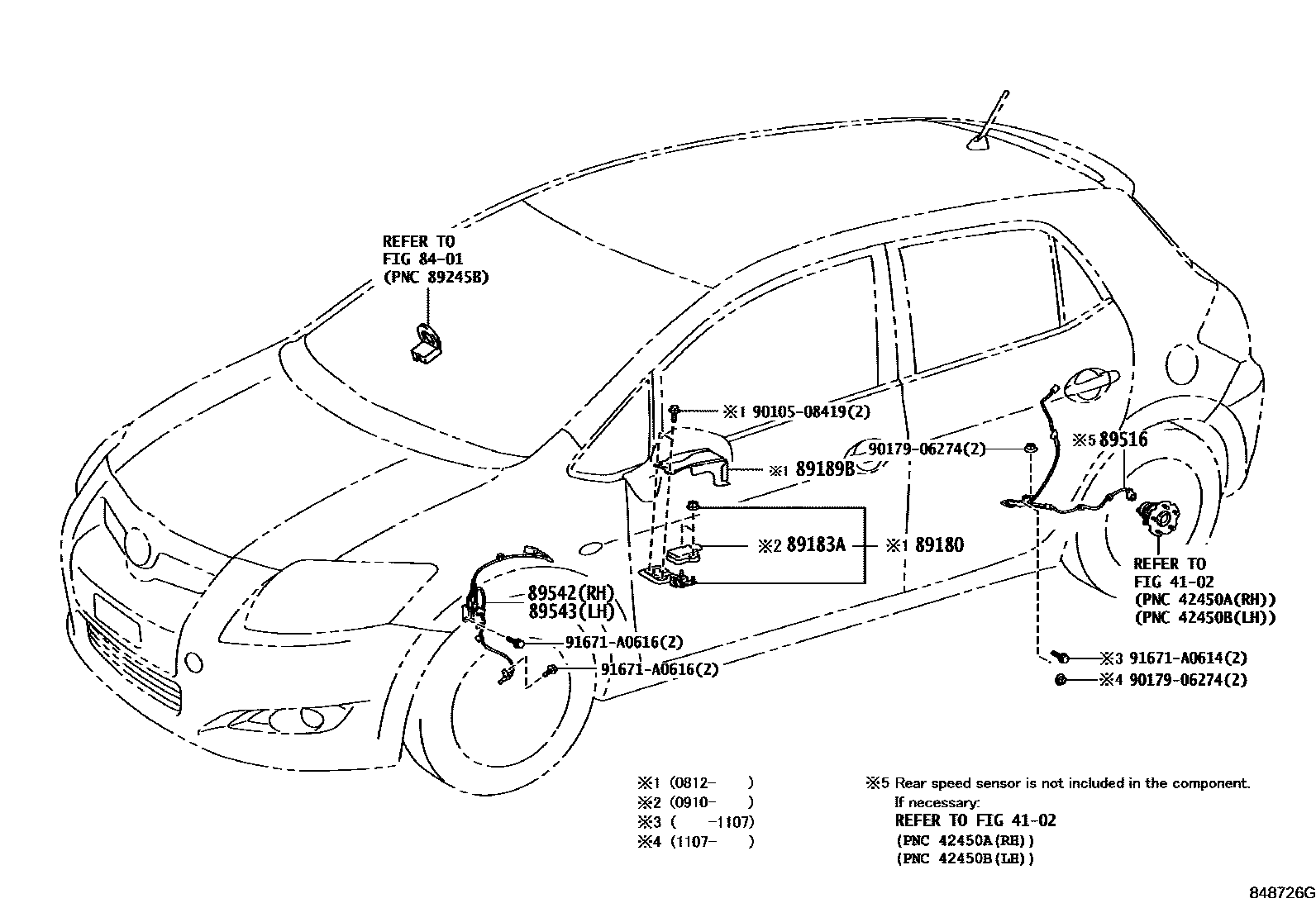

ABS & VSC

4102

8401

89180SENSOR ASSY, YAWRATE

main89180-12080supersedes 89180-12140iZRE152200812-200910

VSC-WITH(W/CUT OFF SWITCH)

89183ASENSOR, YAWRATE

89189BBRACKET, YAWRATE SENSOR

89516WIRE, SKID CONTROL SENSOR

main89516-12051iZRE152200910-201107

RH

sub90179-06178

main89516-12061iZRE152200910-201107

LH

sub90179-06178

main89516-12070iZRE152201107-201208

RH

main89516-12080iZRE152201107-201208

LH

main89516-12180iZRE152200812-200909

RH

main89516-12190iZRE152200812-200909

LH

89542SENSOR, SPEED, FRONT RH

main89542-12080iZRE152200703-200812

89543SENSOR, SPEED, FRONT LH

main89543-12080iZRE152200703-200812

9010508419

main90105-08419

9017906274

main90179-06274

91671A0614

main91671-A0614

91671A0616

main91671-A0616

12 parts on this diagram · 1 diagram in section
