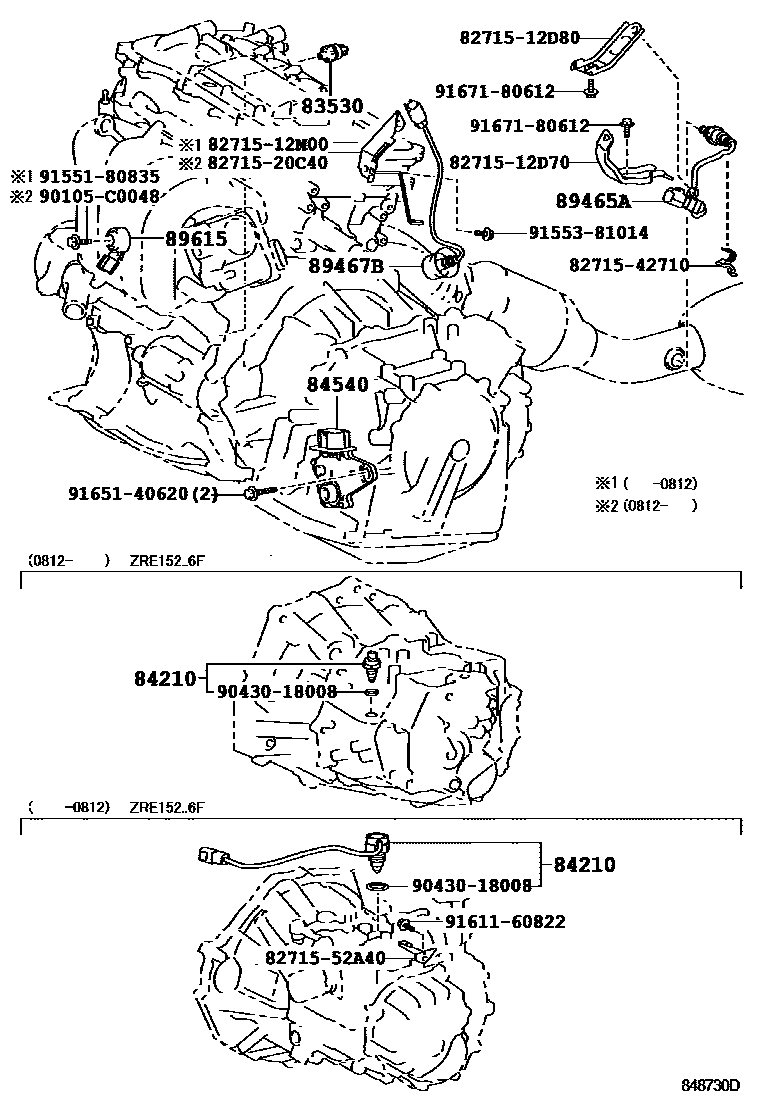

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRE152200703-200910

VALEO

main83530-0E010iZRE152201110

(L),DENSO

main83530-28020iZRE152200910

(J),DENSO

main83530-28020iZRE152200703-200910

DENSO

main83530-60020iZRE152200703-200910

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZRE152..6F200812-201204

sub84210-52050

main84210-52010iZRE152..6F200703-200812

main84210-52050iZRE152..6F201205-201208

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE152..4FC200703-201208

89465ASENSOR, OXYGEN NO.2

main89465-12800iZRE152200703-201208

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRE152200703-200910

89615SENSOR, KNOCK CONTROL

main89615-02020iZRE152200812-200910

main89615-20090iZRE152200703-200812

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271512D80BRACKET,WIRING HARNESS CLAMP

main82715-12D80

8271512M00BRACKET,WIRING HARNESS CLAMP

main82715-12M00

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

90105C0048

main90105-C0048

9043018008

main90430-18008

9155180835

main91551-80835

9155381014

main91553-81014

9161160822

main91611-60822

9165140620

main91651-40620

9167180612

main91671-80612

19 parts on this diagram · 7 diagrams in section
