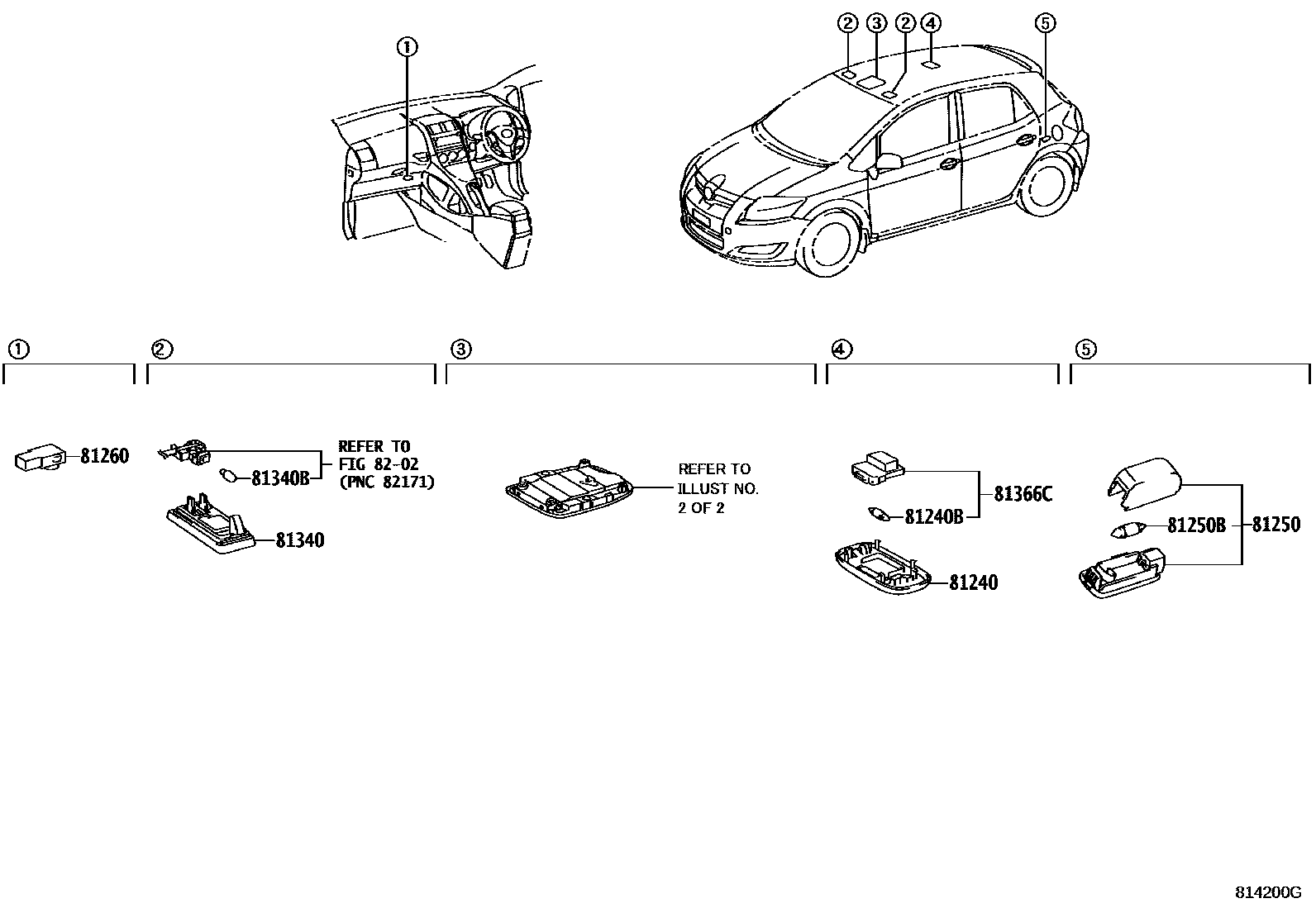

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1iZRE152200703-201208

LT.GRAY,TRIM1#

main81240-52040-E0iZRE152..SOL200703-201208

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZRE152200703-200910

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81240-05041iZRE152200703-201010

sub81330-05050

main81330-05050iZRE152201010

sub81330-02060

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iZRE152200703-200910

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZRE152200703-200910

81340LAMP ASSY, VANITY

main81340-30100-B0iZRE152200703-200910

LT.GRAY

main81340-30100-B0iZRE152200910-201208

LT.GRAY,TRIM1#

main81340-30100-E1iZRE152..SOL200910-201208

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062iZRE152200703-201208

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iZRE152200703-201208

8202

9 parts on this diagram · 2 diagrams in section
