HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
HEADLAMP-DISCHARGE
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
HEADLAMP-DISCHARGE
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
81110LBULB, DISCHARGE HEADLAMP
81116CBRACKET, HEADLAMP, RH
81118ABRACKET, HEADLAMP, RH
81134GASKET, HEADLAMP
main90075-68007
81135CCOVER, HEADLAMP BACK, NO.1
81156ABRACKET, HEADLAMP, LH
81158BRACKET, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
HEADLAMP-DISCHARGE
9007502727
main90075-02727
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142

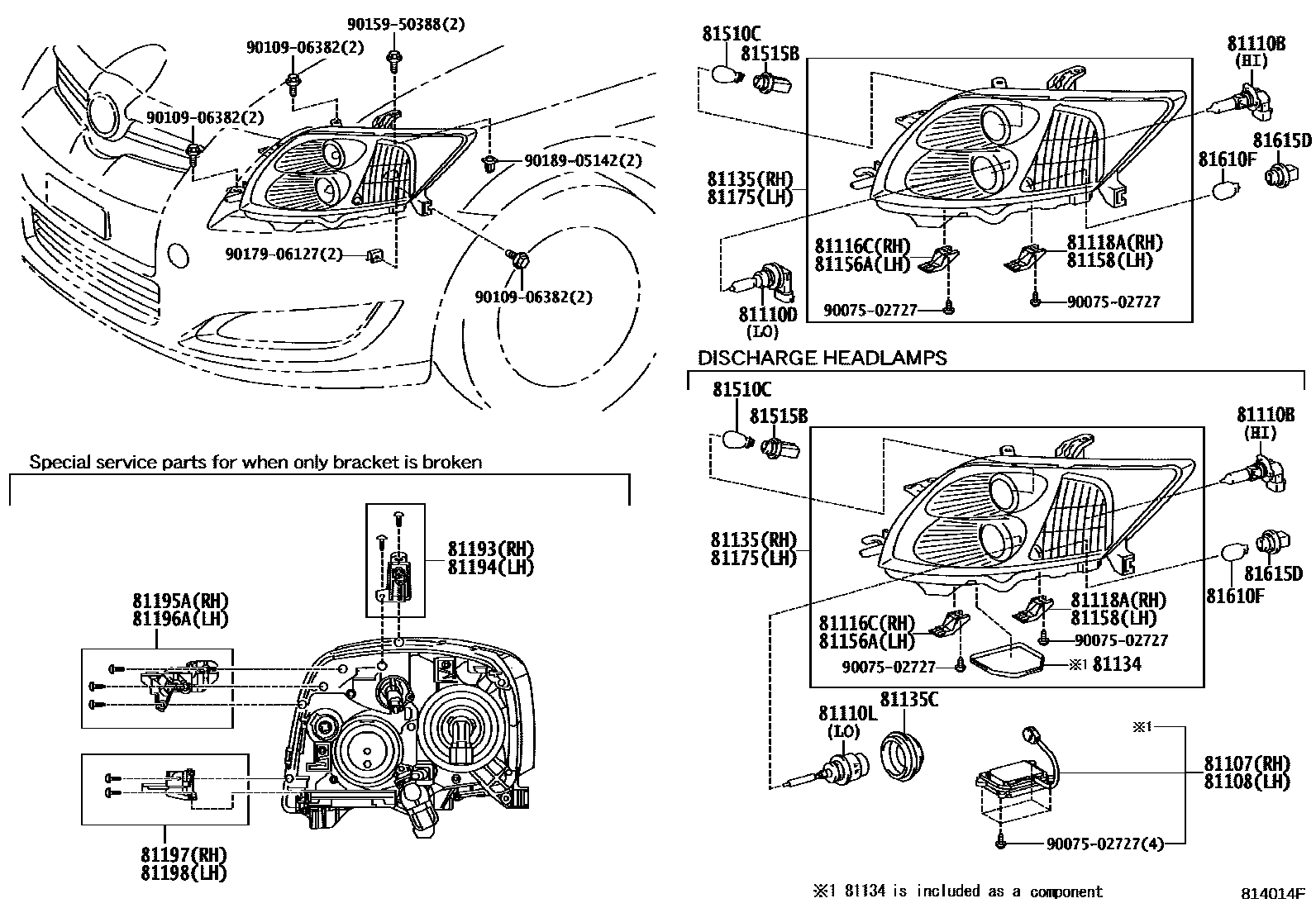

28 parts on this diagram · 2 diagrams in section
