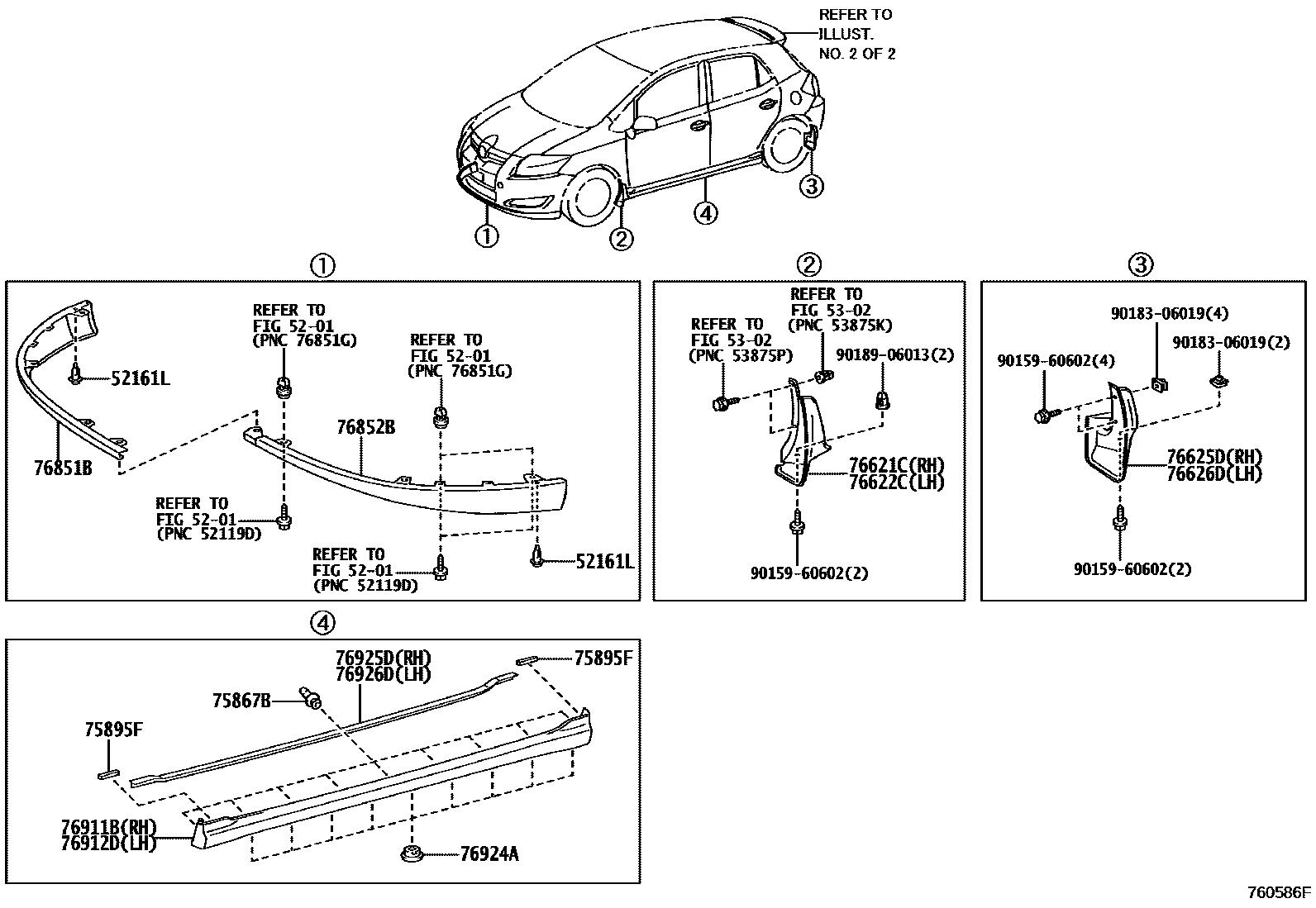

MUDGUARD & SPOILER
5201
52161LPIECE, FRONT SPOILER
sub52161-0K040
5302
75867BCLIP, ROCKER PANEL MOULDING
REAR SPOILER-WITH(LARGE TYPE)
75895FTAPE, MOULDING, NO.1
REAR SPOILER-WITH(LARGE TYPE)
76621CMUDGUAD, FRONT FENDER, RH
76622CMUDGUARD, FRONT FENDER, LH
76625DMUDGUARD, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
SIDE MUD GUARD-WITH(BODY-COLOR),SUPER WHITE 2,040
SILVER ME.,1C0
SIDE MUD GUARD-WITH(BODY-COLOR),SILVER ME.,1C0
GRAY ME.,1G3
SIDE MUD GUARD-WITH(BODY-COLOR),GRAY ME.,1G3
BLACK MC.,209
SIDE MUD GUARD-WITH(BODY-COLOR),BLACK MC.,209
SIDE MUD GUARD-WITH(BODY-COLOR),RED M.M.,3R3
RED M.M.,3R3
SIDE MUD GUARD-WITH(BODY-COLOR),LT.BLUE M.M.,8S1
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
SIDE MUD GUARD-WITH(BODY-COLOR),DK.BLUE MC.,8S6
SIDE MUD GUARD-WITH(BODY-COLOR),DK.BLUE ME.,8T8
DK.BLUE ME.,8T8
76626DMUDGUARD, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
SIDE MUD GUARD-WITH(BODY-COLOR),SUPER WHITE 2,040
SILVER ME.,1C0
SIDE MUD GUARD-WITH(BODY-COLOR),SILVER ME.,1C0
SIDE MUD GUARD-WITH(BODY-COLOR),GRAY ME.,1G3
GRAY ME.,1G3
SIDE MUD GUARD-WITH(BODY-COLOR),BLACK MC.,209
BLACK MC.,209
RED M.M.,3R3
SIDE MUD GUARD-WITH(BODY-COLOR),RED M.M.,3R3
SIDE MUD GUARD-WITH(BODY-COLOR),LT.BLUE M.M.,8S1
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
SIDE MUD GUARD-WITH(BODY-COLOR),DK.BLUE MC.,8S6
DK.BLUE ME.,8T8
SIDE MUD GUARD-WITH(BODY-COLOR),DK.BLUE ME.,8T8
76851BSPOILER, FRONT, RH
SUPER WHITE 2,040
REAR SPOILER-WITH(LARGE TYPE),SUPER WHITE 2,040
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,SUPER WHITE 2,040
SILVER ME.,1F7
REAR SPOILER-WITH(LARGE TYPE),SILVER ME.,1F7
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,SILVER ME.,1F7
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,GRAY ME.,1G3
GRAY ME.,1G3
REAR SPOILER-WITH(LARGE TYPE),GRAY ME.,1G3
REAR SPOILER-WITH(LARGE TYPE),BLACK MC.,209
BLACK MC.,209
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,BLACK MC.,209
RED M.M.,3R3
REAR SPOILER-WITH(LARGE TYPE),RED M.M.,3R3
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,RED M.M.,3R3
BLUE ME.,8T4
REAR SPOILER-WITH(LARGE TYPE),BLUE ME.,8T4
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,BLUE ME.,8T4
BLUE ME.,8T7
REAR SPOILER-WITH(LARGE TYPE),BLUE ME.,8T7
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,BLUE ME.,8T7
LT.BLUE M.M.,8S1
REAR SPOILER-WITH(LARGE TYPE),LT.BLUE M.M.,8S1
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,LT.BLUE M.M.,8S1
REAR SPOILER-WITH(LARGE TYPE)
76852BSPOILER, FRONT, LH
SUPER WHITE 2,040
REAR SPOILER-WITH(LARGE TYPE),SUPER WHITE 2,040
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,SUPER WHITE 2,040
SILVER ME.,1F7
REAR SPOILER-WITH(LARGE TYPE),SILVER ME.,1F7
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,SILVER ME.,1F7
GRAY ME.,1G3
REAR SPOILER-WITH(LARGE TYPE),GRAY ME.,1G3
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,GRAY ME.,1G3
BLACK MC.,209
REAR SPOILER-WITH(LARGE TYPE),BLACK MC.,209
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,BLACK MC.,209
RED M.M.,3R3
REAR SPOILER-WITH(LARGE TYPE),RED M.M.,3R3
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,RED M.M.,3R3
BLUE ME.,8T4
REAR SPOILER-WITH(LARGE TYPE),BLUE ME.,8T4
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,BLUE ME.,8T4
REAR SPOILER-WITH(LARGE TYPE),BLUE ME.,8T7
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,BLUE ME.,8T7
BLUE ME.,8T7
LT.BLUE M.M.,8S1
REAR SPOILER-WITH(LARGE TYPE),LT.BLUE M.M.,8S1
REAR SPOILER-WITH(LARGE TYPE)&FRONT FOG LAMP-MOP,LT.BLUE M.M.,8S1
REAR SPOILER-WITH(LARGE TYPE)
76911BMUDGUARD, SIDE, RH
REAR SPOILER-WITH(LARGE TYPE),SUPER WHITE 2,040
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),SILVER ME.,1C0
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),GRAY ME.,1G3
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),BLACK MC.,209
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),RED M.M.,3R3
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),LT.BLUE M.M.,8S1
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),DK.BLUE MC.,8S6
sub76911-12907
REAR SPOILER-WITH(LARGE TYPE),DK.BLUE ME.,8T8
sub76911-12907
76912DMUDGUARD, SIDE, LH
REAR SPOILER-WITH(LARGE TYPE),SUPER WHITE 2,040
sub76912-12906
REAR SPOILER-WITH(LARGE TYPE),SILVER ME.,1C0
sub76912-12906
REAR SPOILER-WITH(LARGE TYPE),GRAY ME.,1G3
sub76912-12906
REAR SPOILER-WITH(LARGE TYPE),BLACK MC.,209
sub76912-12906
REAR SPOILER-WITH(LARGE TYPE),LT.BLUE M.M.,8S1
sub76912-12906
REAR SPOILER-WITH(LARGE TYPE),DK.BLUE MC.,8S6
sub76912-12906
REAR SPOILER-WITH(LARGE TYPE),DK.BLUE ME.,8T8
sub76912-12906
76924ARETAINER, SIDE MUDGUARD, NO.2
REAR SPOILER-WITH(LARGE TYPE)
REAR SPOILER-WITH(LARGE TYPE)
76925DPROTECTOR, SIDE MUDGUARD, RH
REAR SPOILER-WITH(LARGE TYPE),LT. GRAY,040 ,1C0 ,8S1
LT. GRAY,040 ,1C0 ,8S1
LT. GRAY,040 ,1F7 ,8S1 ,8T4
BLACK,1G3 ,209 ,3R3 ,8S6 ,8T8
REAR SPOILER-WITH(LARGE TYPE),BLACK,1G3 ,209 ,3R3 ,8S6 ,8T8
BLACK,1G3 ,209 ,3R3 ,8S6 ,8T7
76926DPROTECTOR, SIDE MUDGUARD, LH
LT. GRAY,040 ,1F7 ,8S1 ,8T4
LT. GRAY,040 ,1C0 ,8S1
REAR SPOILER-WITH(LARGE TYPE),LT. GRAY,040 ,1C0 ,8S1
REAR SPOILER-WITH(LARGE TYPE),BLACK,1G3 ,209 ,3R3 ,8S6 ,8T8
BLACK,1G3 ,209 ,3R3 ,8S6 ,8T7
BLACK,1G3 ,209 ,3R3 ,8S6 ,8T8
9015960602
main90159-60602
9018306019
main90183-06019
9018906013
main90189-06013
19 parts on this diagram · 3 diagrams in section
