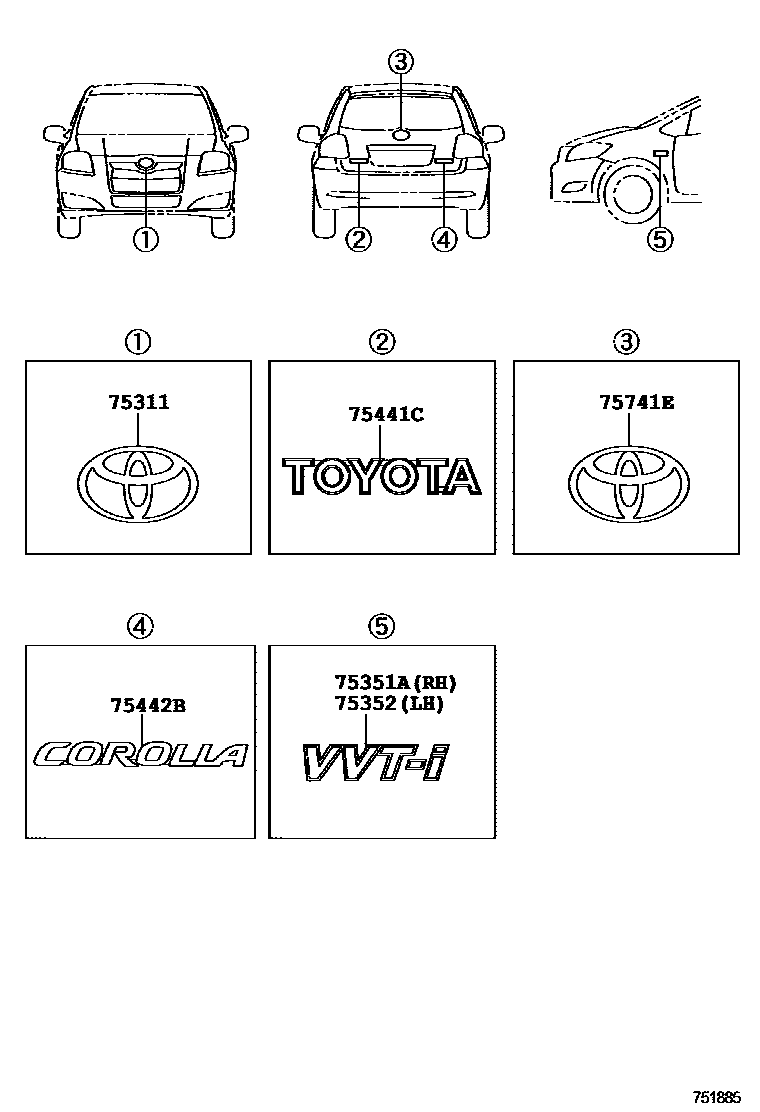

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-12400iZRE152200910-201202

main75301-12490iZRE152201202-201208

sub75301-12400

main75311-12A10iZRE152200703-200910

75351AEMBLEM, FRONT FENDER

main75351-12180iZRE152200703-200910

sub75443-33380

75352BASE, FRONT FENDER EMBLEM

main75352-12040iZRE152200703-200910

sub75443-33380

75441CPLATE, BACK DOOR NAME

main75441-12880iZRE152200703-200910

TOYOTA

75442BPLATE, BACK DOOR NAME, NO.2

main75442-12A00iZRE152200703-201112

COROLLA

sub75442-12A01

main75442-12A01iZRE152201201

COROLLA

75741EEMBLEM, SYMBOL

main90975-02074iZRE152200703-200910

main90975-02176iZRE152201201

main90975-02179iZRE152200910-201201

6 parts on this diagram · 1 diagram in section
