SEAT BELT & CHILD RESTRAINT SEAT

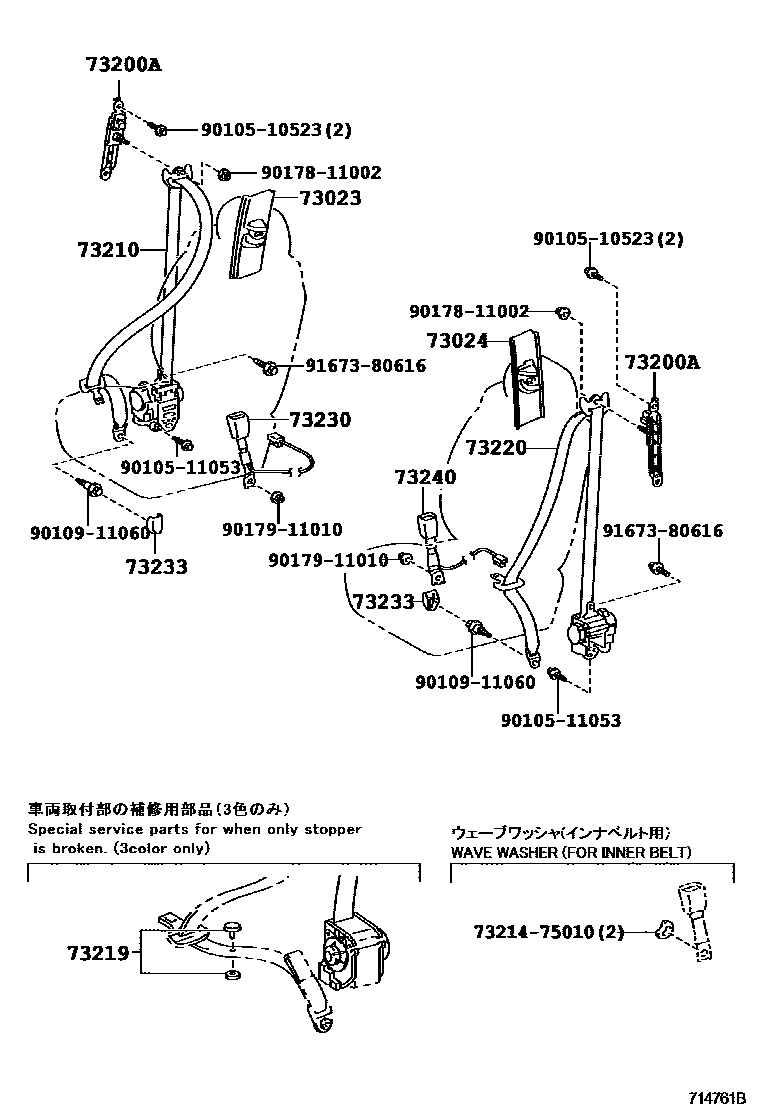

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12010-B0iZRE152200703-201208

LT.GRAY,TRIM1#

main73023-12010-E0iZRE152..SOL200703-201208

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12010-B0iZRE152200703-201208

LT.GRAY,TRIM1#

main73024-12010-E0iZRE152..SOL200703-201208

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iZRE152200703-200910

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12A70-C2iZRE152200703-200910

BLACK,TRIM1#

main73210-12A70-E0iZRE152..SOL200703-200910

GREGE,TRIM4#

main73210-12C30-C1iZRE152200910-201208

BLACK/LT.GRAY,TRIM1#

main73210-12C30-E0iZRE152..6F..SOL200910-201208

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE152200703-200910

BLACK

main73219-33020iZRE152200703-200910

GRAY

main73219-33030iZRE152200703-200910

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12A50-C2iZRE152200703-200910

BLACK,TRIM1#

main73220-12A50-E0iZRE152..SOL200703-200910

GREGE,TRIM4#

main73220-12C20-C1iZRE152200910-201208

BLACK/LT.GRAY,TRIM1#

main73220-12C20-E0iZRE152..6F..SOL200910-201208

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12770-C0iZRE152..4FC;ZRE152..6F..TERRA200910-201208

BLACK,TRIM1#

main73230-12770-E0iZRE152..4FC..SOL200910-201208

GREGE,TRIM4#

main73230-12800-B0iZRE152200703-200910

DK.GRAY,TRIM1#

main73230-12800-E0iZRE152..SOL200703-200910

GREGE,TRIM4#

main73230-12B90-C0iZRE152..6F..SOL201203-201208

BLACK,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12050-B0iZRE152..TERRA200703-201208

DK.GRAY,TRIM1#,4#

sub73233-60020

main73233-12050-B0iZRE152..TERRA200703-201208

DK.GRAY,TRIM1#

sub73233-60020

main73233-12050-B0iZRE152..4FC..SOL201203-201204

BLACK,TRIM1#

sub73233-60020

main73233-12050-C0iZRE152201204-201208

BLACK,TRIM1#

sub73233-60020

main73233-12050-E0iZRE152..4FC..SOL201203-201208

GREGE,TRIM4#

sub73233-60020

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12820-B0iZRE152200703-200910

DK.GRAY,TRIM1#

main73230-12820-E0iZRE152..SOL200703-200910

GREGE,TRIM4#

main73230-12A60-C0iZRE152..4FC;ZRE152..6F..TERRA200910-201208

BLACK,TRIM1#

main73230-12A60-E0iZRE152..4FC..SOL200910-201208

GREGE,TRIM4#

main73240-12350-C0iZRE152..6F..SOL201203-201208

BLACK,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017811002

main90178-11002

9017911010

main90179-11010

9167380616

main91673-80616

16 parts on this diagram · 2 diagrams in section
