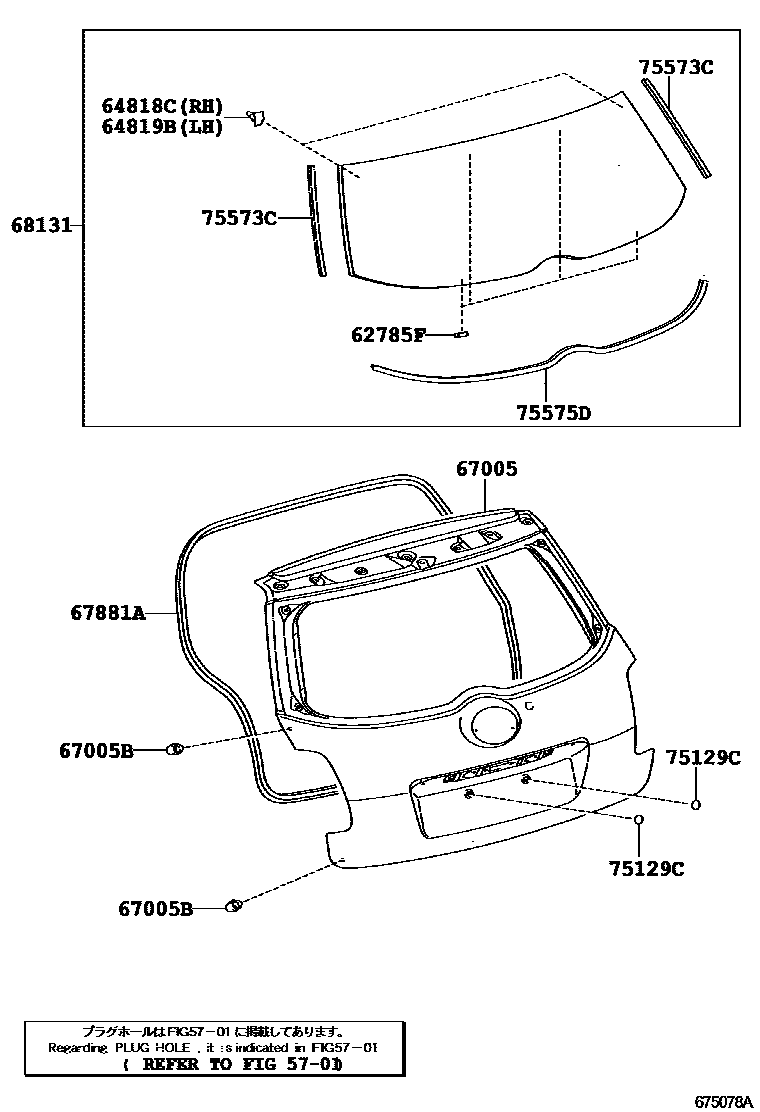

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
REAR SPOILER-WITH(LARGE TYPE)
REAR SPOILER-WITH(LARGE TYPE)
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCT,T=3.1,GREEN
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75575DMOULDING, BACK WINDOW, LOWER
11 parts on this diagram · 2 diagrams in section
