REAR DOOR LOCK & HANDLE

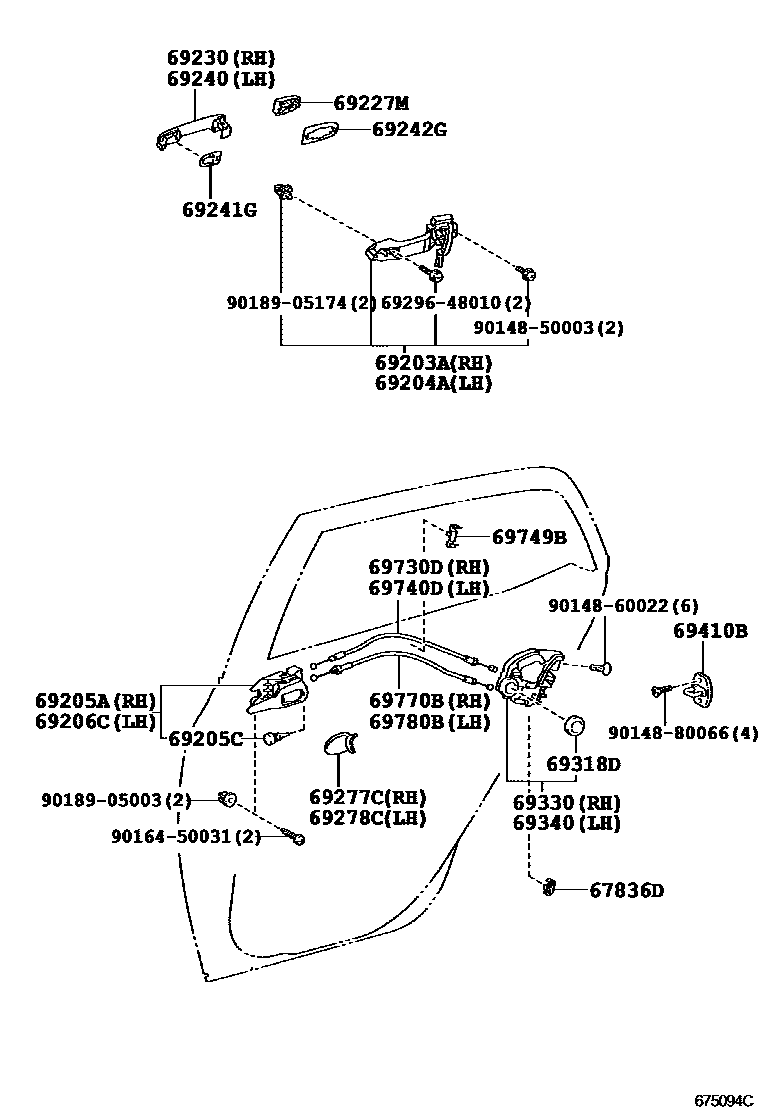

Parts diagram
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
main67836-12040×2i200703-200812
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-12110i200910
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-12110i200703-200812
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-12220-B4i200812-200910
SILVER,TRIM1#,4#
main69205-12220-B6i200910-201208
ORNAMENT SILVER,TRIM1#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04027×2i200703-200812
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-12220-B4i200703-200812
SILVER,TRIM1#,4#
main69206-12220-B6i200910-201208
ORNAMENT SILVER,TRIM1#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
main69227-42060×2i200703-200812
BLACK MATERIAL
main69227-42070-A3×2supersedes 69227-42070-A3i200703-200812
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040
sub69227-42901
main69227-42070-B3×2i200812-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0
sub69227-42901
main69227-42070-C2×2supersedes 69227-42070-C2i200703-200812
BLACK MC.,209
sub69227-42901
main69227-42070-P5×2supersedes 69227-42070-P5i200703-200812
GRAY ME.,1G3
sub69227-42901
main69227-42070-P6×2supersedes 69227-42070-P6i200910-201208
SILVER ME.,1F7
sub69227-42901
main69227-42070-R2×2supersedes 69227-42070-R2i200910-201208
LT.BLUE M.M.,8S1
sub69227-42901
main69227-42070-R7×2supersedes 69227-42070-R7i200910-201208
BLUE ME.,8T4
sub69227-42901
main69227-42070-R8×2supersedes 69227-42070-R8i200703-200812
DK.BLUE MC.,8S6
sub69227-42901
main69227-42070-V0×2i200703-200812
DK.BLUE ME.,8T8
sub69227-42901
main69227-42070-V2×2supersedes 69227-42070-V2i200910-201208
BLUE ME.,8T7
sub69227-42901
main69227-42070-X4×2supersedes 69227-42070-X4i200812-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
sub69227-42901
main69227-42070-03×2i200703-200812
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
sub69227-42901
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-12220-A0supersedes 69211-12220-A0i200703-200812
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040
sub69211-12903
sub69211-52090
main69211-12220-B2i200812-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0
sub69211-12903
sub69211-52090
main69211-12220-C2supersedes 69211-12220-C2i200812-200910
BLACK MC.,209
sub69211-12903
sub69211-52090
main69211-12220-P5supersedes 69211-12220-P5i200703-200812
GRAY ME.,1G3
sub69211-12903
sub69211-52090
main69211-12220-P6supersedes 69211-12220-P6i200910-201208
SILVER ME.,1F7
sub69211-12903
sub69211-52090
main69211-12220-R2supersedes 69211-12220-R2i200703-200812
LT.BLUE M.M.,8S1
sub69211-12903
sub69211-52090
main69211-12220-R7supersedes 69211-12220-R7i200910-201208
BLUE ME.,8T4
sub69211-12903
sub69211-52090
main69211-12220-R8supersedes 69211-12220-R8i200812-200910
DK.BLUE MC.,8S6
sub69211-12903
sub69211-52090
main69211-12220-V0i200812-200910
DK.BLUE ME.,8T8
sub69211-12903
sub69211-52090
main69211-12220-V2supersedes 69211-12220-V2i200910-201208
BLUE ME.,8T7
sub69211-12903
sub69211-52090
main69211-12220-X4supersedes 69211-12220-X4i200812-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
sub69211-12903
sub69211-52090
main69211-42010i200910-201012
NO PAINT REQ.
main69211-12220-03i200703-200812
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
sub69211-12903
sub69211-52090
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69211-12220-A0supersedes 69211-12220-A0i200910-201208
SUPER WHITE 2,040
sub69211-12903
sub69211-52090
main69211-12220-B2i200812-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0
sub69211-12903
sub69211-52090
main69211-12220-C2supersedes 69211-12220-C2i200812-200910
BLACK MC.,209
sub69211-12903
sub69211-52090
main69211-12220-P5supersedes 69211-12220-P5i200812-200910
GRAY ME.,1G3
sub69211-12903
sub69211-52090
main69211-12220-P6supersedes 69211-12220-P6i200910-201208
SILVER ME.,1F7
sub69211-12903
sub69211-52090
main69211-12220-R2supersedes 69211-12220-R2i200910-201208
LT.BLUE M.M.,8S1
sub69211-12903
sub69211-52090
main69211-12220-R7supersedes 69211-12220-R7i200910-201208
BLUE ME.,8T4
sub69211-12903
sub69211-52090
main69211-12220-R8supersedes 69211-12220-R8i200812-200910
DK.BLUE MC.,8S6
sub69211-12903
sub69211-52090
main69211-12220-V0i200812-200910
DK.BLUE ME.,8T8
sub69211-12903
sub69211-52090
main69211-12220-V2supersedes 69211-12220-V2i200910-201208
BLUE ME.,8T7
sub69211-12903
sub69211-52090
main69211-12220-X4supersedes 69211-12220-X4i200812-200910
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
sub69211-12903
sub69211-52090
main69211-42010i200910-201012
NO PAINT REQ.
main69211-12220-03i200703-200812
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
sub69211-12903
sub69211-52090
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-48020×2i200703-200812
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-42010×2i200703-200708
main69242-52020×2i200709-200812
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
main69277-12150-B0i200812-200910
DK.GRAY,TRIM1#
main69277-12150-E0i200812-200910
GREGE,TRIM4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
main69278-12150-B0i200703-200812
DK.GRAY,TRIM1#
main69278-12150-E0i200812-200910
GREGE,TRIM4#
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i200910
69330LOCK ASSY, REAR DOOR, RH
main69050-12410supersedes 69050-42021i200812-200910
main69050-42021i200910
69340LOCK ASSY, REAR DOOR, LH
main69060-12410supersedes 69060-42021i200703-200812
main69060-42021i200910
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33010×2i200910
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-12080i200703-200812
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-12080i200910
69749BCLAMP, REAR DOOR LOCK LINK
main69749-32040×2i200703-200812
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-12180i200703-200812
main69770-12190supersedes 69770-12190i200812-200910
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-12180i200703-200812
main69770-12190supersedes 69770-12190i200703-200812
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
9018905174
main90189-05174

29 parts on this diagram · 1 diagram in section
