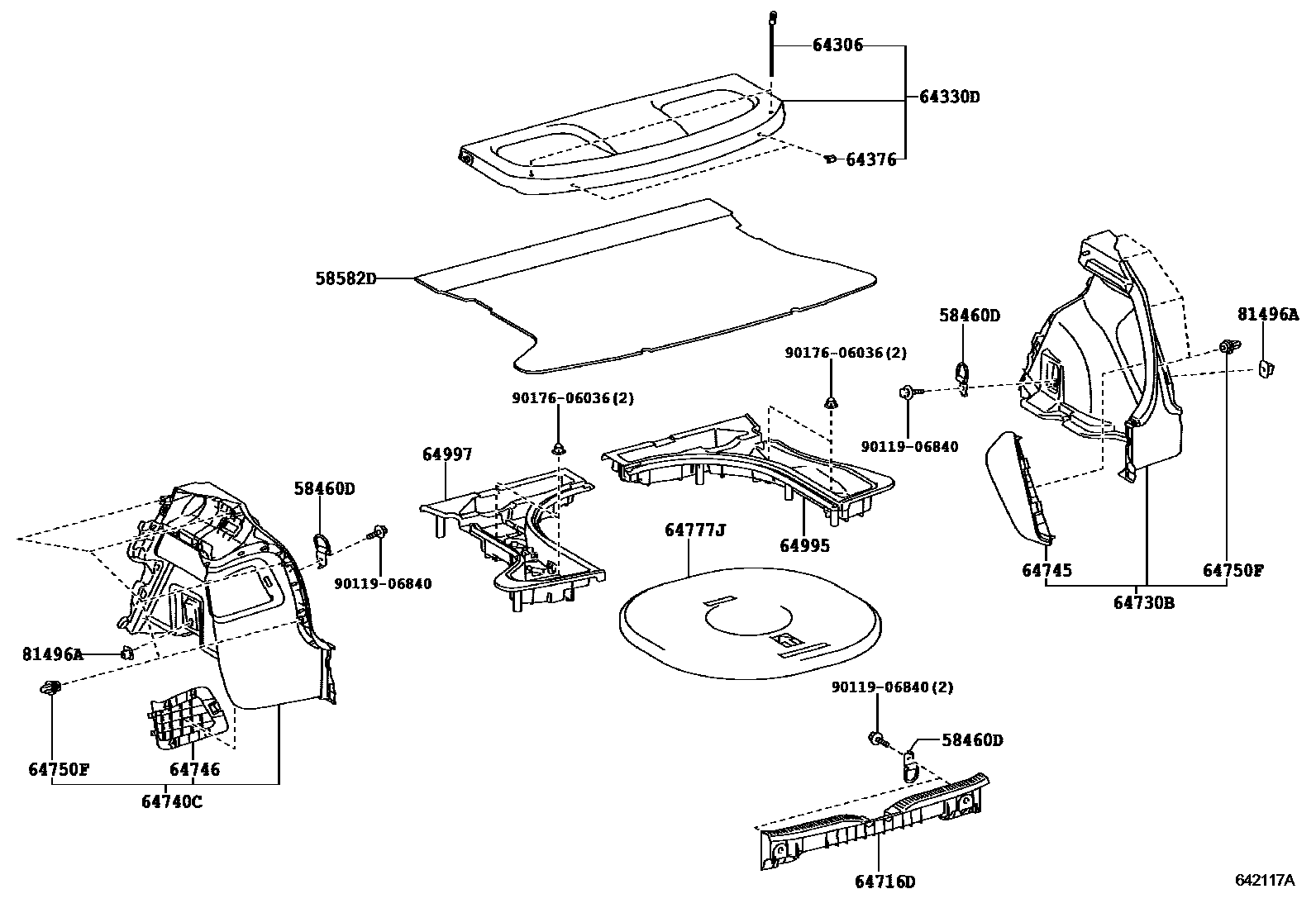

DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58582DMAT, REAR FLOOR, REAR
BLACK,TRIM1#
BLACK,TRIM1#,4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#
BLACK,TRIM1#,4#
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#
BLACK,TRIM1#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#
BLACK,TRIM1#,4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64777JCUSHION, SPARE WHEEL
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
9017606036
main90176-06036
17 parts on this diagram · 1 diagram in section
