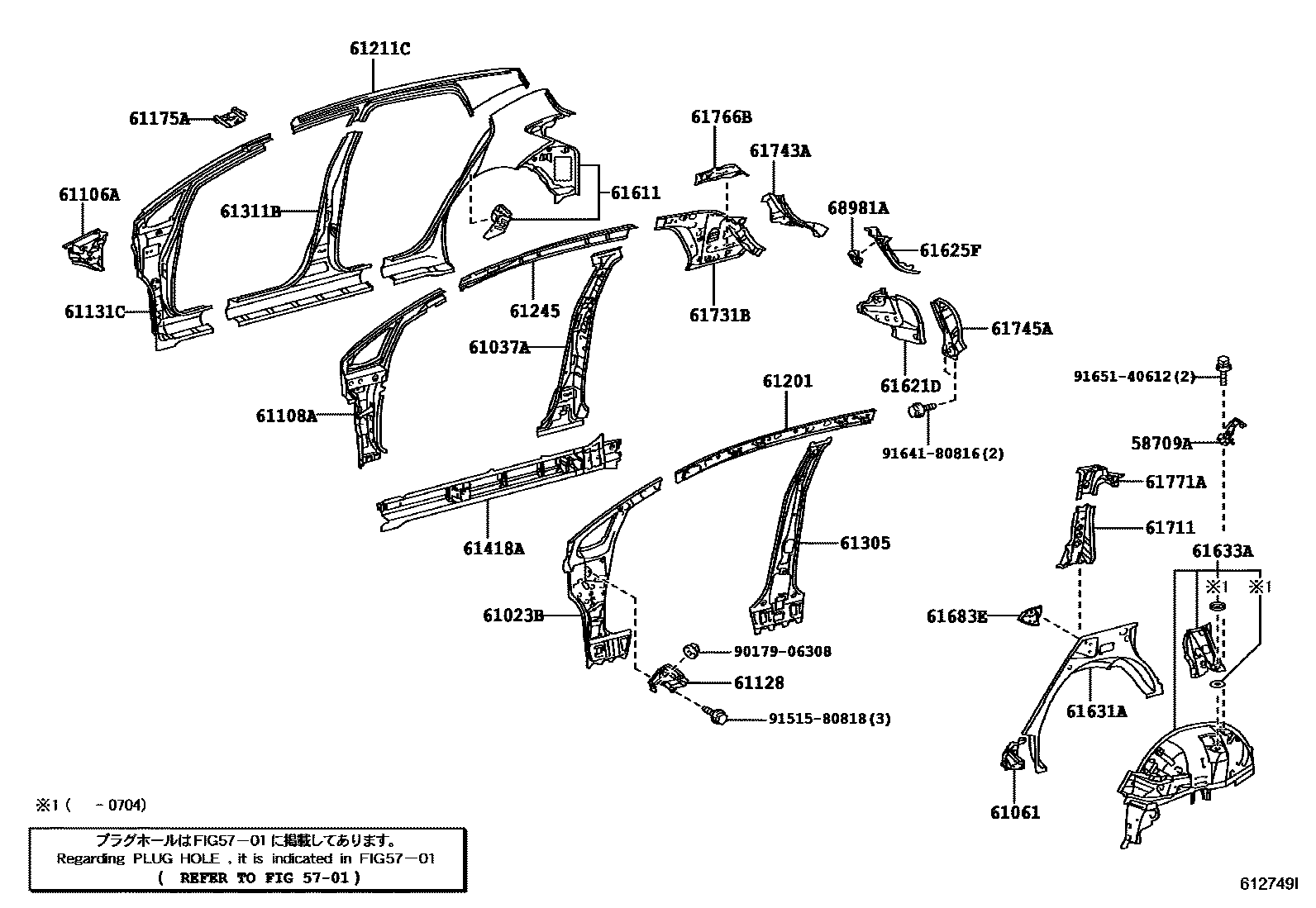

SIDE MEMBER
5701
58709ACARRIER SUB-ASSY, JACK
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
REAR SPOILER-WITH(LARGE TYPE)
SIDE MUD GUARD-WITH(BODY-COLOR)
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211CRAIL, ROOF SIDE, RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
REAR SPOILER-WITH(LARGE TYPE)
SIDE MUD GUARD-WITH(BODY-COLOR)
61611PANEL, QUARTER, RH
REAR SPOILER-WITH(LARGE TYPE)
SIDE MUD GUARD-WITH(BODY-COLOR)
61621DTROUGH, BACK DOOR OPENING, RH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61683EPLATE, QUARTER PANEL, LOWER NO.3
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61771AGUSSET, BACK WINDOW OPENING, RH
68981ARETAINER, BACK DOOR STAY, RH
9017906308
main90179-06308
9151580818
main91515-80818
9164180816
main91641-80816
9165140612
main91651-40612
33 parts on this diagram · 3 diagrams in section
