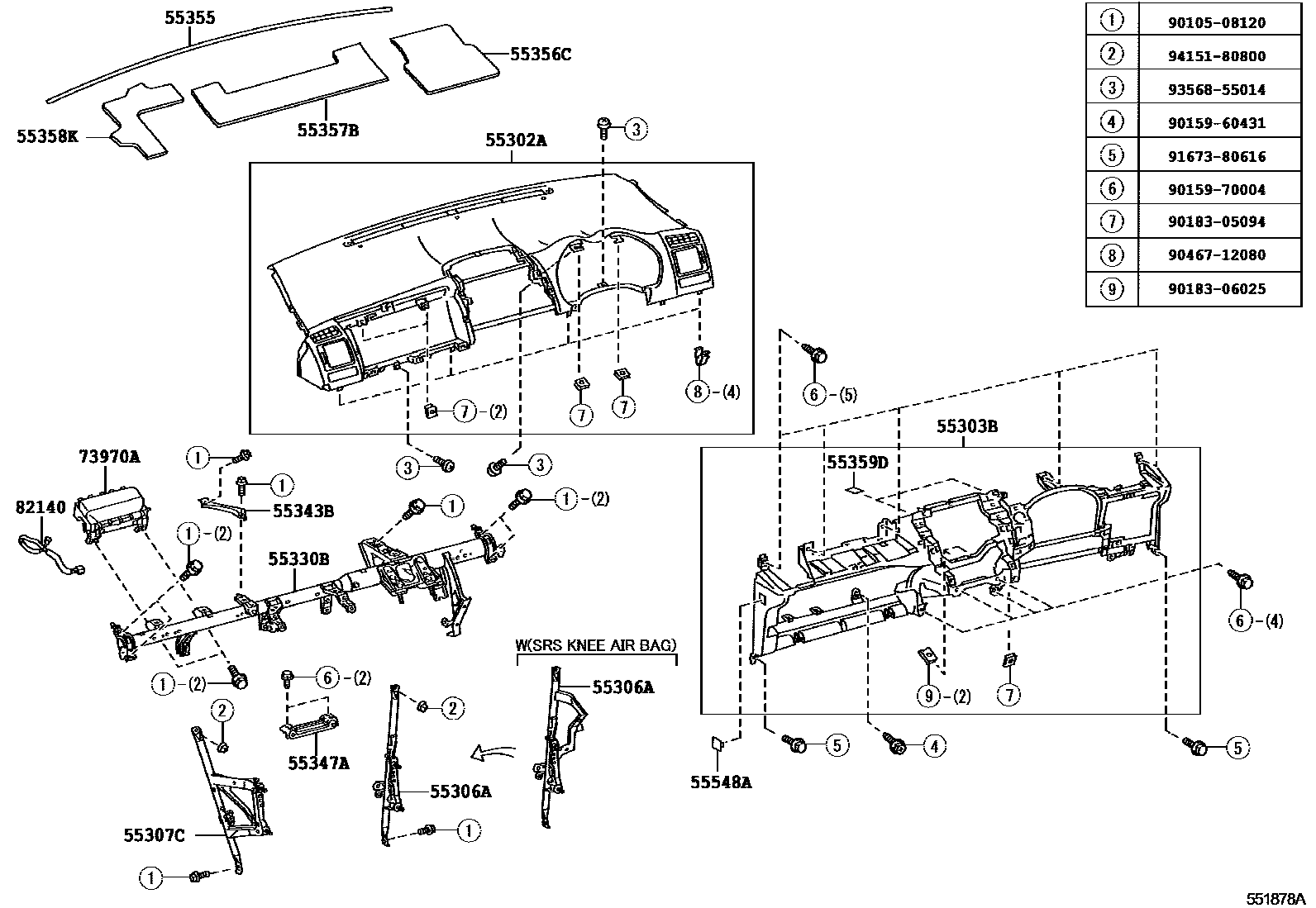

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12080-B1iZRE152200703-201208

DK.GRAY,TRIM1#

sub55302-12160¥34,200

main55302-12080-B2iZRE152..SOL201112-201208

DK.GRAY/GREGE,TRIM4#

sub55302-12160¥34,200

main55302-12080-E1iZRE152..SOL200703-200804

GREGE,TRIM4#

sub55302-12160¥34,200

main55302-12160-B1iZRE152200804-201110

DK.GRAY,TRIM1#

sub55302-12161¥34,200

sub55302-12160¥34,200

main55302-12160-B2iZRE152..SOL200910-201110

DK.GRAY/GREGE,TRIM4#

sub55302-12161¥34,200

sub55302-12160¥34,200

main55302-12160-E1iZRE152..SOL200804-200910

GREGE,TRIM4#

sub55302-12161¥34,200

sub55302-12160¥34,200

main55302-12161-B1iZRE152201111-201112

DK.GRAY,TRIM1#

sub55302-12080¥32,200

main55302-12161-B2iZRE152..SOL201111-201112

DK.GRAY/GREGE,TRIM4#

sub55302-12080¥32,200

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12330-B0iZRE152..TERRA200703-201208

DK.GRAY,TRIM1#

main55303-12330-B0iZRE152..TERRA200703-201208

DK.GRAY,TRIM1#,4#

main55303-12390-B0iZRE152..SOL200804-201110

DK.GRAY,TRIM1#,4#

sub55303-12391¥18,700

main55303-12390-B0iZRE152..TERRA200804-201110

DK.GRAY,TRIM1#

sub55303-12391¥18,700

main55303-12391-B0iZRE152..TERRA201111-201112

DK.GRAY,TRIM1#,4#

sub55303-12330¥18,700

main55303-12391-B0iZRE152..TERRA201111-201112

DK.GRAY,TRIM1#

sub55303-12330¥18,700

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12331iZRE152..SOL¥4,410201012

main55307-12310iZRE152¥3,880200703-200706

sub55307-12311¥3,880

sub55306-12341¥4,410

sub55307-12301¥3,880

sub55349-12121¥1,010

main55307-12311iZRE152..TERRA¥3,880200706-201203

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12300iZRE152¥3,880200703-200706

sub55307-12301¥3,880

sub55306-12331¥4,410

sub55307-12311¥3,880

sub55349-12121¥1,010

main55307-12301iZRE152¥3,880200706-200910

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12660iZRE152..TERRA201012-201208

main55330-12680iZRE152¥21,400200703-201203

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iZRE152¥1,090200703-200910

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55349-12120iZRE152¥1,020200703-200706

sub55349-12121¥1,010

sub55306-12331¥4,410

sub55306-12341¥4,410

sub55307-12301¥3,880

sub55307-12311¥3,880

sub55307-12381¥3,880

main55349-12121iZRE152¥1,010200706-200904

sub55349-12170¥1,020

main55349-12170iZRE152¥1,020200905-200910

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12130iZRE152¥810200703-200910

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12090iZRE152¥520200703-200910

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12080iZRE152¥670200703-200910

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12070iZRE152¥440200703-200910

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-12090iZRE152¥1,070200703-201201

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-12090-B0iZRE152..TERRA200703-201208

DK.GRAY,TRIM1#

main55548-12090-B0iZRE152..TERRA200703-201208

DK.GRAY,TRIM1#,4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-12110iZRE152¥132,000200703-200910

sub73970-12250¥132,000

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iZRE152¥870200703-200910

9010508120

main90105-08120¥90

9015960431

main90159-60431¥70

9015970004

main90159-70004¥60

9018305094

main90183-05094¥90

9018306025

main90183-06025¥100

9046712080

main90467-12080¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

24 parts on this diagram · 7 diagrams in section
