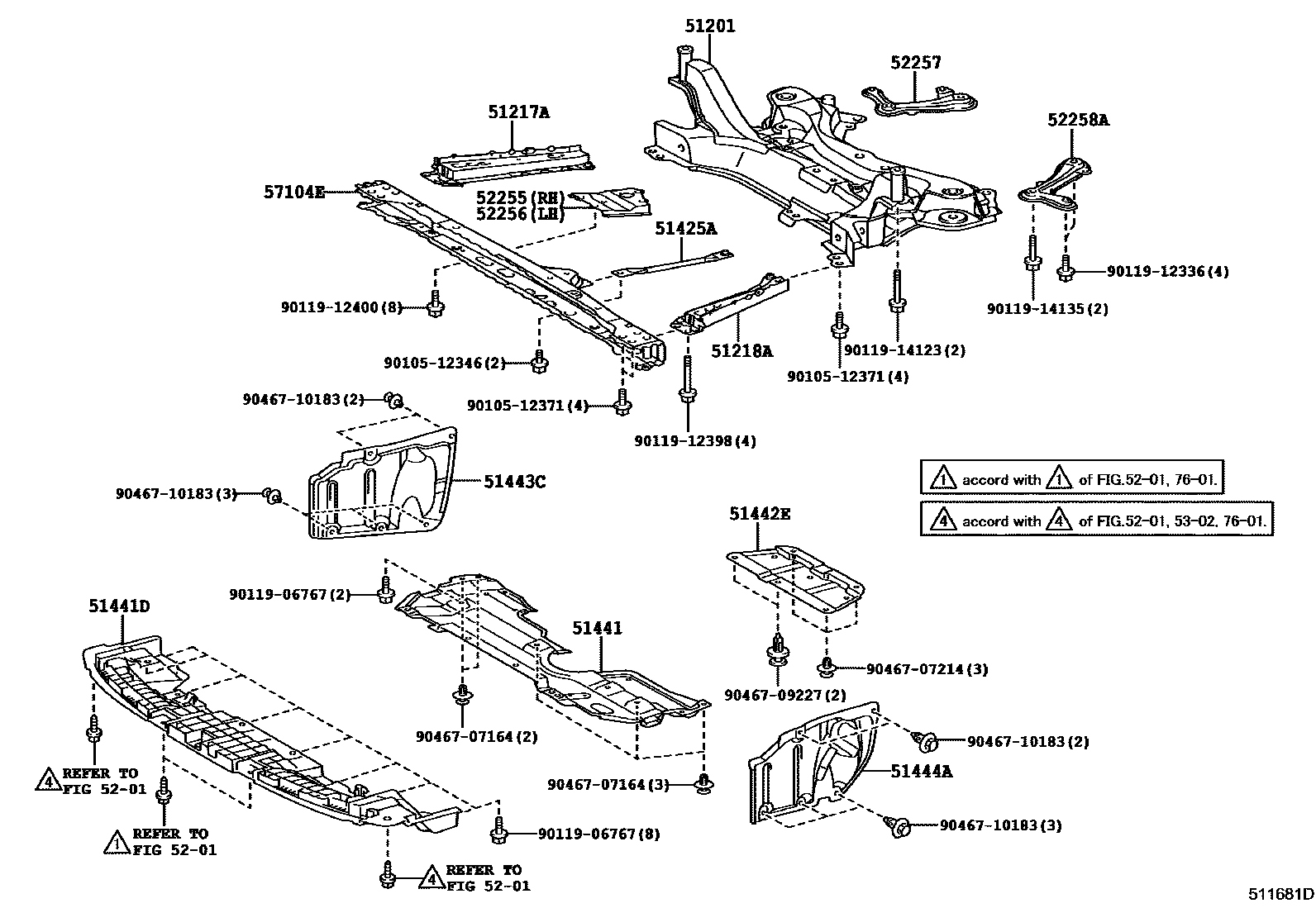

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iZRE152200703-200910

sub51201-12442

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iZRE152200703-200910

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iZRE152200703-200910

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iZRE152200703-200910

51441COVER, ENGINE UNDER, NO.1

main51441-12270iZRE152200703-200910

51441DCOVER, ENGINE UNDER

main52618-12010iZRE152200703-201208

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iZRE152200703-200910

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iZRE152200703-200910

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iZRE152200703-200910

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iZRE152200703-201208

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iZRE152200703-201208

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12010iZRE152200703-200803

sub52257-12011

main52257-12011iZRE152200804-200910

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12010iZRE152200703-200803

sub52258-12011

main52258-12011iZRE152200804-200910

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iZRE152200703-200910

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914123

main90119-14123

9011914135

main90119-14135

9046707164

main90467-07164

9046707214

main90467-07214

9046709227

main90467-09227

9046710183

main90467-10183

27 parts on this diagram · 1 diagram in section
