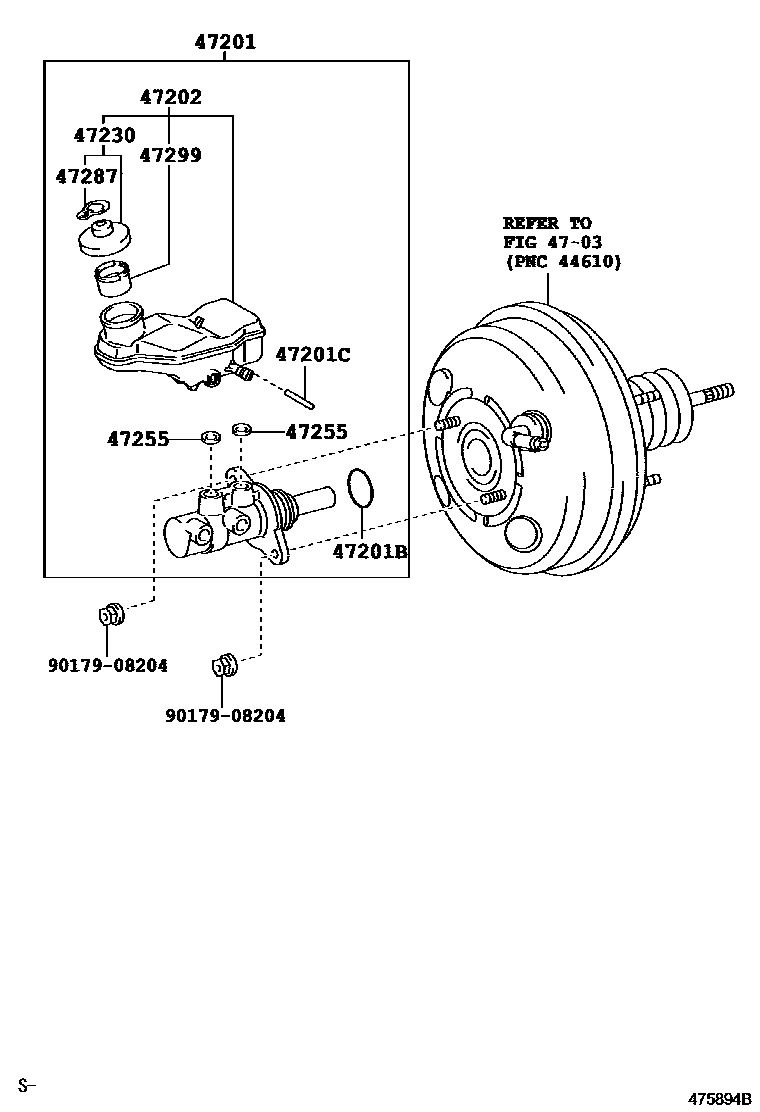

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12A00iZRE152200703-201012

main47201-12A10iZRE152200812-201012

VSC-WITH(W/CUT OFF SWITCH)

sub47201-12A11

main47201-12A10iZRE152201012-201202

sub47201-12A11

main47201-12A11iZRE152201203-201204

sub47201-12A12

main47201-12A12iZRE152201205-201208

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE152200703-201208

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZRE152200703-201208

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12190iZRE152200703-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZRE152200703-201208

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZRE152200703-201208

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iZRE152200703-201208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZRE152200703-201208

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
