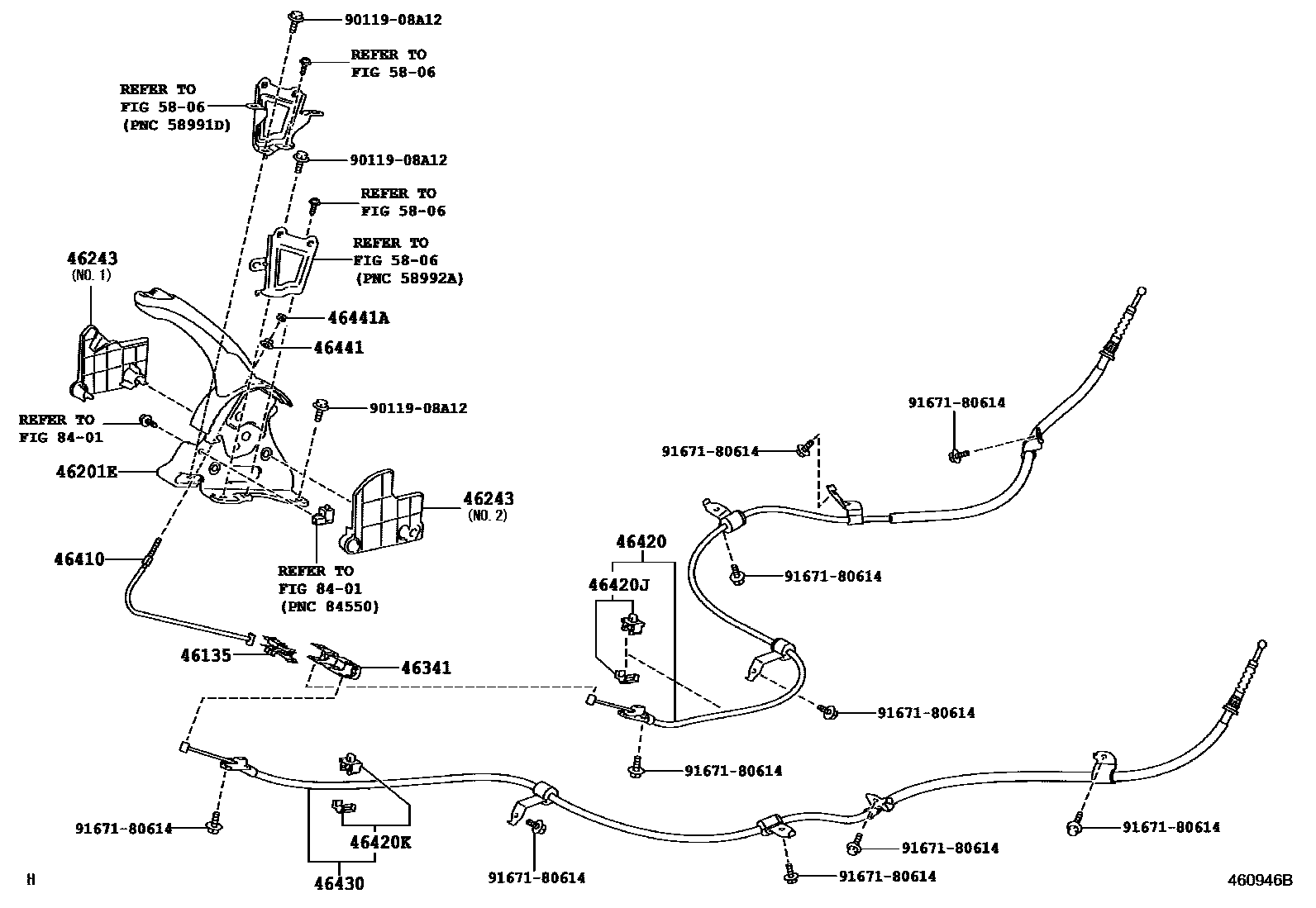

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iZRE152200703-200910

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12351-B0iZRE152..TERRA200703-200708

DK.GRAY,TRIM1#,4#

sub46201-12352

main46201-12351-B0iZRE152..SOL200703-200708

DK.GRAY,TRIM1#

sub46201-12352

main46201-12352-B0iZRE152..SOL200709-200910

DK.GRAY,TRIM1#,4#

sub46201-12353

sub90159-50360

main46201-12352-B0iZRE152..TERRA200709-200910

DK.GRAY,TRIM1#

sub46201-12353

sub90159-50360

main46201-12500-B3iZRE152..TERRA200910-201208

DK.GRAY,TRIM1#

main46201-12500-B3iZRE152..TERRA200910-201208

DK.GRAY,TRIM1#,4#

46243COVER, PARKING BRAKE LEVER

main46243-12041iZRE152200703-200910

NO.1

main46243-12051iZRE152200703-200910

NO.2

46341EQUALIZER, PARKING BRAKE

main46341-12040iZRE152200703-200910

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12280iZRE152200703-200910

main46410-12350iZRE152200910

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12700iZRE152200703-200711

sub46420-12720

main46420-12720iZRE152200712-201207

sub46420-12810

main46420-12721iZRE152201207-201208

sub46420-12720

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12010iZRE152200703-200711

sub46402-12030

main46402-12030iZRE152200712-200910

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12010iZRE152200703-200711

sub46402-12030

main46402-12030iZRE152200712-200910

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12580iZRE152200703-200711

sub46430-12610

main46430-12610iZRE152200712-201207

sub46430-12700

main46430-12611iZRE152201207-201208

sub46430-12610

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZRE152200703-200910

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iZRE152200703-201104

5806

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

15 parts on this diagram · 2 diagrams in section
