EPC Data

FRONT AXLE HOUSING & DIFFERENTIAL

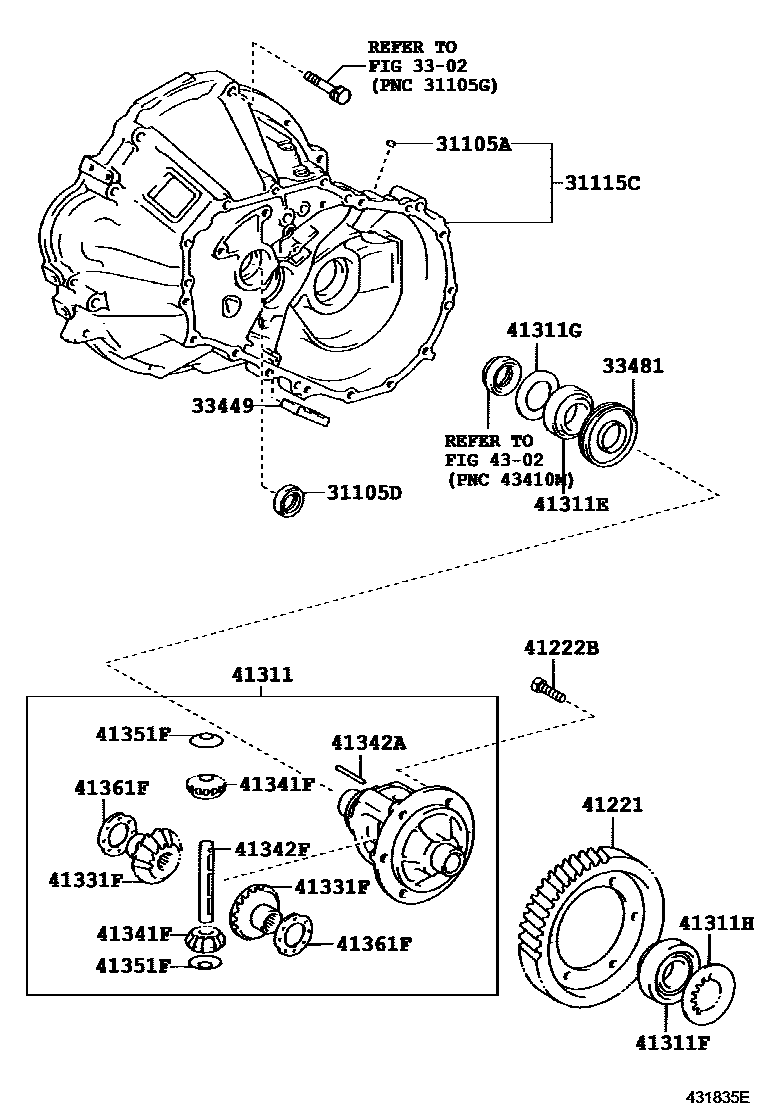

Parts diagram
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
main90331-08002i200703-200812
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
main90311-25028i200703-200812
main90311-25030i200812-200910
*201,*206
31115CCASE, FRONT TRANSAXLE(MTM)
main31105-12220i200703-200812
main31115-12180i200812-201003
*206
main31115-12200i201003-201208
*206
sub31115-12201
main31115-20110i200812-201208
*201
sub31115-20111
3302
33449MAGNET, TRANSMISSION
main33449-12020i200703-200812
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-20160i200703-200812
N=35
41221GEAR, FRONT DIFFERENTIAL RING
main41221-12490i200706-200812
main41221-20380i200703-200706
sub41221-12490
main41221-52090i200703-201012
sub41221-52091
main41221-52091i201012-201208
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90101-11003i200703-201208
main90105-11040i200703-200812
41311CASE, FRONT DIFFERENTIAL
main41301-12210i200703-201208
main41301-32061i200703-200812
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90366-40016i200703-201208
main90366-40097i200703-200812
sub90366-40129
main90366-40129i200812-201208
*201,*206
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-40094i200703-200812
main90366-42009i200812-201208
*201,*206
main90366-44001i200703-201208
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
main90560-41003i200812-201208
T=2.1,*201,*206
main90560-41003i200703-200812
T=2.1
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
main90564-41014i200703-200812
T=2.10,MARK AA
main90564-41015i200703-200812
T=2.15,MARK BB
main90564-41016i200703-200812
T=2.20,MARK CC
main90564-41017i200703-200812
T=2.25,MARK DD
main90564-41018i200703-200812
T=2.30,MARK EE
main90564-41019i200703-200812
T=2.35,MARK FF
main90564-41020i200703-200812
T=2.40,MARK GG
main90564-41021i200703-200812
T=2.45,MARK HH
main90564-41022i200703-200812
T=2.50,MARK JJ
main90564-41023i200703-200812
T=2.55,MARK KK
main90564-41024i200703-200812
T=2.60,MARK LL
main90564-41025i200703-200812
T=2.65,MARK MM
main90564-41026i200703-200812
T=2.70,MARK NN
main90564-41027i200703-200812
T=2.75,MARK PP
main90564-41028i200703-200812
T=2.80,MARK QQ
main90564-41029i200703-200812
T=2.85,MARK RR
main90564-41030i200703-200812
T=2.90,MARK SS
main90564-41031i200703-200812
T=2.95,MARK TT
main90564-41032i200703-200812
T=3.00,MARK UU
main90564-44008i200812-200910
T=2.100, MARK 0,*201,*206
main90564-44008i200910-201003
T=2.100, MARK 0,*201
main90564-44008i200910-201004
T=2.100, MARK 0,*206
main90564-44009i200910-201003
T=2.125, MARK 1,*201
main90564-44009i200812-200910
T=2.125, MARK 1,*201,*206
main90564-44009i200910-201004
T=2.125, MARK 1,*206
main90564-44010i200910-201004
T=2.150, MARK 2,*206
main90564-44010i200910-201003
T=2.150, MARK 2,*201
main90564-44010i200812-200910
T=2.150, MARK 2,*201,*206
main90564-44011i200910-201004
T=2.175, MARK 3,*206
main90564-44011i200812-200910
T=2.175, MARK 3,*201,*206
main90564-44011i200910-201003
T=2.175, MARK 3,*201
main90564-44012i200910-201003
T=2.200, MARK 4,*201
main90564-44012i200910-201004
T=2.200, MARK 4,*206
main90564-44012i200812-200910
T=2.200, MARK 4,*201,*206
main90564-44013i200812-200910
T=2.225, MARK 5,*201,*206
main90564-44013i200910-201004
T=2.225, MARK 5,*206
main90564-44013i200910-201003
T=2.225, MARK 5,*201
main90564-44014i200910-201003
T=2.250, MARK 6,*201
main90564-44014i200910-201004
T=2.250, MARK 6,*206
main90564-44014i200812-200910
T=2.250, MARK 6,*201,*206
main90564-44015i200910-201003
T=2.275, MARK 7,*201
main90564-44015i200910-201004
T=2.275, MARK 7,*206
main90564-44015i200812-200910
T=2.275, MARK 7,*201,*206
main90564-44016i200910-201004
T=2.300, MARK 8,*206
main90564-44016i200812-200910
T=2.300, MARK 8,*201,*206
main90564-44016i200910-201003
T=2.300, MARK 8,*201
main90564-44017i200812-200910
T=2.325, MARK 9,*201,*206
main90564-44017i200910-201004
T=2.325, MARK 9,*206
main90564-44017i200910-201003
T=2.325, MARK 9,*201
main90564-44018i200910-201003
T=2.350, MARK A,*201
main90564-44018i200812-200910
T=2.350, MARK A,*201,*206
main90564-44018i200910-201004
T=2.350, MARK A,*206
main90564-44019i200910-201003
T=2.375, MARK B,*201
main90564-44019i200910-201004
T=2.375, MARK B,*206
main90564-44019i200812-200910
T=2.375, MARK B,*201,*206
main90564-44020i200910-201004
T=2.400, MARK C,*206
main90564-44020i200910-201003
T=2.400, MARK C,*201
main90564-44020i200812-200910
T=2.400, MARK C,*201,*206
main90564-44021i200910-201003
T=2.425, MARK D,*201
main90564-44021i200812-200910
T=2.425, MARK D,*201,*206
main90564-44021i200910-201004
T=2.425, MARK D,*206
main90564-44022i200812-200910
T=2.450, MARK E,*201,*206
main90564-44022i200910-201003
T=2.450, MARK E,*201
main90564-44022i200910-201004
T=2.450, MARK E,*206
main90564-44023i200812-200910
T=2.475, MARK F,*201,*206
main90564-44023i200910-201003
T=2.475, MARK F,*201
main90564-44023i200910-201004
T=2.475, MARK F,*206
main90564-44024i200910-201004
T=2.500, MARK G,*206
main90564-44024i200910-201003
T=2.500, MARK G,*201
main90564-44024i200812-200910
T=2.500, MARK G,*201,*206
main90564-44025i200910-201004
T=2.525, MARK H,*206
main90564-44025i200910-201003
T=2.525, MARK H,*201
main90564-44025i200812-200910
T=2.525, MARK H,*201,*206
main90564-44026i200910-201003
T=2.550, MARK J,*201
main90564-44026i200910-201004
T=2.550, MARK J,*206
main90564-44026i200812-200910
T=2.550, MARK J,*201,*206
main90564-44027i200812-200910
T=2.575, MARK K,*201,*206
main90564-44027i200910-201004
T=2.575, MARK K,*206
main90564-44027i200910-201003
T=2.575, MARK K,*201
main90564-44028i200910-201004
T=2.600, MARK L,*206
main90564-44028i200910-201003
T=2.600, MARK L,*201
main90564-44028i200812-200910
T=2.600, MARK L,*201,*206
main90564-44029i200812-200910
T=2.625, MARK M,*201,*206
main90564-44029i200910-201003
T=2.625, MARK M,*201
main90564-44029i200910-201004
T=2.625, MARK M,*206
main90564-44030i200910-201003
T=2.650, MARK N,*201
main90564-44030i200910-201004
T=2.650, MARK N,*206
main90564-44030i200812-200910
T=2.650, MARK N,*201,*206
main90564-44031i200910-201004
T=2.675, MARK P,*206
main90564-44031i200910-201003
T=2.675, MARK P,*201
main90564-44031i200812-200910
T=2.675, MARK P,*201,*206
main90564-44032i200910-201003
T=2.700, MARK Q,*201
main90564-44032i200812-200910
T=2.700, MARK Q,*201,*206
main90564-44032i200910-201004
T=2.700, MARK Q,*206
main90564-44033i200812-200910
T=2.725, MARK R,*201,*206
main90564-44033i200910-201004
T=2.725, MARK R,*206
main90564-44033i200910-201003
T=2.725, MARK R,*201
main90564-44034i200812-200910
T=2.750, MARK S,*201,*206
main90564-44034i200910-201004
T=2.750, MARK S,*206
main90564-44034i200910-201003
T=2.750, MARK S,*201
main90564-44035i200910-201004
T=2.775, MARK T,*206
main90564-44035i200910-201003
T=2.775, MARK T,*201
main90564-44035i200812-200910
T=2.775, MARK T,*201,*206
main90564-44036i200910-201003
T=2.800, MARK U,*201
main90564-44036i200812-200910
T=2.800, MARK U,*201,*206
main90564-44036i200910-201004
T=2.800, MARK U,*206
main90564-44037i200812-200910
T=2.825, MARK V,*201,*206
main90564-44037i200910-201003
T=2.825, MARK V,*201
main90564-44037i200910-201004
T=2.825, MARK V,*206
main90564-44038i200812-200910
T=2.850, MARK W,*201,*206
main90564-44038i200910-201003
T=2.850, MARK W,*201
main90564-44038i200910-201004
T=2.850, MARK W,*206
main90564-44039i201003
T=2.100, MARK 10,*201
main90564-44039i201004
T=2.100, MARK 10,*206
main90564-44040i201004
T=2.125, MARK 11,*206
main90564-44040i201003
T=2.125, MARK 11,*201
main90564-44041i201004
T=2.150, MARK 12,*206
main90564-44041i201003
T=2.150, MARK 12,*201
main90564-44042i201004
T=2.175, MARK 13,*206
main90564-44042i201003
T=2.175, MARK 13,*201
main90564-44043i201003
T=2.200, MARK 14,*201
main90564-44043i201004
T=2.200, MARK 14,*206
main90564-44044i201004
T=2.225, MARK 15,*206
main90564-44044i201003
T=2.225, MARK 15,*201
main90564-44045i201003
T=2.250, MARK 16,*201
main90564-44045i201004
T=2.250, MARK 16,*206
main90564-44046i201003
T=2.275, MARK 17,*201
main90564-44046i201004
T=2.275, MARK 17,*206
main90564-44047i201003
T=2.300, MARK 18,*201
main90564-44047i201004
T=2.300, MARK 18,*206
main90564-44048i201003
T=2.325, MARK 19,*201
main90564-44048i201004
T=2.325, MARK 19,*206
main90564-44049i201003
T=2.350, MARK 20,*201
main90564-44049i201004
T=2.350, MARK 20,*206
main90564-44050i201004
T=2.375, MARK 21,*206
main90564-44050i201003
T=2.375, MARK 21,*201
main90564-44051i201004
T=2.400, MARK 22,*206
main90564-44051i201003
T=2.400, MARK 22,*201
main90564-44052i201003
T=2.425, MARK 23,*201
main90564-44052i201004
T=2.425, MARK 23,*206
main90564-44053i201004
T=2.450, MARK 24,*206
main90564-44053i201003
T=2.450, MARK 24,*201
main90564-44054i201003
T=2.475, MARK 25,*201
main90564-44054i201004
T=2.475, MARK 25,*206
main90564-44055i201003
T=2.500, MARK 26,*201
main90564-44055i201004
T=2.500, MARK 26,*206
main90564-44056i201004
T=2.525, MARK 27,*206
main90564-44056i201003
T=2.525, MARK 27,*201
main90564-44057i201003
T=2.550, MARK 28,*201
main90564-44057i201004
T=2.550, MARK 28,*206
main90564-44058i201003
T=2.575, MARK 29,*201
main90564-44058i201004
T=2.575, MARK 29,*206
main90564-44059i201004
T=2.600, MARK 30,*206
main90564-44059i201003
T=2.600, MARK 30,*201
main90564-44060i201004
T=2.625, MARK 31,*206
main90564-44060i201003
T=2.625, MARK 31,*201
main90564-44061i201003
T=2.650, MARK 32,*201
main90564-44061i201004
T=2.650, MARK 32,*206
main90564-44062i201003
T=2.675, MARK 33,*201
main90564-44062i201004
T=2.675, MARK 33,*206
main90564-44063i201004
T=2.700, MARK 34,*206
main90564-44063i201003
T=2.700, MARK 34,*201
main90564-44064i201003
T=2.725, MARK 35,*201
main90564-44064i201004
T=2.725, MARK 35,*206
main90564-44065i201004
T=2.750, MARK 36,*206
main90564-44065i201003
T=2.750, MARK 36,*201
main90564-44066i201004
T=2.775, MARK 37,*206
main90564-44066i201003
T=2.775, MARK 37,*201
main90564-44067i201003
T=2.800, MARK 38,*201
main90564-44067i201004
T=2.800, MARK 38,*206
main90564-44068i201003
T=2.825, MARK 39,*201
main90564-44068i201004
T=2.825, MARK 39,*206
main90564-44069i201003
T=2.850, MARK 40,*201
main90564-44069i201004
T=2.850, MARK 40,*206
41331FGEAR, FRONT DIFFERENTIAL SIDE
main41331-12150i200812-201208
*206
sub41039-12050
sub90208-35001
main41331-20130i200812-201208
*201
sub41039-52050
sub90208-35001
main41331-32010i200703-200812
41341FPINION, FRONT DIFFERENTIAL
main41341-12100i200812-201208
*206
sub41039-12050
sub90208-35001
main41341-20050i200812-201208
*201
sub41039-52050
sub90208-35001
main41341-30011i200703-200812
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i200812-201208
*201,*206
main90250-06058i200703-200812
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-20080i201008-201208
main41342-32020i200703-201008
sub41342-52060
main41342-32020i200812-201208
*201,*206
sub41342-52060
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-32010i200703-200812
main41351-32010i200812-201208
*201,*206
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-17010i200703-201208
T=0.95
main41361-17020i200703-201208
T=1.00
main41361-17030i200703-201208
T=1.05
main41361-17040i200703-201208
T=1.10
main41361-17050i200703-201208
T=1.15
main41361-17060i200703-201208
T=1.20
main41361-22020i200812-201208
T=1.00,MARK 02,*201,*206
main41361-22020i200703-200812
T=1.00,MARK 02
main41361-22030i200703-200812
T=1.10,MARK 03
main41361-22030i200812-201208
T=1.10,MARK 03,*201,*206
main41361-22040i200703-200812
T=1.20,MARK 04
main41361-22040i200812-201208
T=1.20,MARK 04,*201,*206
main41361-22140i200812-201208
T=0.95,MARK 14,*201,*206
main41361-22140i200703-200812
T=0.95,MARK 14
main41361-22150i200703-200812
T=1.05,MARK 15
main41361-22150i200812-201208
T=1.05,MARK 15,*201,*206
main41361-22160i200703-200812
T=1.15,MARK 16
main41361-22160i200812-201208
T=1.15,MARK 16,*201,*206
4302

20 parts on this diagram · 3 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
