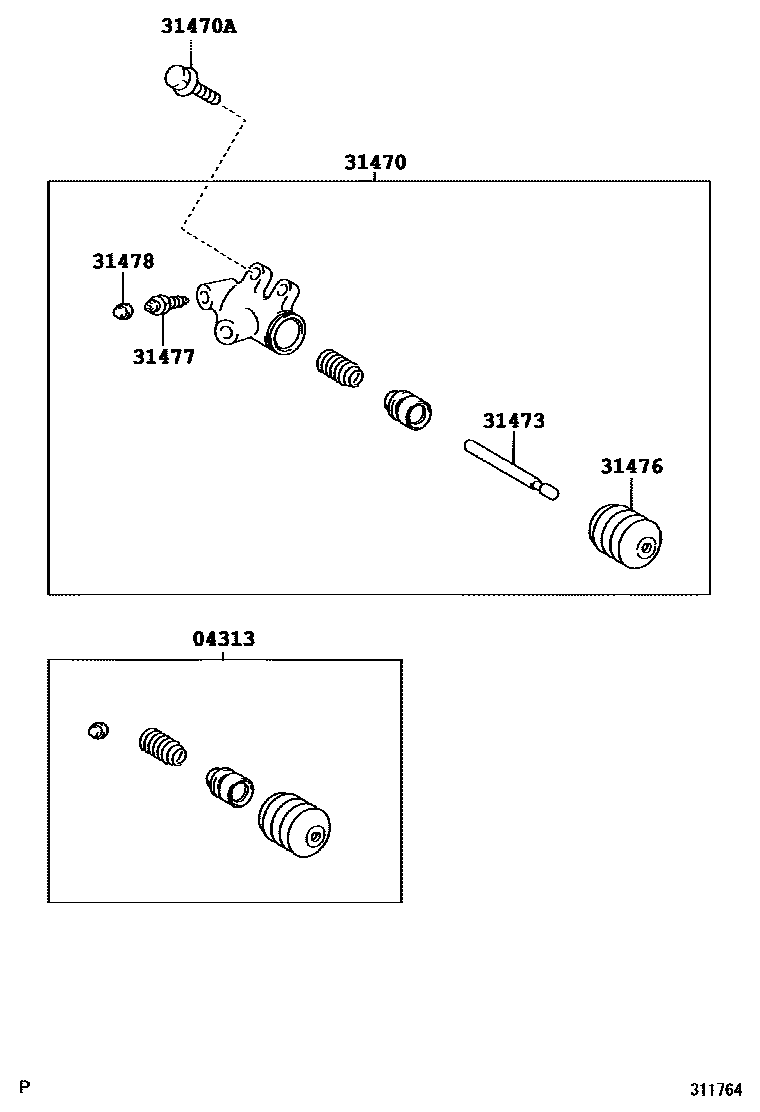

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iZRE152..6F¥780200703-200812

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12160iZRE152..6F200703-200812

sub31470-12161

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZRE152..6F¥170200703-200812

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iZRE152..6F¥520200703-200812

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZRE152..6F¥230200703-200812

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZRE152..6F¥200200703-200812

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZRE152..6F¥160200812-200910

*201,*206

main31478-30010iZRE152..6F¥160200703-200812

7 parts on this diagram · 2 diagrams in section
