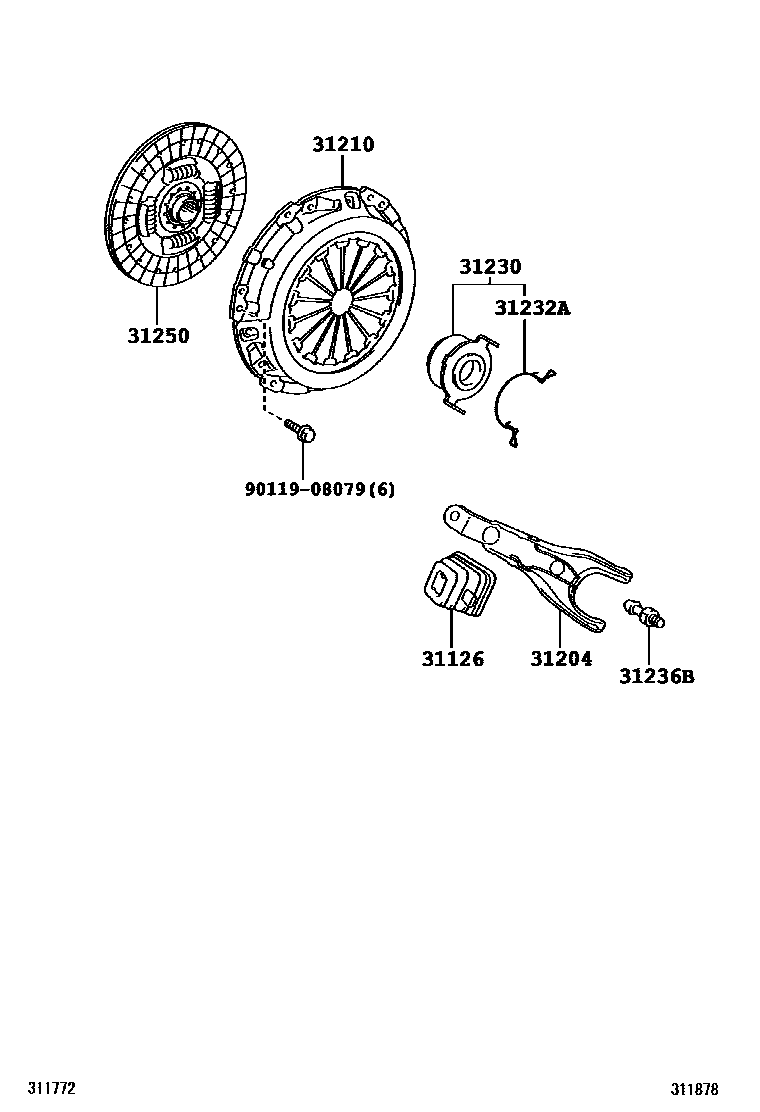

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZRE152..6F200703-200812

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iZRE152..6F200703-200812

31210COVER ASSY, CLUTCH

main31210-12291iZRE152..6F200703-200812

main31210-12340iZRE152..6F200812-201208

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iZRE152..6F200703-200812

sub31230-12181

31232ACLIP, RELEASE BEARING HUB

main31232-12080iZRE152..6F200703-200812

31236BSUPPORT, RELEASE FORK

main31236-12020iZRE152..6F200703-200812

31250DISC ASSY, CLUTCH

main31250-12510iZRE152..6F200703-200812

main31250-12600iZRE152..6F200812-200910

sub31250-12601

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
