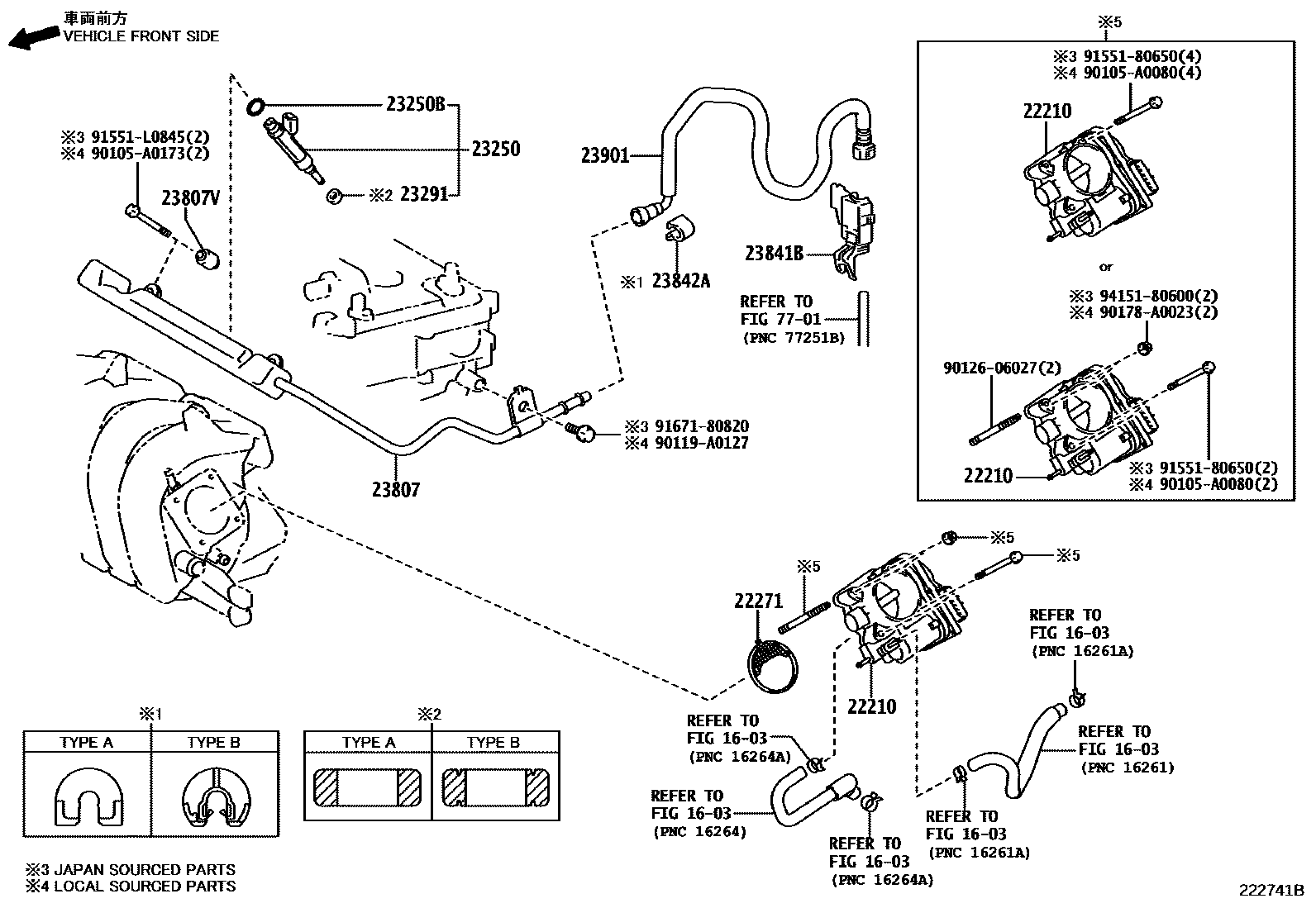

FUEL INJECTION SYSTEM

1603

22210BODY ASSY, THROTTLE

main22030-0T080i2ZRFE..ZRE152201110

(L)

main22030-37010i2ZRFE..ZRE152200703-200812

main22030-37050i2ZRFE..ZRE152200812-200910

22271GASKET, THROTTLE BODY

main22271-0D051i2ZRFE..ZRE152201110

(L)

main22271-75031i2ZRFE..ZRE152200703-200812

23250INJECTOR ASSY, FUEL

main23209-09140×4i2ZRFE..ZRE152201110-201208

(L),*251

main23209-39145×4i2ZRFE..ZRE152200812-200902

main23209-39146×4i2ZRFE..ZRE152200902-200910

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFE..ZRE152200703-200812

main90301-A0036×4i2ZRFE..ZRE152201204-201208

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFE..ZRE152200805-200812

TYPE A:REFER ILLUST.

main23291-28020×4i2ZRFE..ZRE152200902-200910

TYPE B:REFER ILLUST.

main23291-41010×4i2ZRFE..ZRE152200703-200805

TYPE A:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37050i2ZRFE..ZRE152200703-200812

main23814-37051i2ZRFE..ZRE152201108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZRFE..ZRE152200703-200812

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2ZRFE..ZRE152200703-200812

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2ZRFE..ZRE152200703-200812

TYPE A:REFER ILLUST.

main23842-28010i2ZRFE..ZRE152200703-200812

TYPE B:REFER ILLUST.

23901TUBE SUB-ASSY, FUEL

main23901-22180i2ZRFE..ZRE152200703-200812

7701

90105A0080

main90105-A0080

90105A0173

main90105-A0173

90119A0127

main90119-A0127

9012606027

main90126-06027

90178A0023

main90178-A0023

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
