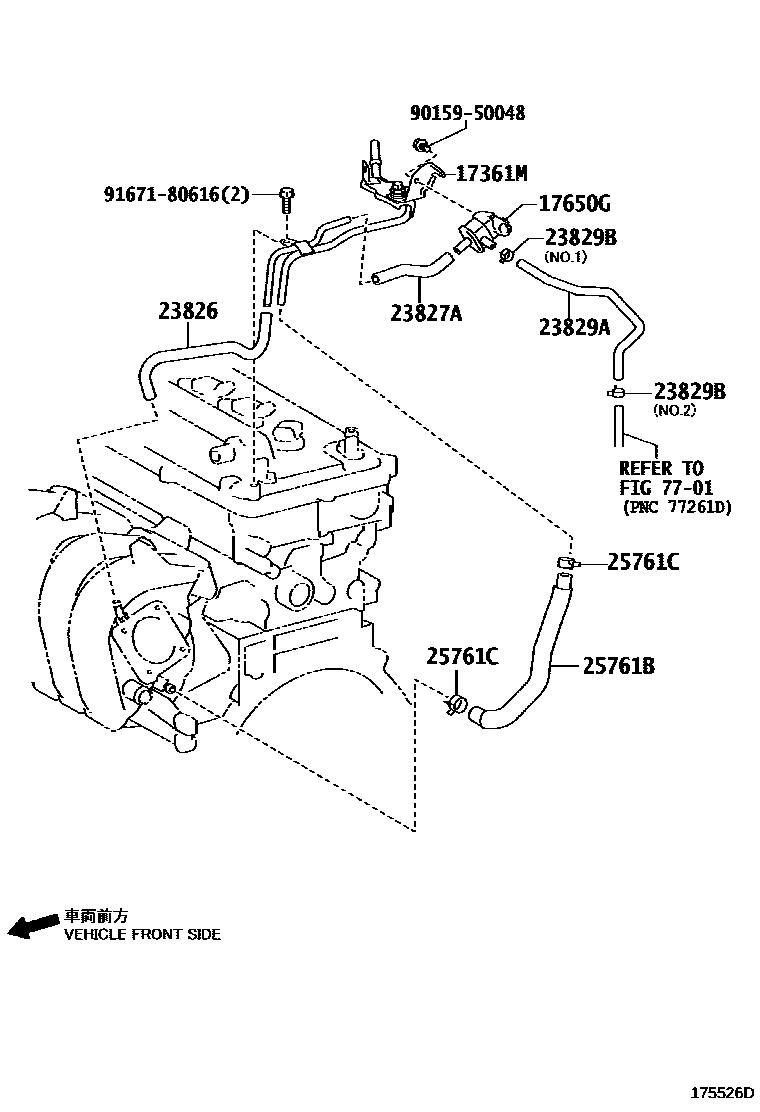

VACUUM PIPING

0001 1 0002 1

17361MTUBE, AIR

main17361-37010i2ZRFE..ZRE152200703-200909

main17361-37011i2ZRFE..ZRE152200909-201208

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i2ZRFE..ZRE152200703-200910

main90910-12276i2ZRFE..ZRE152200910

MARK 90910-12276

main90910-TC001i2ZRFE..ZRE152201110

MARK 90910-TC001

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37020i2ZRFE..ZRE152200703-200909

main23826-37021i2ZRFE..ZRE152200910-201208

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i2ZRFE..ZRE152200703-200910

23829AHOSE, FUEL VAPOR FEED

main23826-22160i2ZRFE..ZRE152200703-200812

main23826-37111i2ZRFE..ZRE152200812-201208

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i2ZRFE..ZRE152200703-201208

NO.1

main96136-41501i2ZRFE..ZRE152200703-201208

NO.2

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-37010i2ZRFE..ZRE152200703-200909

main25761-37011i2ZRFE..ZRE152200910

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500i2ZRFE..ZRE152200910

main96136-41801i2ZRFE..ZRE152200703-200909

7701

9015950048

main90159-50048

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section
