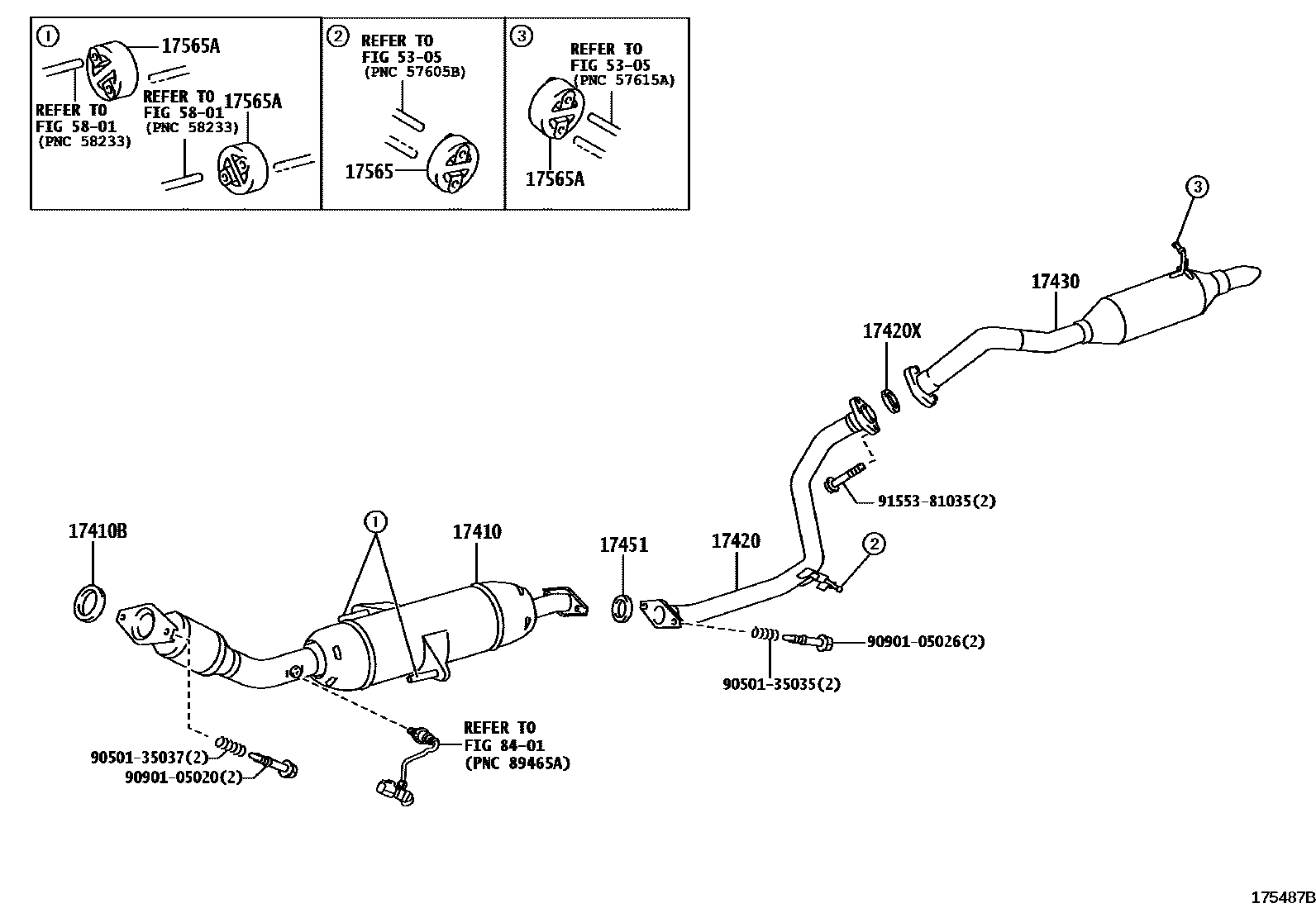

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-22600i2ZRFE..ZRE152¥182,000200703-201208

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFE..ZRE152¥1,510200703-200910

sub17451-28041¥1,510

17420PIPE ASSY, EXHAUST, CENTER

main17420-22110i2ZRFE..ZRE152¥12,400200703-200910

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i2ZRFE..ZRE152¥500200703-200910

17430PIPE ASSY, EXHAUST, TAIL

main17430-22500i2ZRFE..ZRE152¥25,200200703-201105

sub17430-22501¥25,200

main17430-22501i2ZRFE..ZRE152¥25,200201106-201208

17451GASKET, EXHAUST PIPE

main17451-28030i2ZRFE..ZRE152¥2,170200703-200712

sub17451-28031¥2,170

main17451-28031i2ZRFE..ZRE152¥2,170200801-201102

sub17451-28032¥1,360

main17451-28032i2ZRFE..ZRE152¥1,360201103

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i2ZRFE..ZRE152¥570200703-200910

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ZRFE..ZRE152¥670200703-200910

5305

5801

8401

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

9155381035

main91553-81035¥120

16 parts on this diagram · 1 diagram in section
