HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

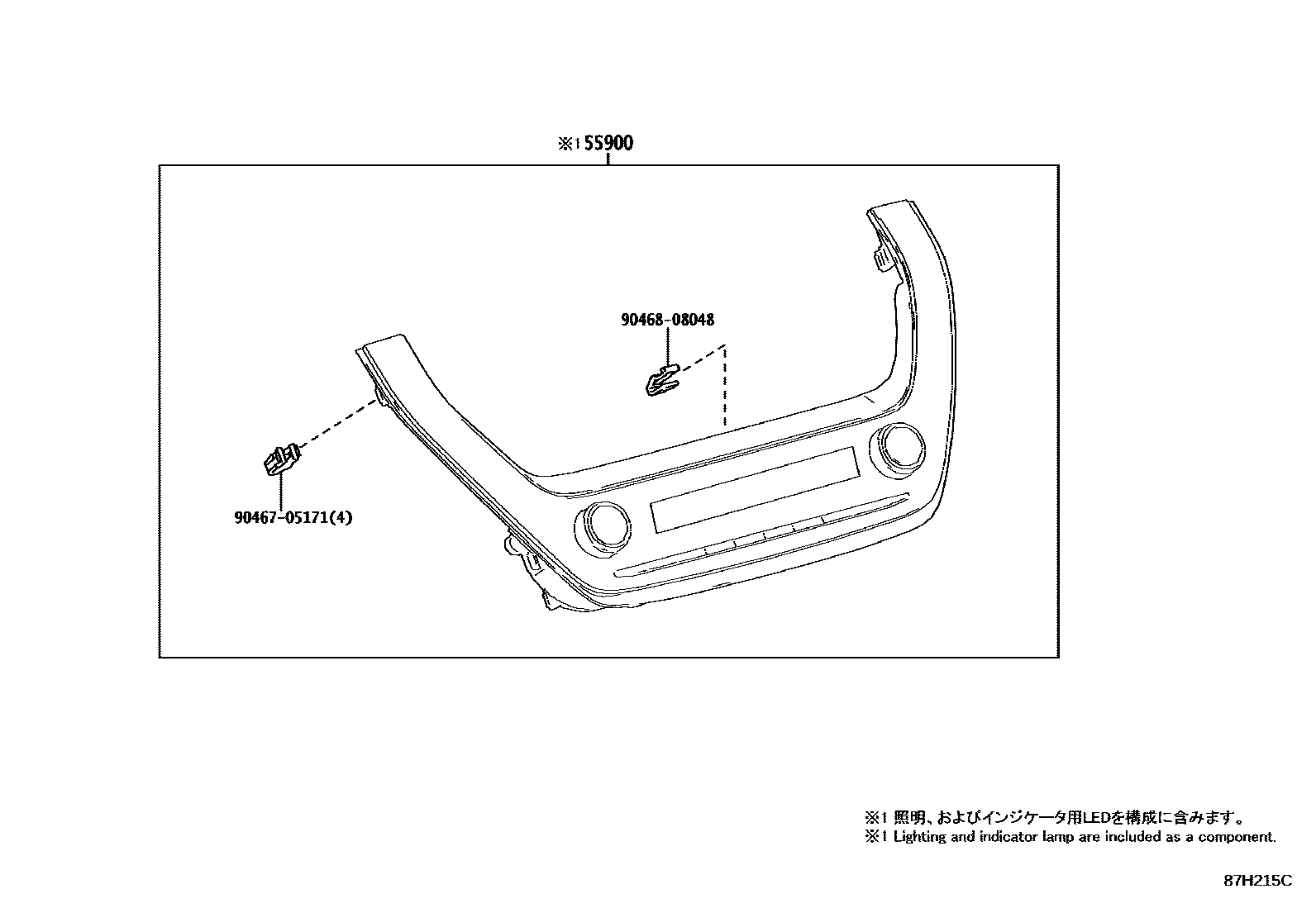

55900CONTROL ASSY, AIR CONDITIONER

main55900-12F80-B0iMZEA12..CVT..D201806-202209

SILVER,TRIM2#

main55900-12G20-B0iNRE210201806-202209

SILVER,TRIM2#,3#

main55900-12G30-B0iZWE211201806

SILVER,TRIM2#,3#

main55900-12G50-B0iMZEA12..TAIW201806-202209

SILVER,TRIM2#,3#

main55900-12L90-B0iMZEA12..D202209-202305

SILVER,TRIM2#

sub55900-12L91

main55900-12L91-B0iMZEA12..D202306-202508

SILVER,TRIM2#

main55900-12M20-B0iZWE219..SA202209-202301

SILVER,TRIM2#

sub55900-12M21

main55900-12M20-B0iZWE219..SA202209-202301

SILVER,TRIM2#,3#

sub55900-12M21

main55900-12M21-B0iMZEA12..N..ARL202302-202508

SILVER,TRIM2#

main55900-12M21-B0iZWE219..ARL202302

SILVER,TRIM2#,3#

main55900-12M50-B0iMZEA12..TAIW202209-202305

SILVER,TRIM2#,3#

sub55900-12M51

main55900-12M51-B0iMZEA12..TAIW202306

SILVER,TRIM2#,3#

9046705171

main90467-05171

9046808048

main90468-08048

3 parts on this diagram · 5 diagrams in section
