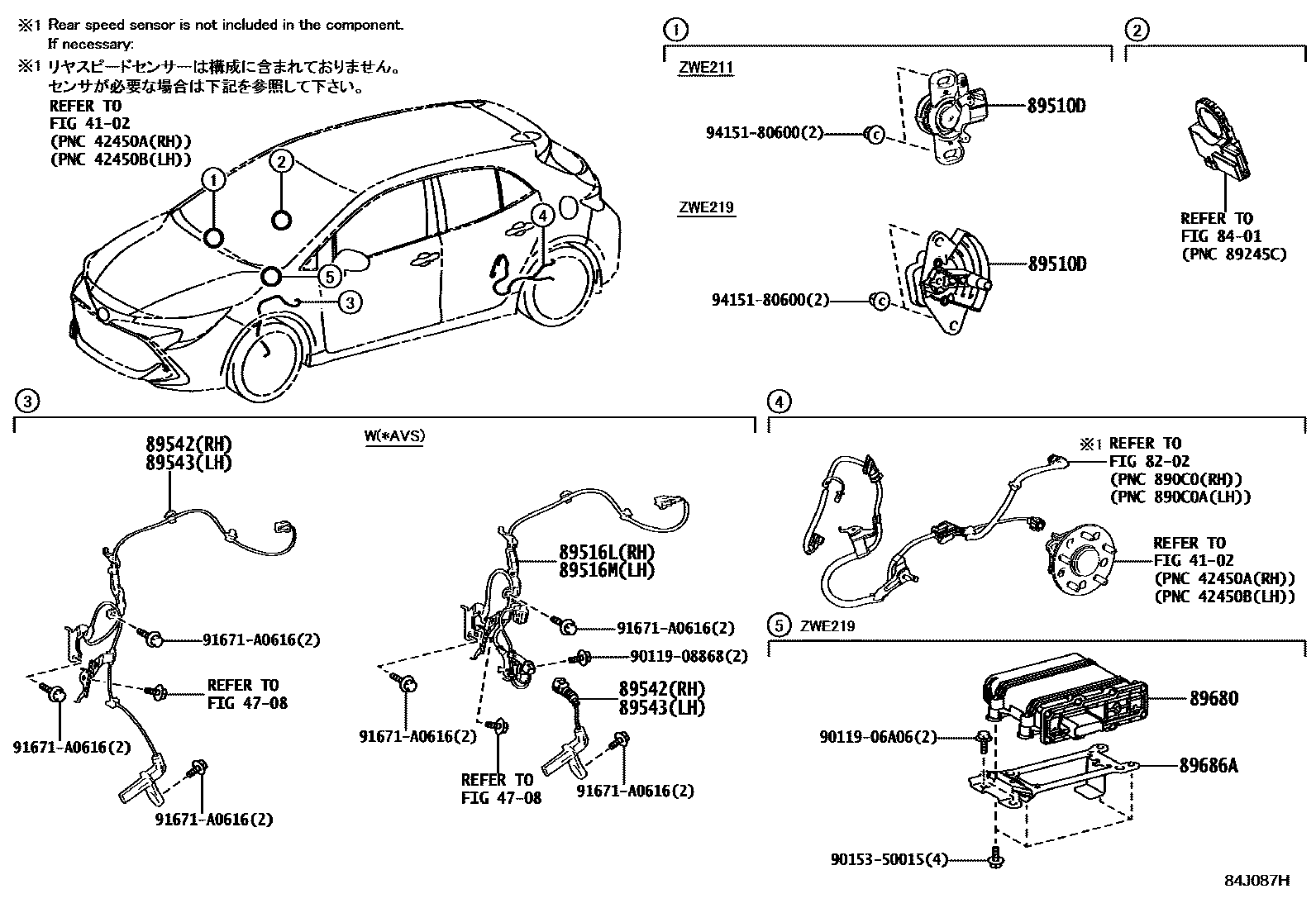

ABS & VSC

4102

4708

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iZWE211201806

main89510-K0020iZWE219202209-202306

main89510-K0021iZWE219202306

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-12090iMZEA12..TAIW202107-202209

*AVS-WITH

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-12200iMZEA12..TAIW202107-202209

*AVS-WITH

89542SENSOR, SPEED, FRONT RH

main89542-12110iMZEA12..CVT201806-202209

main89542-12140iMZEA12..TAIW202209-202404

*AVS-WITH

89543SENSOR, SPEED, FRONT LH

main89543-12110iMZEA12..CVT201806-202209

main89543-12140iMZEA12..TAIW202107-202209

*AVS-WITH

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iZWE219202209

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-12010iZWE219202209

9011906A06

main90119-06A06

9011908868

main90119-08868

9015350015

main90153-50015

91671A0616

main91671-A0616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
