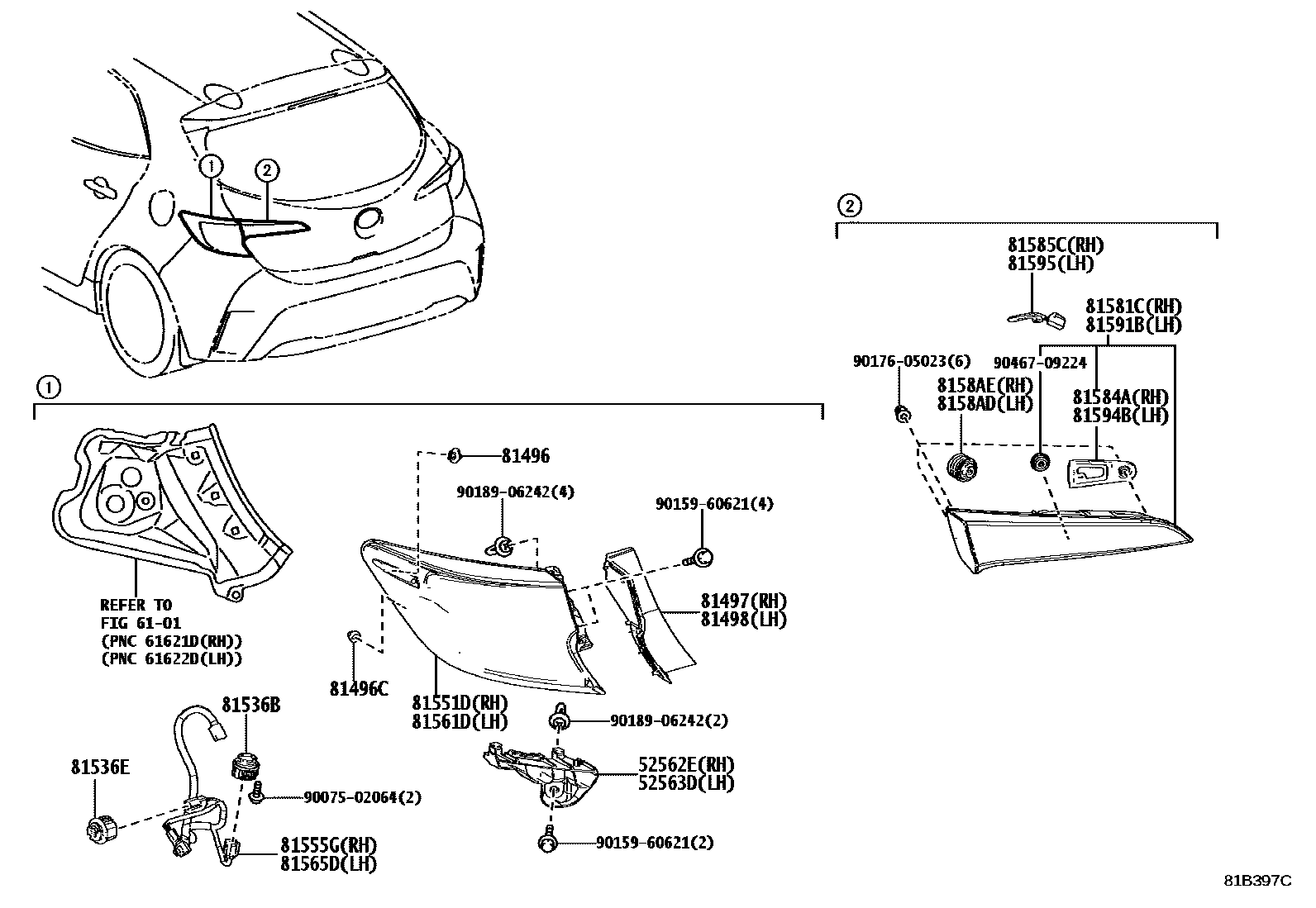

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-12240iMZEA12..6F;NRE210,ZWE211201806-202508

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-12240iMZEA12..CVT201806-202508

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-50010iMZEA12..CVT201806-202508

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iMZEA12..CVT201806-202508

81497COVER, REAR COMBINATION LAMP, RH

main81497-12020iMZEA12..CVT201806-202508

81498COVER, REAR COMBINATION LAMP, LH

main81498-12020iMZEA12..CVT201806-202508

81536BLED, REAR TURN SIGNAL LAMP

main81536-12D20iMZEA12,NRE210,ZWE211201806-202508

81536ELED, STOP LAMP

main81536-15120iMZEA12,NRE210,ZWE211201806

main81965-70010iMZEA12..ARL202209-202508

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12D20iMZEA12,NRE210,ZWE211201806-201809

sub81551-12D21

main81551-12D21iMZEA12..CVT201809-202209

main81551-12E40iMZEA12..ARL202209-202508

81555GCORD, REAR COMBINATION LAMP, RH

main81555-12D20iMZEA12,NRE210,ZWE211201806-202508

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12D20iMZEA12,NRE210,ZWE211201806-201809

sub81561-12D21

main81561-12D21iMZEA12..CVT201809-202209

main81561-12E40iMZEA12..ARL202209-202508

81565DCORD, REAR COMBINATION LAMP, LH

main81565-12D20iMZEA12..6F;NRE210,ZWE211201806-202508

81581CLENS AND BODY, REAR LAMP, RH

main81581-12260iMZEA12..TAIW201806-201808

sub81581-12261

main81581-12261iMZEA12..TAIW201808-202209

main81581-12270iMZEA12,NRE210,ZWE211..RHD201806-201808

sub81581-12271

main81581-12271iMZEA12..6F;NRE210,ZWE211201808-202209

main81581-12440iMZEA12..TAIW202209

main81581-12450iMZEA12..ARL202209-202508

81584AGASKET, REAR LAMP RH

main81582-12260iMZEA12..ARL201806-202508

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12260iMZEA12..TAIW201806-202209

main81585-12270iZWE219201806-202508

8158ADLED, REAR FOG LAMP

main8158A-0D610iMZEA12,NRE210,ZWE211201806-202508

8158AELED, BACK-UP LAMP

main8158A-12260iMZEA12..ARL201806-202508

81591BLENS AND BODY, REAR LAMP, LH

main81591-12230iMZEA12,NRE210,ZWE211..RHD201806-201808

sub81591-12231

main81591-12231iMZEA12..6F;NRE210,ZWE211201808-202209

main81591-12260iMZEA12..TAIW201806-201809

sub81591-12261

main81591-12261iMZEA12..TAIW201809-202209

main81591-12440iMZEA12..ARL202209-202508

main81591-12450iMZEA12..TAIW202209

81594BPACKING, REAR LAMP LH

main81582-12260iMZEA12..TAIW201806-202508

81595SOCKET & WIRE, REAR LAMP, LH

main81585-12260iMZEA12..6F;NRE210,ZWE211201806-202508

main81585-12270iMZEA12..TAIW201806-202209

9007502064

main90075-02064

9015960621

main90159-60621

9017605023

main90176-05023

9018906242

main90189-06242

9046709224

main90467-09224

26 parts on this diagram · 2 diagrams in section
