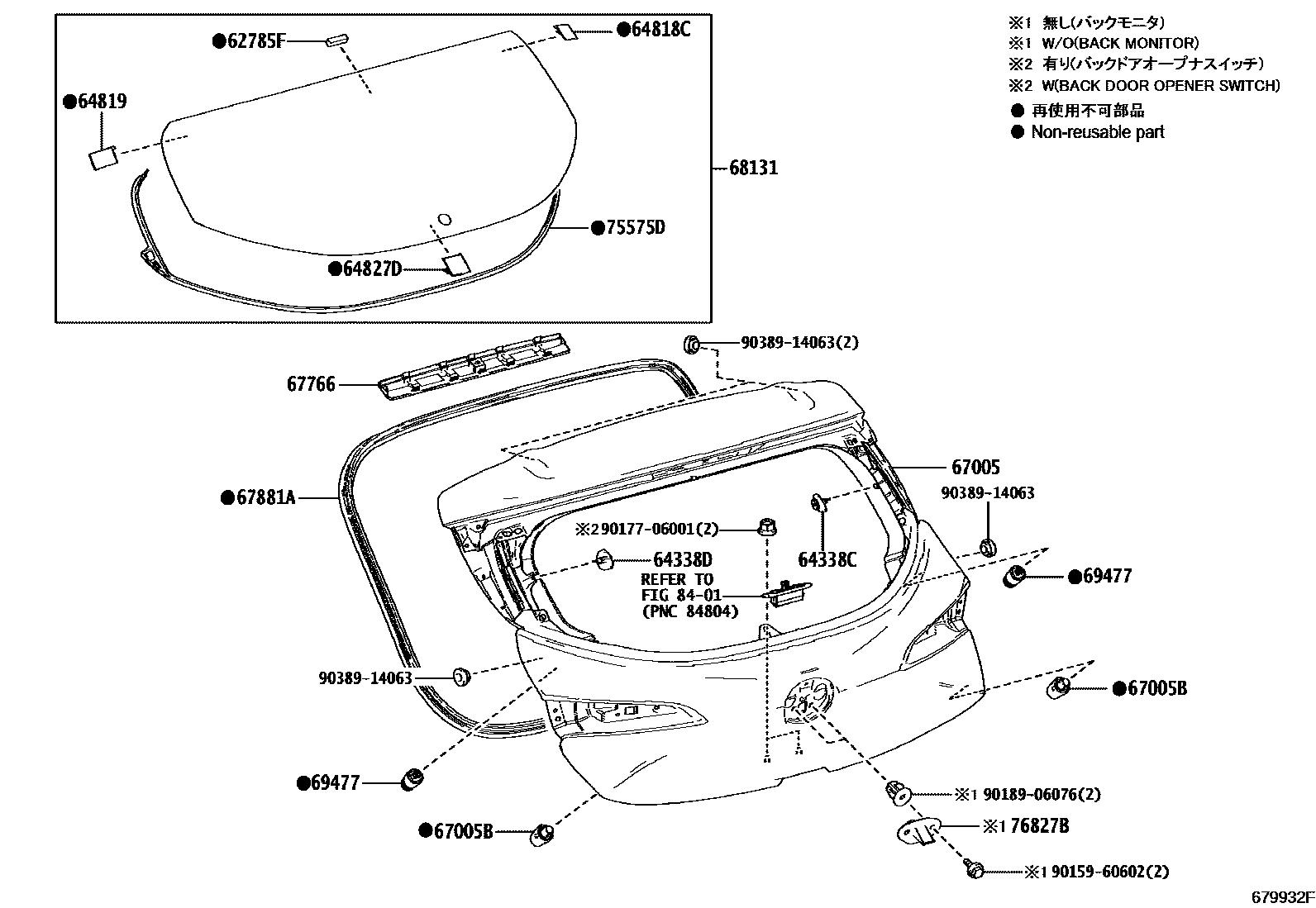

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64338CHOOK, PACKAGE TRAY TRIM GARNISH, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
64338DHOOK, PACKAGE TRAY TRIM GARNISH, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
64818CSPACER, BACK WINDOW GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67766COVER, BACK DOOR SERVICE HOLE, NO.2
BLACK,TRIM2#,3#
BLACK,TRIM2#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
BACK GLASS-UV GREEN
BACK GLASS-PRIVACY
Z PACKAGE
BACK GLASS-PRIVACY
69477CUSHION, BACK DOOR UPPER STOPPER
75575DMOULDING, BACK WINDOW, LOWER
76827BRETAINER, BACK DOOR GARNISH, NO.2
8401
9015960602
9017706001
9018906076
9038914063
19 parts on this diagram · 2 diagrams in section
