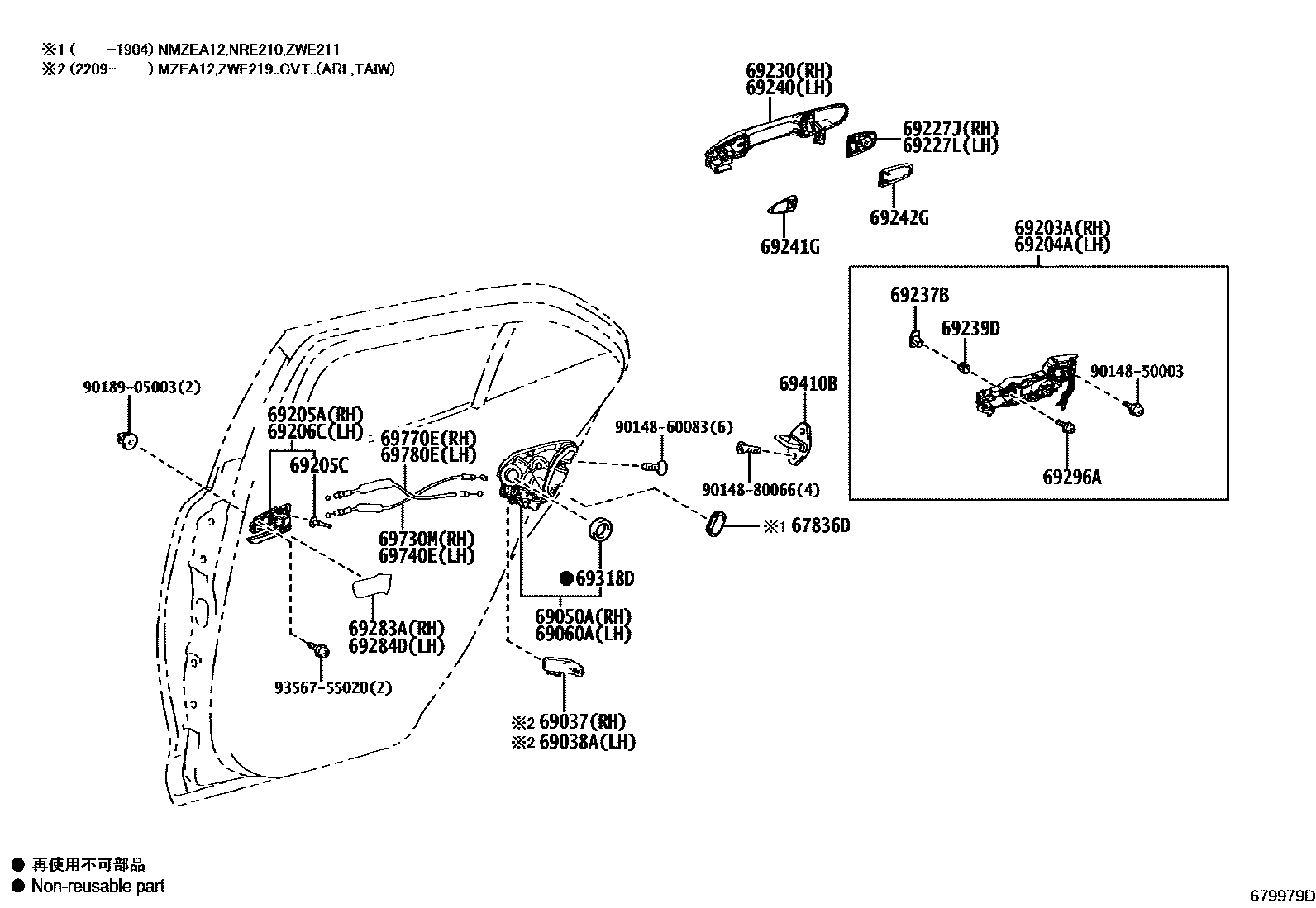

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
SOUTH AFRICA SPEC
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
SOUTH AFRICA SPEC
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#,3#
SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#
X PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#,3#
SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
X PACKAGE,BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,040 ,1F7 ,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
DK.BLUE M.M.,2RC ,8W7
CYAN METALLIC,2UH ,8W9
ORANGE M.M.,4Y8
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,040 ,1F7 ,218
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
DK.BLUE M.M.,2RC ,8W7
CYAN METALLIC,2UH ,8W9
ORANGE M.M.,4Y8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
SOUTH AFRICA SPEC
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
SOUTH AFRICA SPEC
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
SOUTH AFRICA SPEC
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
SOUTH AFRICA SPEC
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
