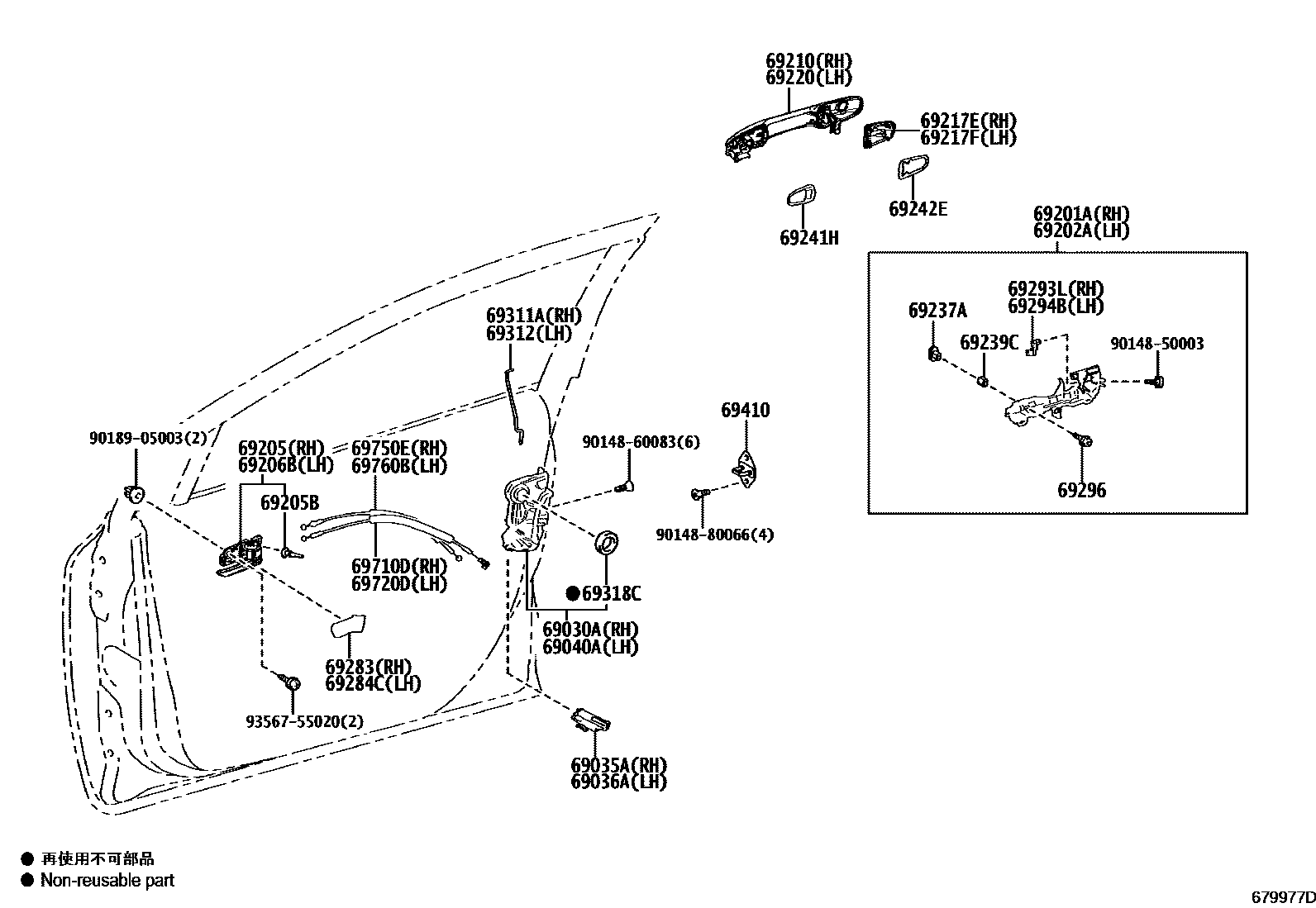

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,3#
X PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
X PACKAGE,BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,040 ,1F7 ,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),SCARLET ME.,2UG ,3U4
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
GRAY ME.,1G3 ,2QZ
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
GRAY ME.,1G3 ,2QZ
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
WHITE PEARL CS.,070 ,2QJ
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
DK.BLUE M.M.,2RC ,8W7
CYAN METALLIC,2UH ,8W9
ORANGE M.M.,4Y8
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
SUPER WHITE 2,040
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,040 ,1F7 ,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER),OXIDE BRONZE ME.,2UD ,6X1
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
GRAY ME.,1G3 ,2QZ
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
GRAY ME.,1G3 ,2QZ
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
DK.BLUE M.M.,2RC ,8W7
CYAN METALLIC,2UH ,8W9
ORANGE M.M.,4Y8
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
9014880066
9018905003
9356755020
35 parts on this diagram · 1 diagram in section
