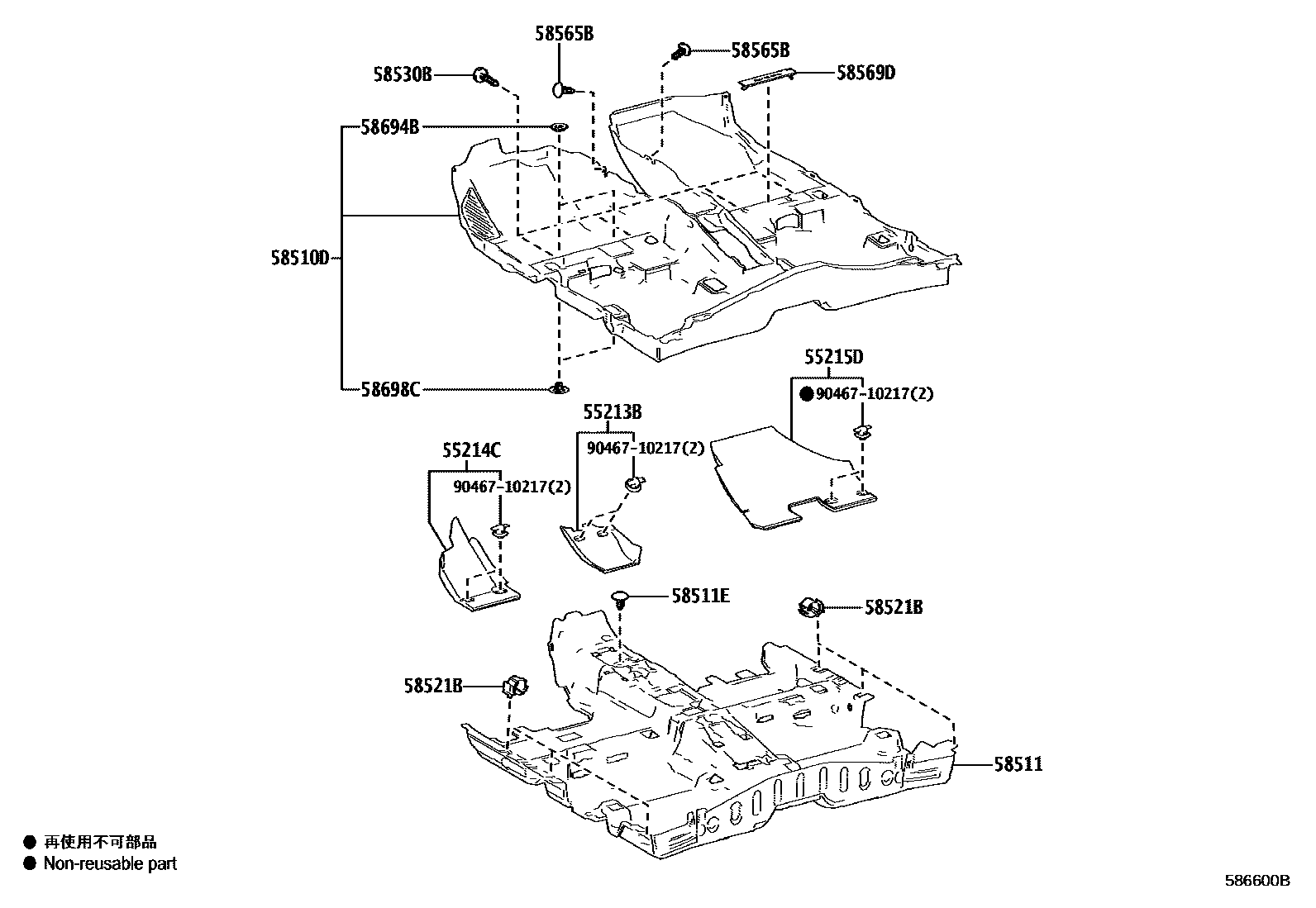

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58565BCLIP
58569DCOVER, FRONT FLOOR CAUTION PLATE
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710217
13 parts on this diagram · 4 diagrams in section
